Pramet RDET 0802MOSN:M8340 6800839 Milling Insert - Copy And Profile
MODEL 6800839
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$9.87 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M8340
Coating process
PVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.079
Depth of cut maximum - millimeter (APMX)
2
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
0.2
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.008
Feed_MIN_IMP_NUM
0.004

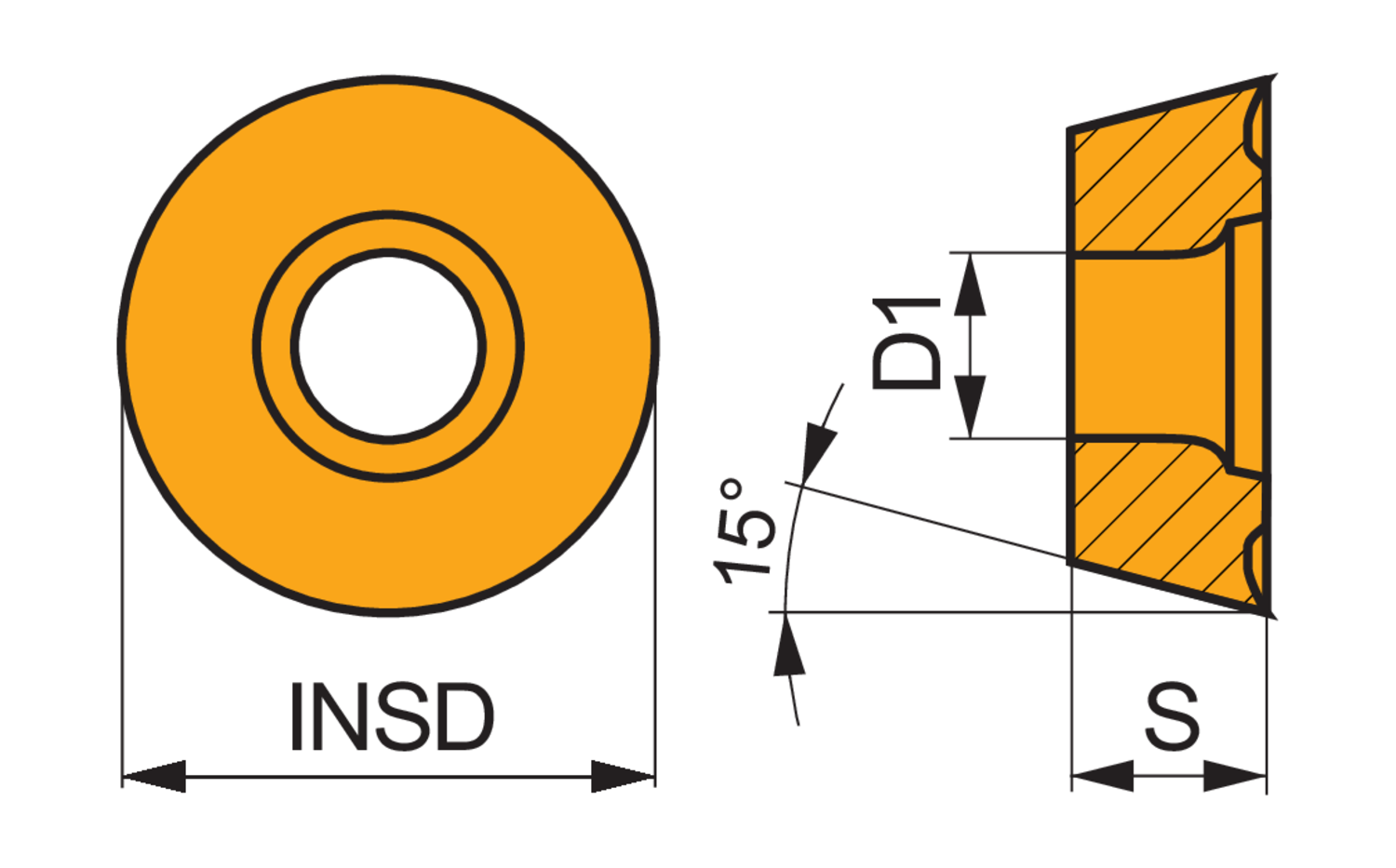

Fixing hole diameter - inch (D1)
0.134
Fixing hole diameter - millimeter (D1)
3.4
Insert diameter - inch (INSD)
0.315
Insert diameter - millimeter (INSD)
8
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.094
Insert thickness - millimeter (S)
2.38
Single-sided milling insert RDET 0802 with chip-breakers, round for a maximum depth of cut of 2.0mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel
