Pramet RDGT 1604MOT:M8345 6755964 Milling Insert - Copy And Profile
MODEL 6755964
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$15.51 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M8345
Coating process
PVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.157
Depth of cut maximum - millimeter (APMX)
4
Depth of cut minimum - inch (APMN)
0.039
Depth of cut minimum - millimeter (APMN)
1
Feed maximal - millimeter
0.4
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.016
Feed_MIN_IMP_NUM
0.004

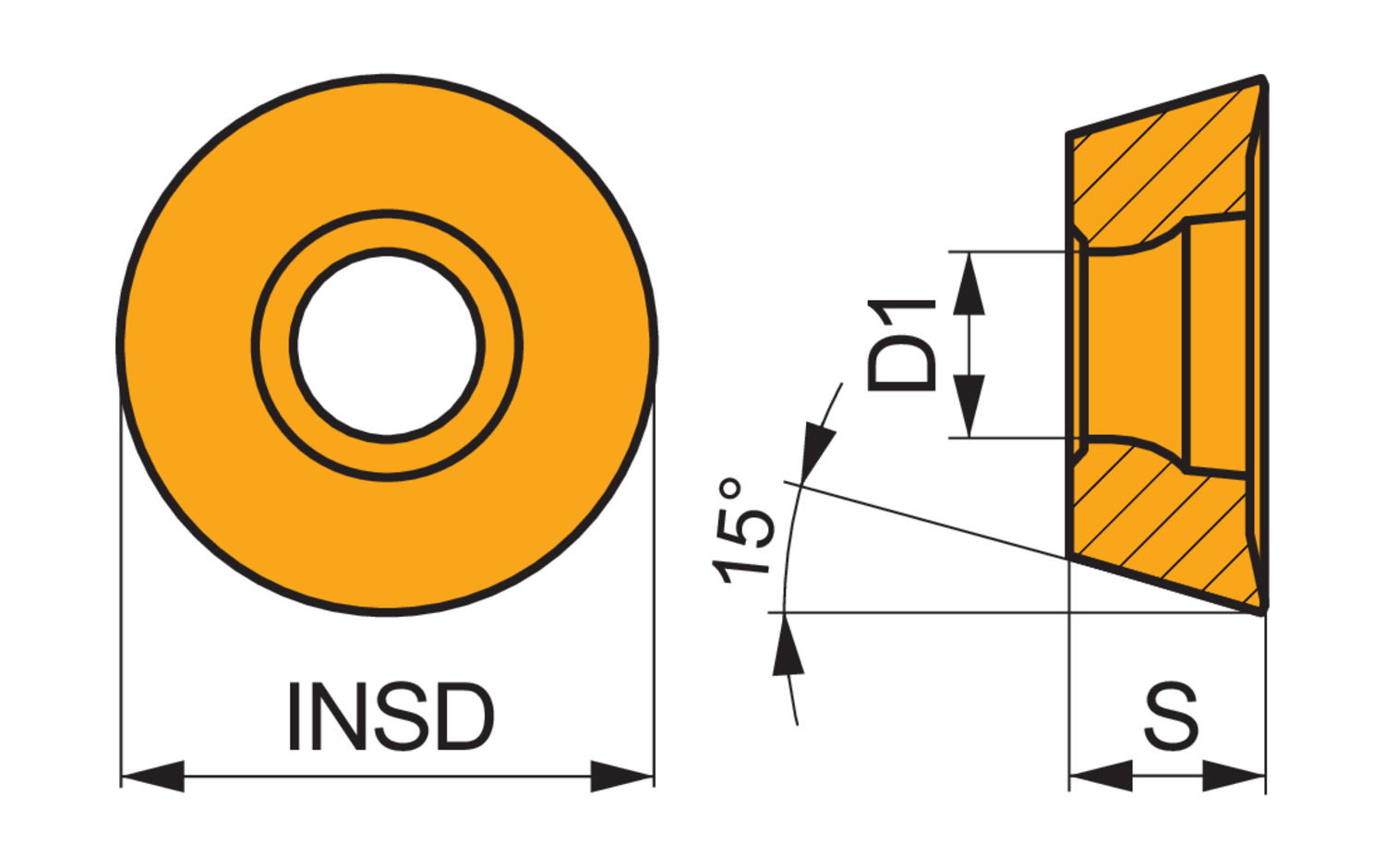

Fixing hole diameter - inch (D1)
0.205
Fixing hole diameter - millimeter (D1)
5.2
Insert diameter - inch (INSD)
0.63
Insert diameter - millimeter (INSD)
16
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Single-sided milling insert RDGT 1604 with chip-breakers, round for a maximum depth of cut of 4.0mm, with an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with copy face mills SRD16
