Image for Illustration purposes only. Actual product may vary
Pramet RDHX 0501MOE:M8310 6756281 Milling Insert - Copy and Profile
MODEL RDHX 0501MOE:M8310
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$10.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Still Deciding?
Add this item to your saved items and easily come back later.

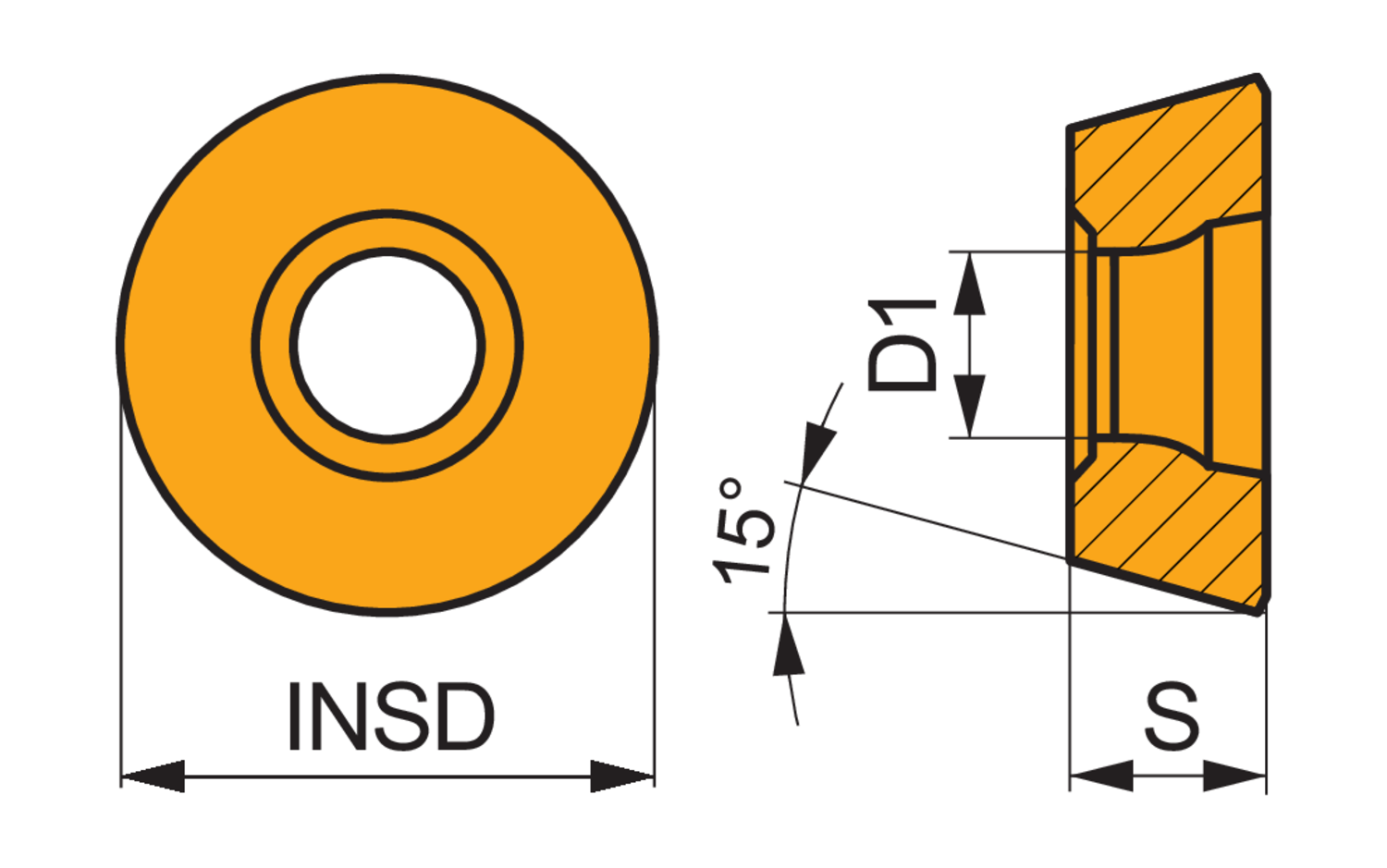

Insert diameter - millimeter (INSD)
5
Fixing hole diameter - inch (D1)
0.087
Chipbreaker
No chipbreaker
Coating process
PVD
Feed maximal - millimeter
0.15
Insert thickness - inch (S)
0.059
Coating
M8310
Depth of cut minimum - inch (APMN)
0.012
Feed_MIN_IMP_NUM
0.002
Coating property (CTP)
1
Fixing hole diameter - millimeter (D1)
2.2
Insert diameter - inch (INSD)
0.197
Depth of cut maximum - millimeter (APMX)
1.5
Feed_MAX_IMP_NUM
0.006
Depth of cut maximum - inch (APMX)
0.059
Feed minimal - millimeter
0.05
Cooling effect
Slightly negative effect on tool life
Depth of cut minimum - millimeter (APMN)
0.3
Insert thickness - millimeter (S)
1.51
Single-sided milling insert RDHX 0501, round for a maximum depth of cut of 1.5mm, with an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01-K10 and H05-H15 for machining of cast-iron and hardened material with copy face mills SRD05
