Pramet RDMX 1604MOT:M8310 6801044 Milling Insert - Copy And Profile
MODEL 6801044
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$13.79 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M8310
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.157
Depth of cut maximum - millimeter (APMX)
4
Depth of cut minimum - inch (APMN)
0.039
Depth of cut minimum - millimeter (APMN)
1
Feed maximal - millimeter
0.4
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.016
Feed_MIN_IMP_NUM
0.008

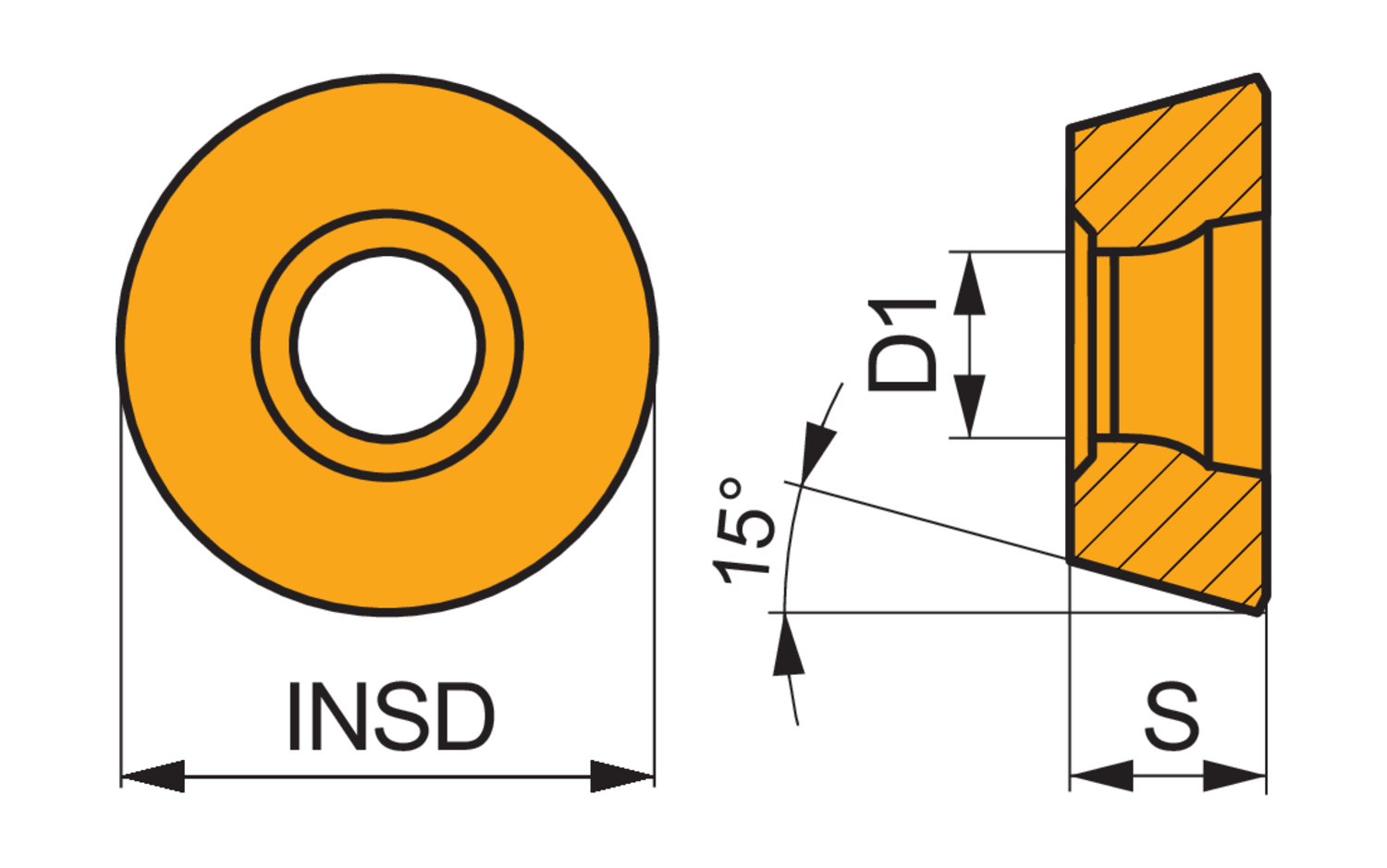

Fixing hole diameter - inch (D1)
0.205
Fixing hole diameter - millimeter (D1)
5.2
Insert diameter - inch (INSD)
0.63
Insert diameter - millimeter (INSD)
16
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Single-sided milling insert RDMX 1604, round for a maximum depth of cut of 4.0mm, with an indexing accuracy according to ISO-tolerance class-M with cutting edges with facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01-K10 and H05-H15 for machining of cast-iron and hardened material with copy face mills SRD16
| Brand | Pramet |
| Model | 6800853 |
