Pramet XDHW 070210SN:M8310 6756268 Milling Insert - Copy And Profile
MODEL 6756268
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$10.62 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M8310
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

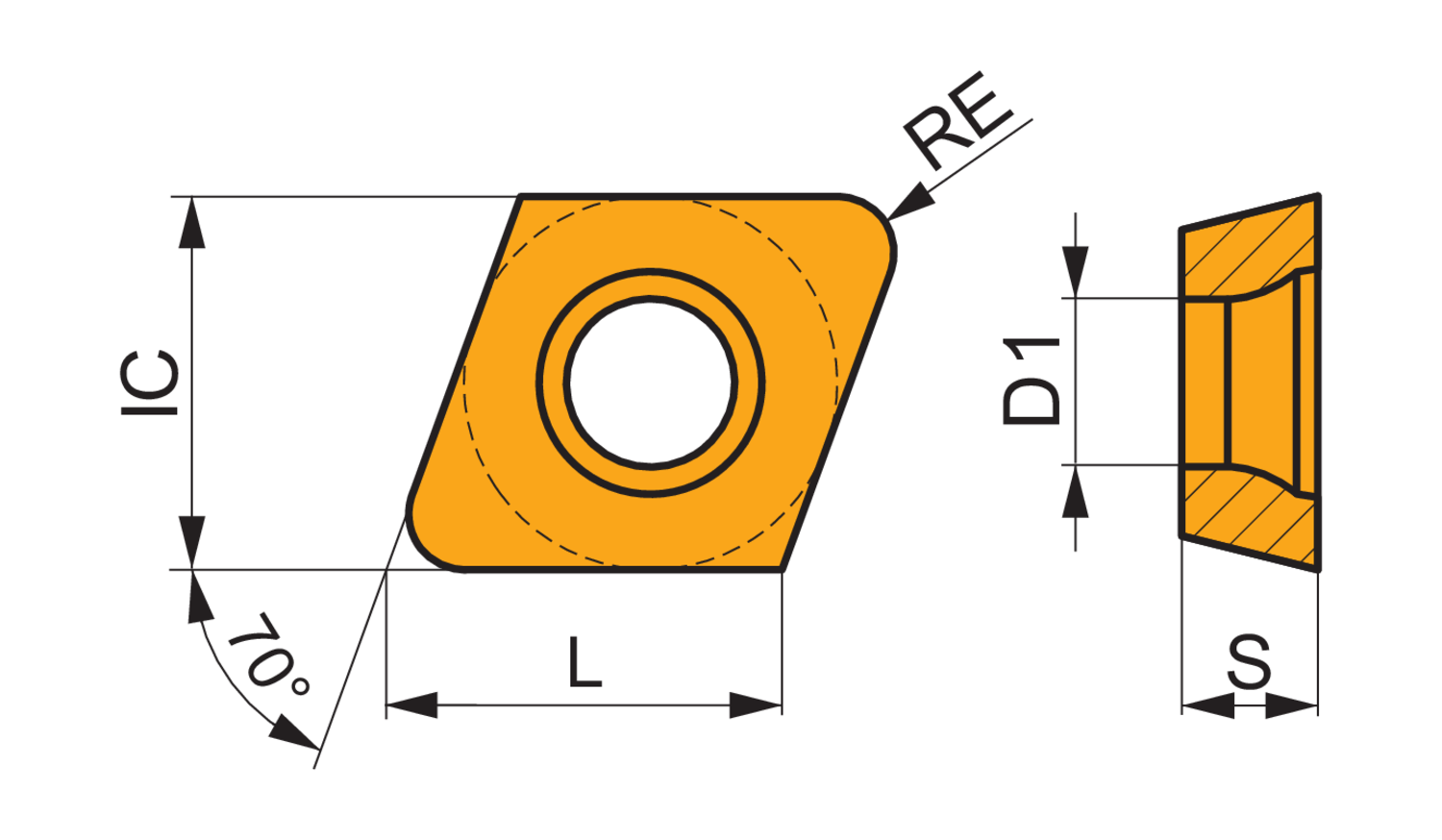

Corner radius - inch (RE)
0.039
Corner radius - millimeter (RE)
1
Cutting edge length - inch (L)
0.272
Cutting edge length - millimeter (L)
6.9
Depth of cut maximum - inch (APMX)
0.039
Depth of cut maximum - millimeter (APMX)
1
Depth of cut minimum - inch (APMN)
0.008
Depth of cut minimum - millimeter (APMN)
0.2
Feed maximal - millimeter
0.22
Feed minimal - millimeter
0.05
Feed_MAX_IMP_NUM
0.009
Feed_MIN_IMP_NUM
0.002
Fixing hole diameter - inch (D1)
0.116
Fixing hole diameter - millimeter (D1)
2.95
Inscribed circle diameter - inch (IC)
0.256
Inscribed circle diameter - millimeter (IC)
6.5
Insert shape code (SC)
X - Special design
Insert thickness - inch (S)
0.094
Insert thickness - millimeter (S)
2.38
Single-sided milling insert XDHW 0702 with a plane rake surface, 70° rhomboid for a maximum depth of cut of 1.0mm, with 1.0mm corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01-K10 and H05-H15 for machining of cast-iron and hardened material
