Pramet RDHT 1604MO-FA:HF7 6751853 Milling Insert - Copy And Profile
MODEL 6751853
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$16.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FA
Coating
HF7
Depth of cut maximum - inch (APMX)
0.157
Depth of cut maximum - millimeter (APMX)
4
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.4
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.016
Feed_MIN_IMP_NUM
0.004

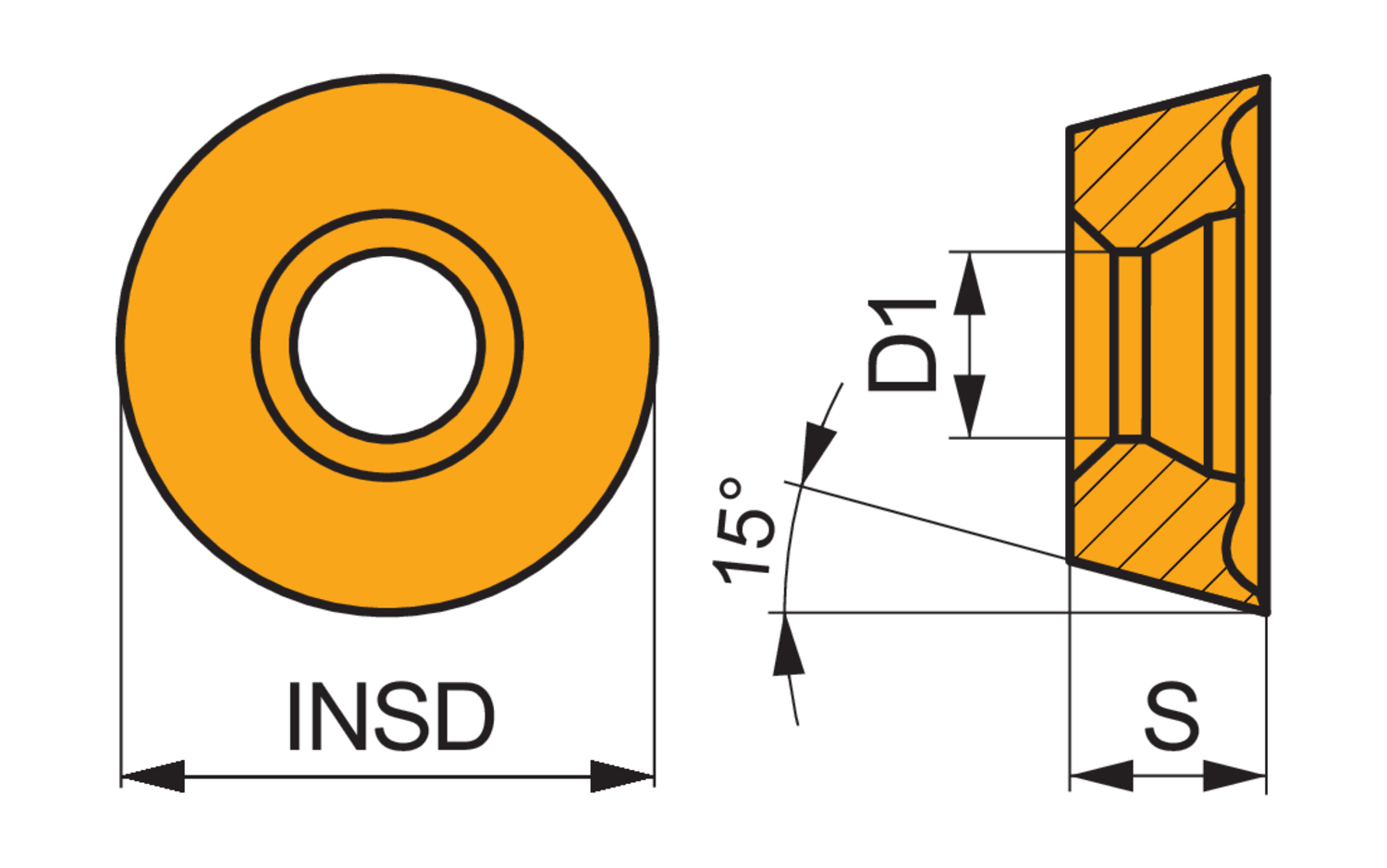

Fixing hole diameter - inch (D1)
0.205
Fixing hole diameter - millimeter (D1)
5.2
Insert diameter - inch (INSD)
0.63
Insert diameter - millimeter (INSD)
16
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Single-sided milling insert RDHT 1604 with chip-breakers, round for a maximum depth of cut of 4.0mm, with an indexing accuracy according to ISO-tolerance class-H and FA geometry, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with copy face mills SRD16
