Pramet ADEX 070206SR-HF:M8330 7606875 Milling Insert - High Feed
MODEL 7606875
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$14.06 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
HF
Coating
M8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

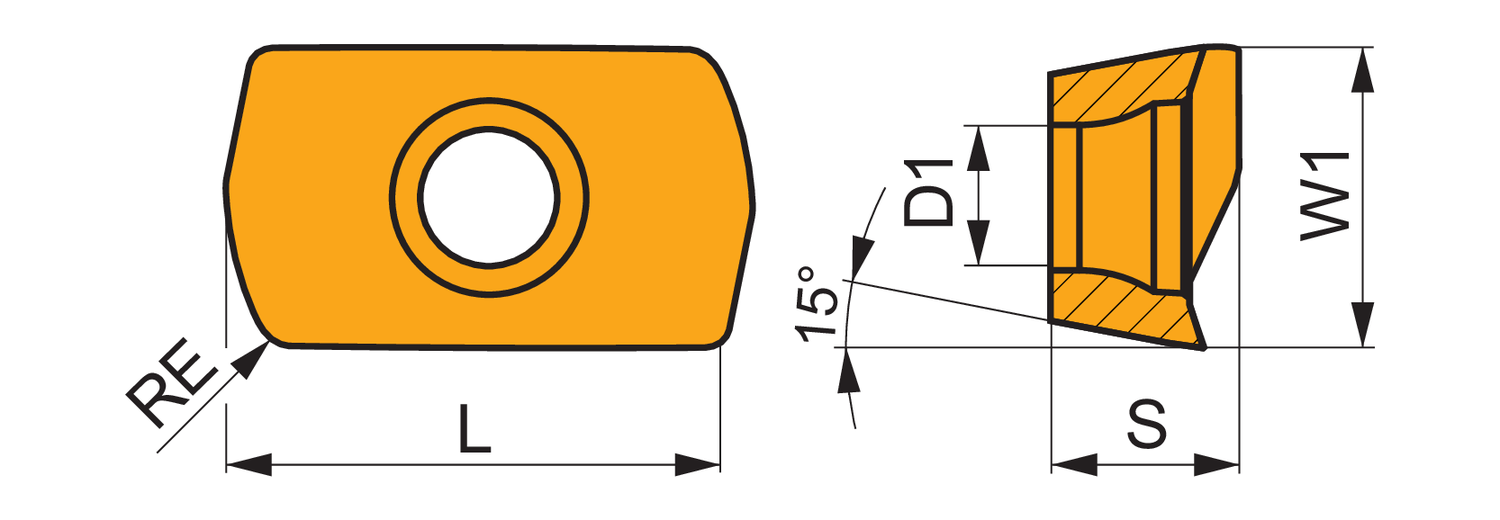

Corner radius - inch (RE)
0.024
Corner radius - millimeter (RE)
0.6
Cutting edge length - inch (L)
0.254
Cutting edge length - millimeter (L)
6.45
Depth of cut maximum - inch (APMX)
0.012
Depth of cut maximum - millimeter (APMX)
0.3
Feed maximal - millimeter
0.9
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.035
Feed_MIN_IMP_NUM
0.008
Fixing hole diameter - inch (D1)
0.087
Fixing hole diameter - millimeter (D1)
2.2
Insert shape code (SC)
A - parallelogram 85° included angle
Insert thickness - inch (S)
0.098
Insert thickness - millimeter (S)
2.48
Insert width - inch (W1)
0.175
Insert width - millimeter (W1)
4.439
Single-sided milling insert ADEX 0702, 85° parallelogram and high-feed design for a maximum depth of cut of 0.3mm, with 0.6mm corner radius, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills SAD07D
