Pramet ADMX 11T308PR-R:8215 6753385 Milling Insert - Square Shoulder
MODEL 6753385
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$15.51 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Coating
0.01
Coating process
0.006
Coating property (CTP)
1
Cooling effect
R

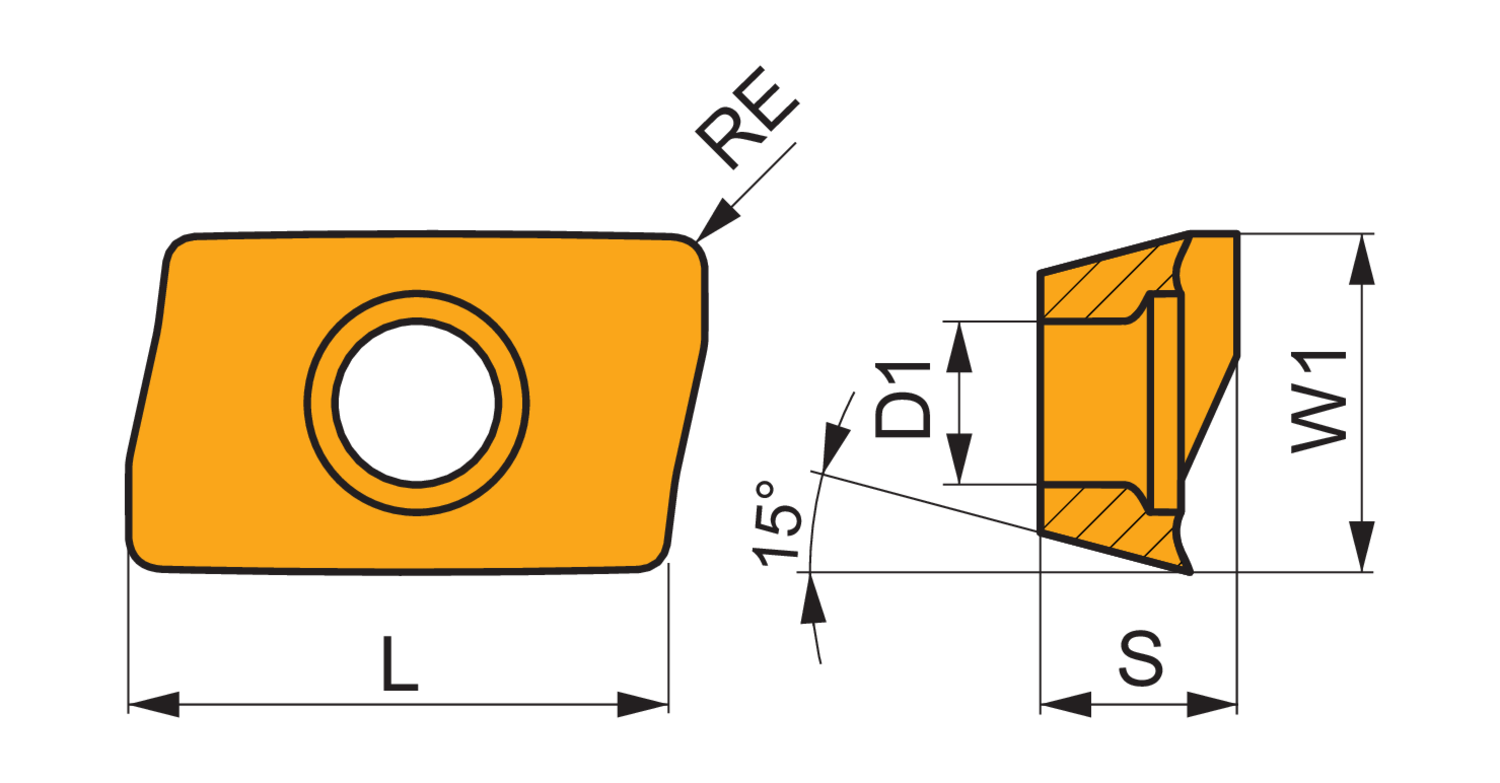

Corner radius - inch (RE)
8215
Corner radius - millimeter (RE)
PVD
Cutting edge length - inch (L)
0.433
Cutting edge length - millimeter (L)
11
Depth of cut maximum - inch (APMX)
0.354
Depth of cut maximum - millimeter (APMX)
9
Feed maximal - millimeter
0.25
Feed minimal - millimeter
0.15
Feed_MAX_IMP_NUM
0.031
Feed_MIN_IMP_NUM
0.8
Fixing hole diameter - inch (D1)
0.114
Fixing hole diameter - millimeter (D1)
2.9
Insert cutting diameter - millimeter (CDI)
3.97
Insert diameter - inch (INSD)
0.257
Insert diameter - millimeter (INSD)
6.53
Insert shape code (SC)
A - parallelogram 85° included angle
Insert thickness - inch (S)
0.8
Insert thickness - millimeter (S)
3.97
Insert width - inch (W1)
0.257
Insert width - millimeter (W1)
6.53
Major cutting edge angle (KRINS)
0.031
Wiper edge length - inch (BS)
Slightly negative effect on tool life
Single-sided milling insert ADMX 11T3, 85° parallelogram for a maximum depth of cut of 9.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and double facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10-P20 and K10-K25 for machining of steel and cast-iron with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E
