Pramet CCMX 08T308S-TS1:M8330 positive slotting disc mill insert — 80° rhombic, 7° clearance, 0.316 in (8.03 mm) IC, 0.173 in (4.4 mm) thick, 0.031 in (0.8 mm) corner radius, TS1 chipbreaker, M8330 PVD grade for steel and cast iron. Article 7447872.
MODEL 7447872
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$15.25 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
TS1
Coating
M8330
Coating process
PVD
Coating property (CTP)
1

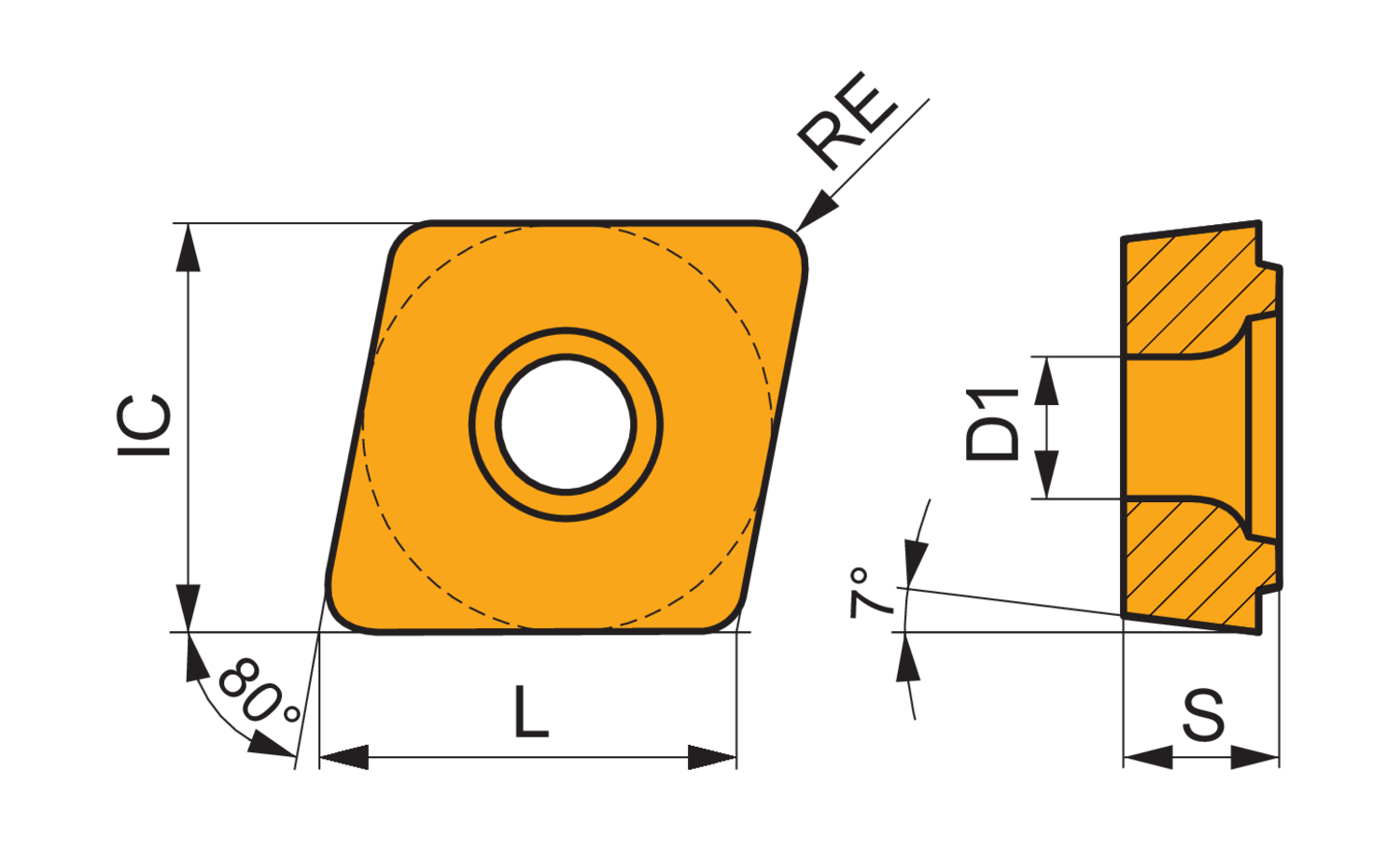

Corner radius - inch (RE)
0.031
Corner radius - millimeter (RE)
0.8
Cutting edge length - inch (L)
0.319
Cutting edge length - millimeter (L)
8.1
Feed maximal - millimeter
0.16
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.006
Feed_MIN_IMP_NUM
0.004
Fixing hole diameter - inch (D1)
0.138
Fixing hole diameter - millimeter (D1)
3.5
Inscribed circle diameter - inch (IC)
0.316
Inscribed circle diameter - millimeter (IC)
8.03
Insert shape code (SC)
C - rhombic 80° included angle
Insert thickness - inch (S)
0.173
Insert thickness - millimeter (S)
4.4
Single-sided milling insert CCMX 08T3, 80° rhomboid for a T-slot milling cutter of 32mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and TS1 geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with T-slot mill F-SCC
