Pramet CNHQ 1005AZTN:M8340 negative slotting disc mill insert — CNHQ 1005AZTN, 80° rhombic, 0.394 in (10 mm) IC, 0.213 in (5.4 mm) wide, M8340 PVD grade for steel. Article 6800827.
MODEL 6800827
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$28.38 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M8340
Coating process
PVD
Coating property (CTP)
1

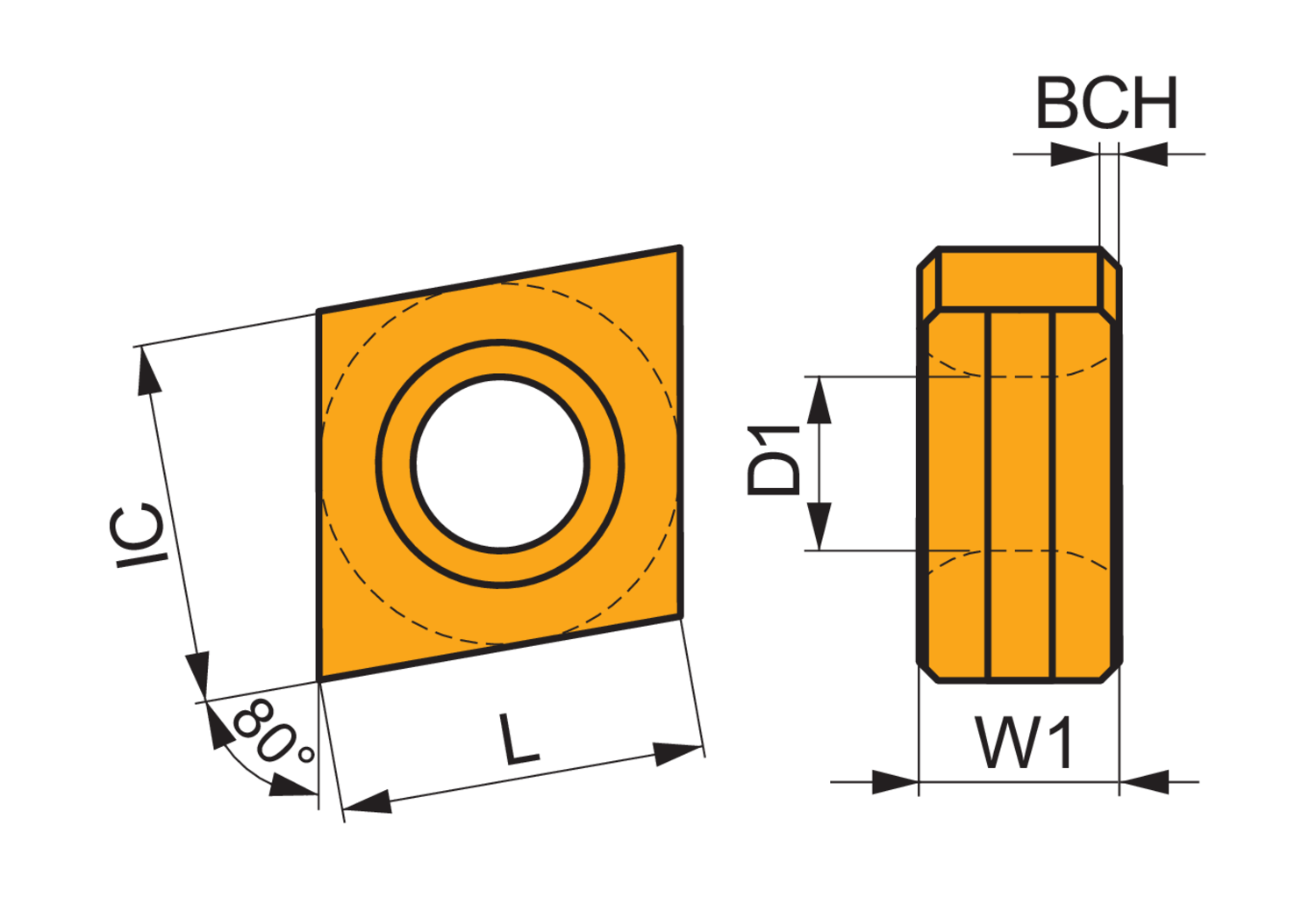

Corner chamfer length - millimeter (BCH)
0.5
Cutting edge length - inch (L)
0.394
Cutting edge length - millimeter (L)
10
Feed maximal - millimeter
0.5
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.02
Feed_MIN_IMP_NUM
0.004
Fixing hole diameter - inch (D1)
0.185
Fixing hole diameter - millimeter (D1)
4.7
Inscribed circle diameter - inch (IC)
0.394
Inscribed circle diameter - millimeter (IC)
10
Insert shape code (SC)
C - rhombic 80° included angle
Insert width - inch (W1)
0.213
Insert width - millimeter (W1)
5.4
Double-sided disc milling insert, for a cutting width of 14.0 to maximum 18.5mm with cutting edges with facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with disc mills S90CN(XN)
