Image for Illustration purposes only. Actual product may vary
Pramet LNET 160616SR-R:M8330 7447895 Milling Insert - Heavy Duty
MODEL 7447895
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$21.02 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
R
Coating
M8330
Coating property (CTP)
1

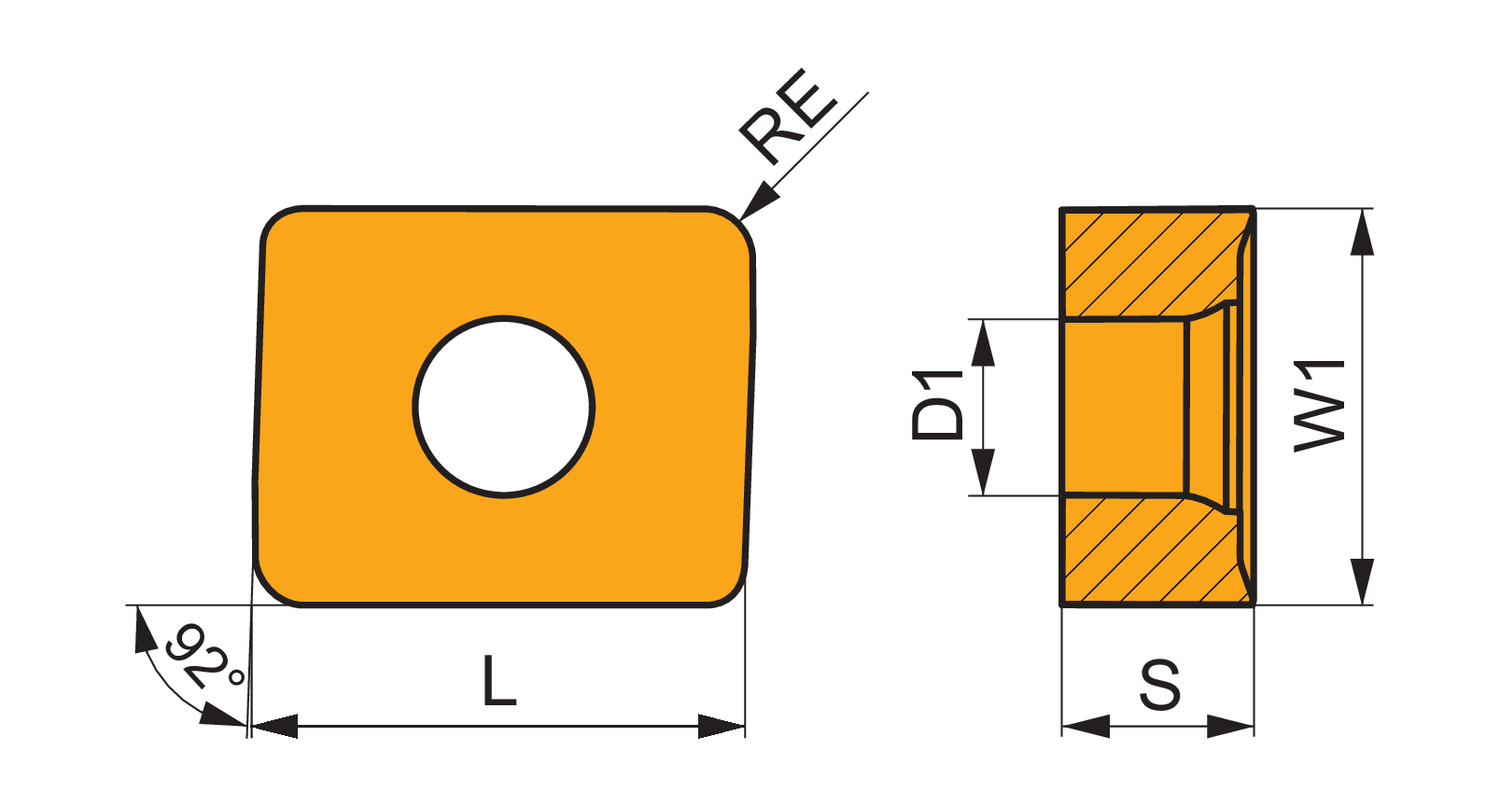

Corner radius - inch (RE)
0.063
Corner radius - millimeter (RE)
1.6
Cutting edge length - inch (L)
0.646
Cutting edge length - millimeter (L)
16.4
Depth of cut maximum - inch (APMX)
0.591
Depth of cut maximum - millimeter (APMX)
15
Feed maximal - millimeter
0.4
Feed minimal - millimeter
0.15
Fixing hole diameter - inch (D1)
0.232
Fixing hole diameter - millimeter (D1)
5.9
Insert shape code (SC)
L - rectangular
Insert thickness - inch (S)
0.251
Insert thickness - millimeter (S)
6.38
Insert width - inch (W1)
0.52
Insert width - millimeter (W1)
13.2
Single-sided milling insert LNET 1606 with chip-breakers, rectangular for a maximum depth of cut of 15.0mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-E and R geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with shoulder mills with extended flute J(T)-SLSN
