Pramet ODKT 0505ADSR-FM:M6330 7455503 Milling Insert - Face
MODEL 7455503
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$14.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FM
Coating
M6330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

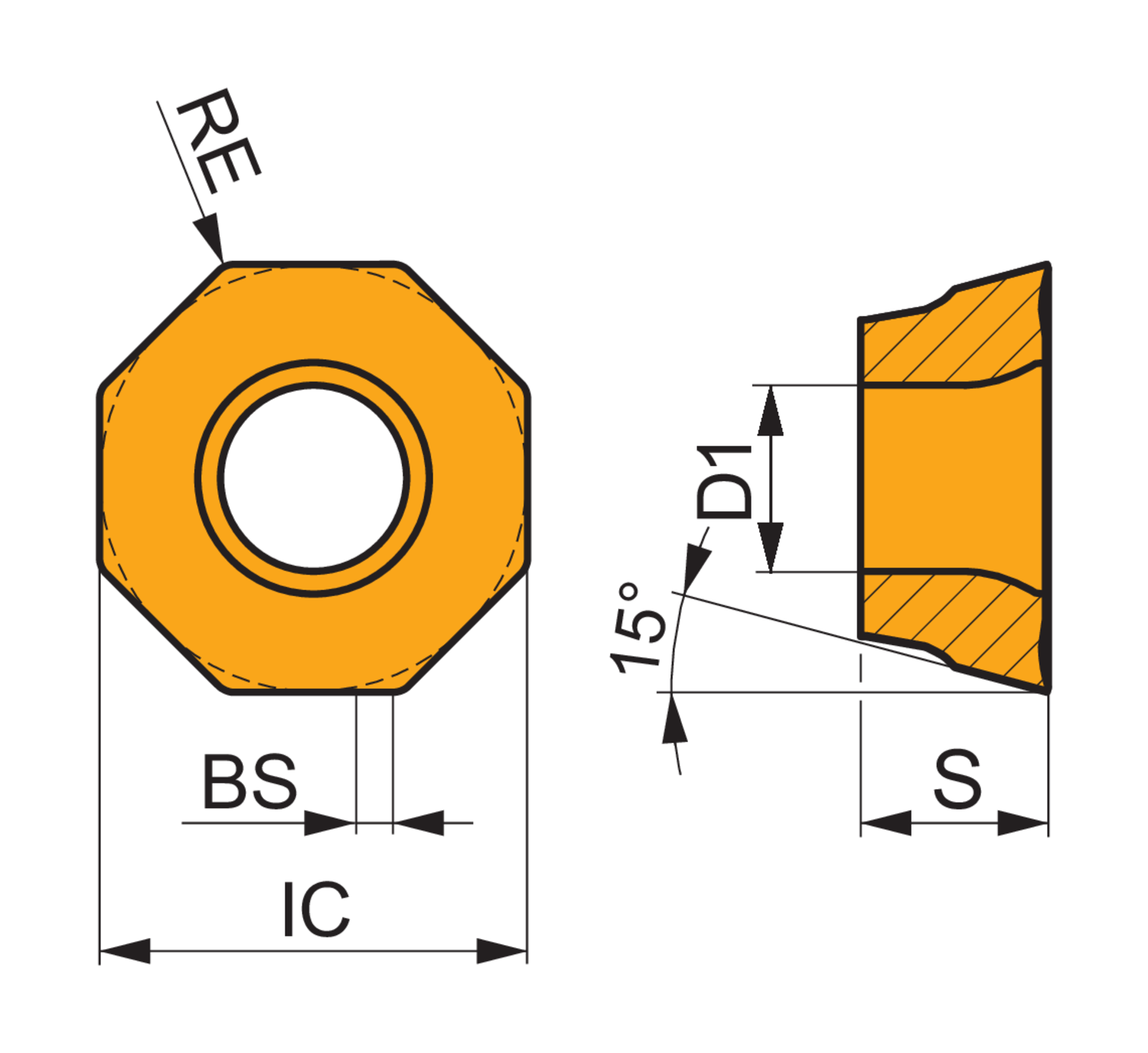

Corner radius - inch (RE)
0.031
Corner radius - millimeter (RE)
0.8
Depth of cut maximum - inch (APMX)
0.106
Depth of cut maximum - millimeter (APMX)
2.7
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.35
Feed minimal - millimeter
0.17
Feed_MAX_IMP_NUM
0.014
Feed_MIN_IMP_NUM
0.007
Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
O - octagonal
Insert thickness - inch (S)
0.219
Insert thickness - millimeter (S)
5.56
Wiper edge length - inch (BS)
0.039
Wiper edge length - millimeter (BS)
1
Single-sided milling insert ODKT 0505 with chip-breakers, octagonal for a maximum depth of cut of 2.7mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with copy face mills SOD05
