Image for Illustration purposes only. Actual product may vary
Pramet ODMT 050508SN-R:M8330 7447917 Milling Insert - Face
MODEL 7447917
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$13.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
R
Coating
M8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Corner radius - inch (RE)
0.031
Corner radius - millimeter (RE)
0.8
Depth of cut maximum - inch (APMX)
0.118
Depth of cut maximum - millimeter (APMX)
3
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.45
Feed minimal - millimeter
0.23
Feed_MAX_IMP_NUM
0.018
Feed_MIN_IMP_NUM
0.009

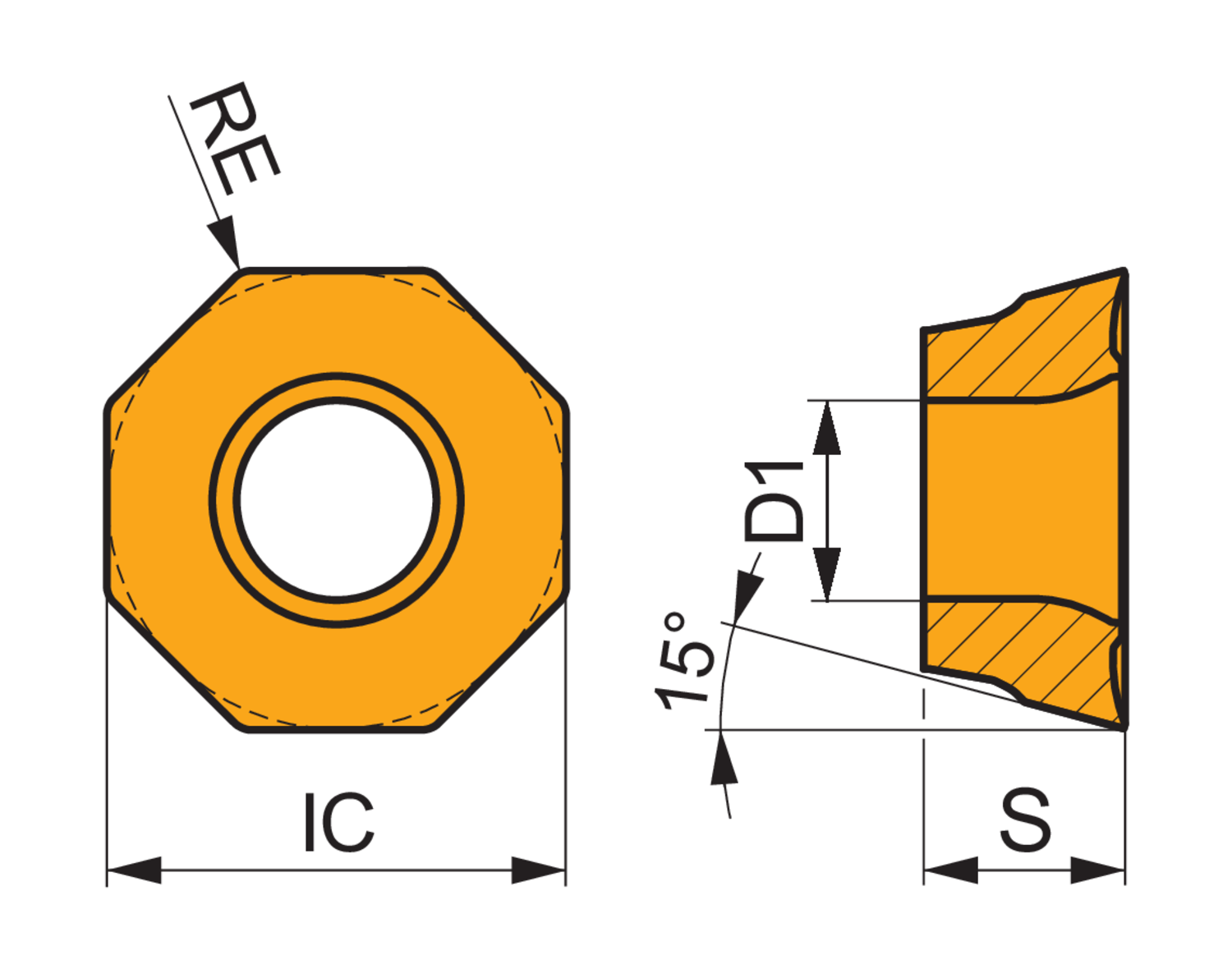

Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
O - octagonal
Insert thickness - inch (S)
0.219
Insert thickness - millimeter (S)
5.56
Single-sided milling insert ODMT 0505 with chip-breakers, octagonal for a maximum depth of cut of 3.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy face mills SOD05
