Pramet ODMT 0505ADSR-FM:M9340 7342899 Milling Insert - Face
MODEL 7342899
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$13.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FM
Coating
M9340
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very negative effect on tool life - cooling is not recommended

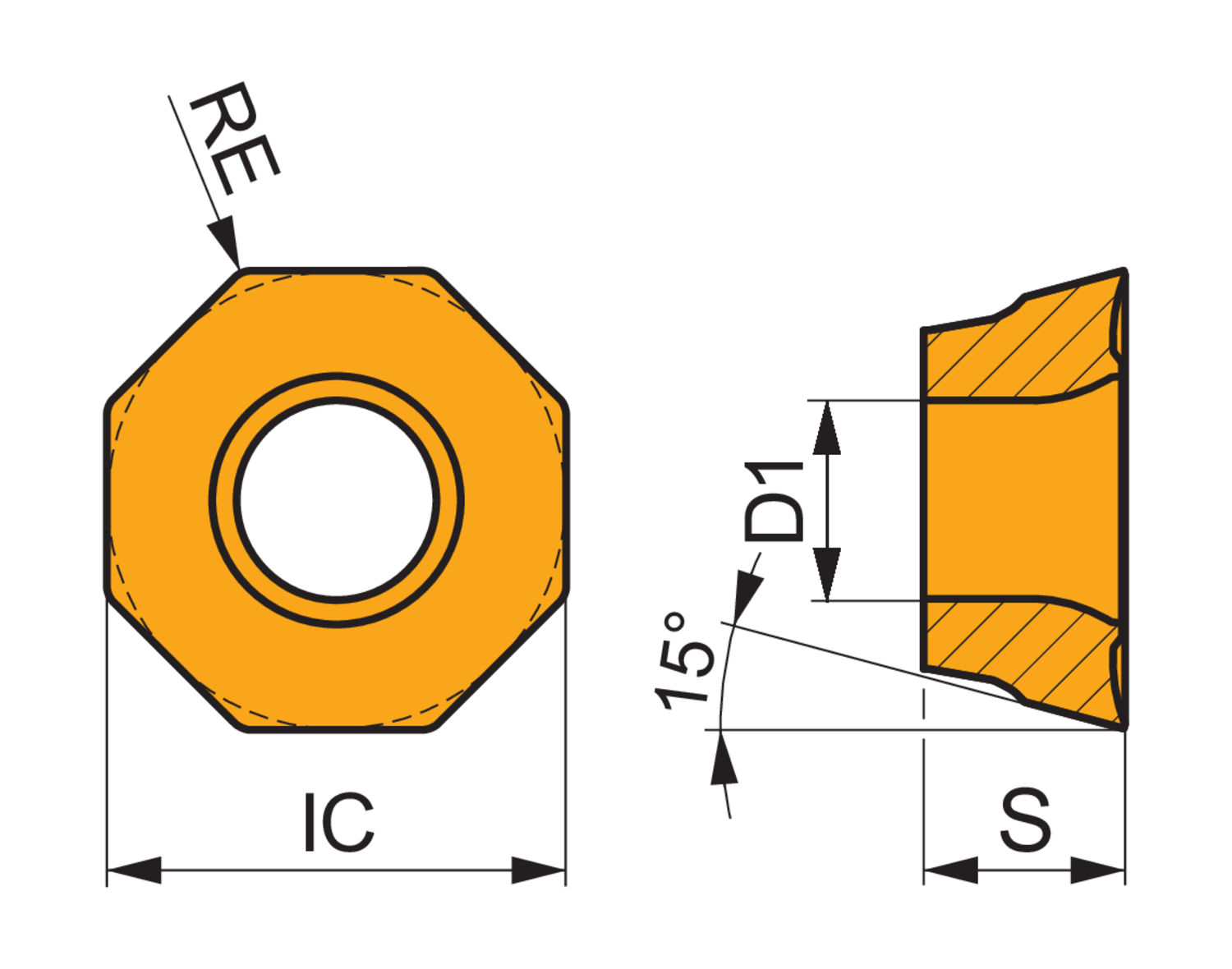

Corner radius - inch (RE)
0.031
Corner radius - millimeter (RE)
0.8
Depth of cut maximum - inch (APMX)
0.118
Depth of cut maximum - millimeter (APMX)
3
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.26
Feed minimal - millimeter
0.17
Feed_MAX_IMP_NUM
0.01
Feed_MIN_IMP_NUM
0.007
Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
O - octagonal
Insert thickness - inch (S)
0.219
Insert thickness - millimeter (S)
5.56
Single-sided milling insert ODMT 0505 with chip-breakers, octagonal for a maximum depth of cut of 3.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and FM geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide for machining with copy face mills SOD05
