Pramet ODMT 0605ZZN:M8340 6800837 Milling Insert - Face
MODEL 6800837
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$16.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M8340
Coating process
PVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.122
Depth of cut maximum - millimeter (APMX)
3.1
Depth of cut minimum - inch (APMN)
0.039
Depth of cut minimum - millimeter (APMN)
1
Feed maximal - millimeter
0.45
Feed minimal - millimeter
0.15
Feed_MAX_IMP_NUM
0.018
Feed_MIN_IMP_NUM
0.006

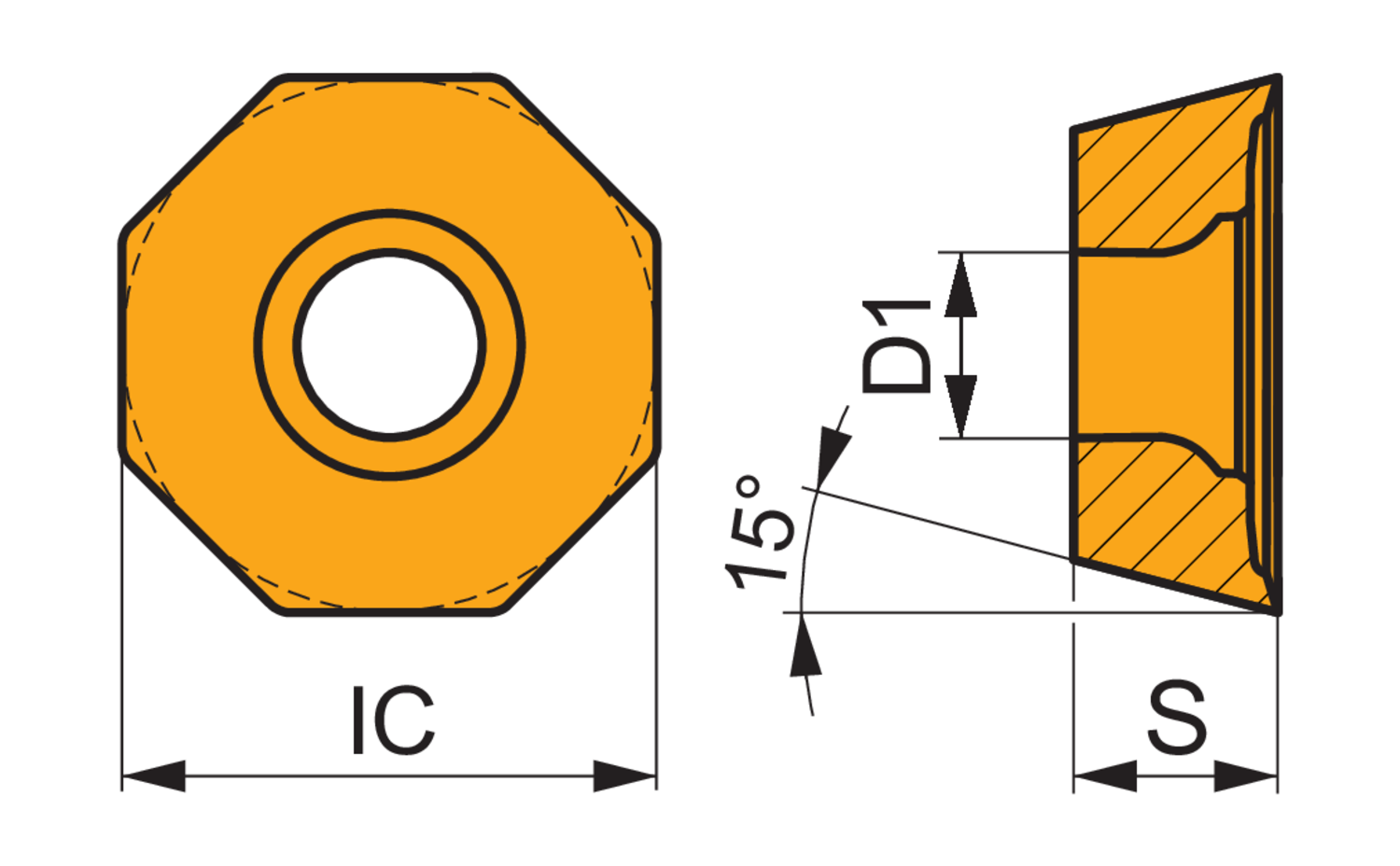

Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.625
Inscribed circle diameter - millimeter (IC)
15.875
Insert shape code (SC)
O - octagonal
Insert thickness - inch (S)
0.219
Insert thickness - millimeter (S)
5.56
Single-sided milling insert ODMT 0605 with chip-breakers, octagonal for a maximum depth of cut of 3.1mm, with an indexing accuracy according to ISO-tolerance class-M, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with face mills SOD06D
