Image for Illustration purposes only. Actual product may vary
Pramet SDMT 1205AESN-R:M8330 7447980 Milling Insert - Square Shoulder
MODEL 7447980
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$15.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Coating
0.018
Coating process
0.007
Coating property (CTP)
1
Cooling effect
R
Corner radius - inch (RE)
M8330
Corner radius - millimeter (RE)
PVD
Cutting edge effective length - inch (LE)
0.5
Cutting edge effective length - millimeter (LE)
12.7
Cutting edge length - inch (L)
0.5
Cutting edge length - millimeter (L)
12.7
Depth of cut maximum - inch (APMX)
0.394
Depth of cut maximum - millimeter (APMX)
10
Feed maximal - millimeter
0.45
Feed minimal - millimeter
0.17
Feed_MAX_IMP_NUM
0.012
Feed_MIN_IMP_NUM
0.3

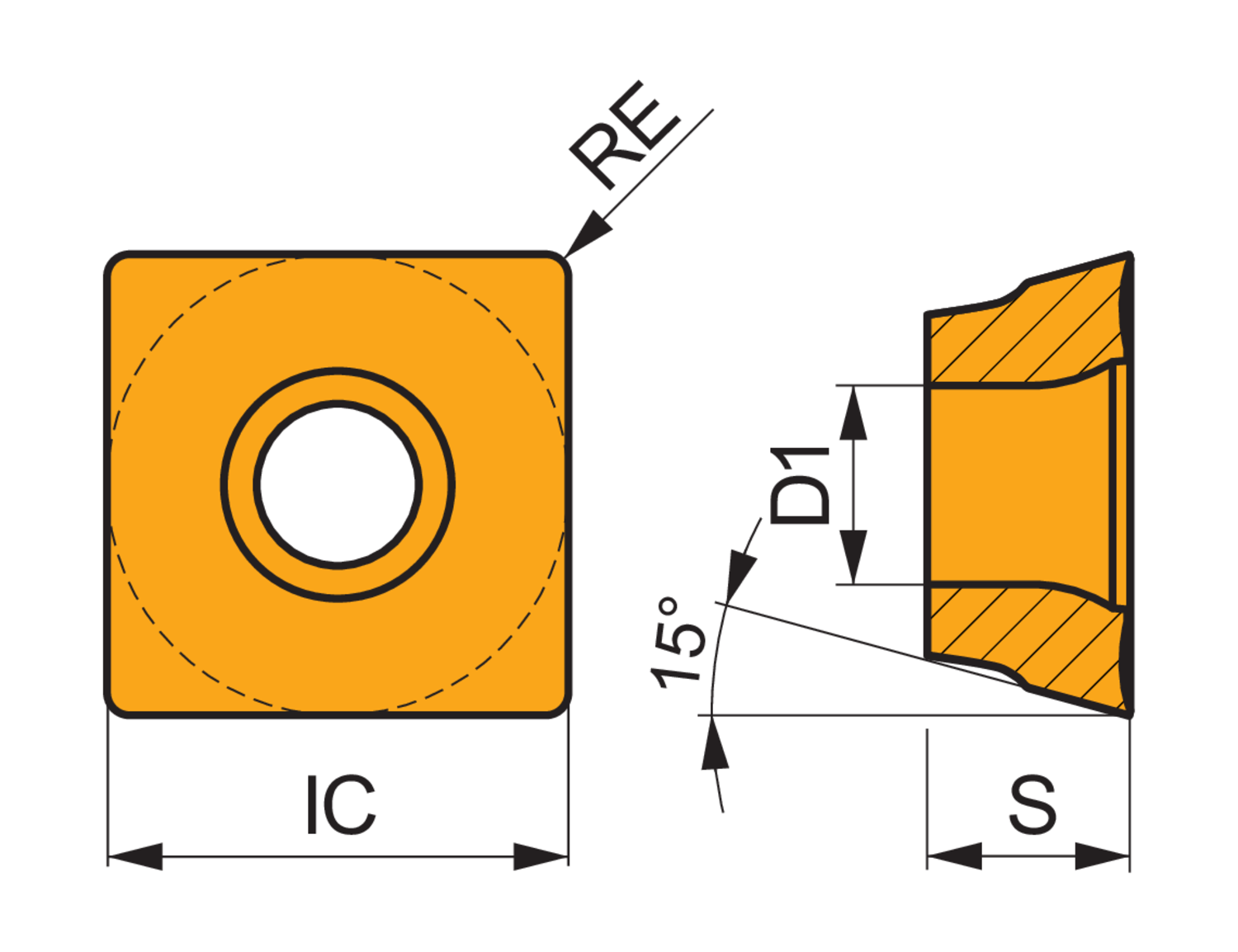

Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert cutting diameter - millimeter (CDI)
5.56
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.219
Insert thickness - millimeter (S)
5.56
Wiper edge length - inch (BS)
Slightly negative effect on tool life
Single-sided milling insert SDMT 1205 with chip-breakers, square for a maximum depth of cut of 10.0mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy face mills SOD05
