Pramet SEET 1204AFSN:M8330 7451005 Milling Insert - Face
MODEL 7451005
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Cutting edge length - inch (L)
0.5
Cutting edge length - millimeter (L)
12.7
Depth of cut maximum - inch (APMX)
0.256
Depth of cut maximum - millimeter (APMX)
6.5
Depth of cut minimum - inch (APMN)
0.039
Depth of cut minimum - millimeter (APMN)
1
Feed maximal - millimeter
0.4
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.016
Feed_MIN_IMP_NUM
0.008

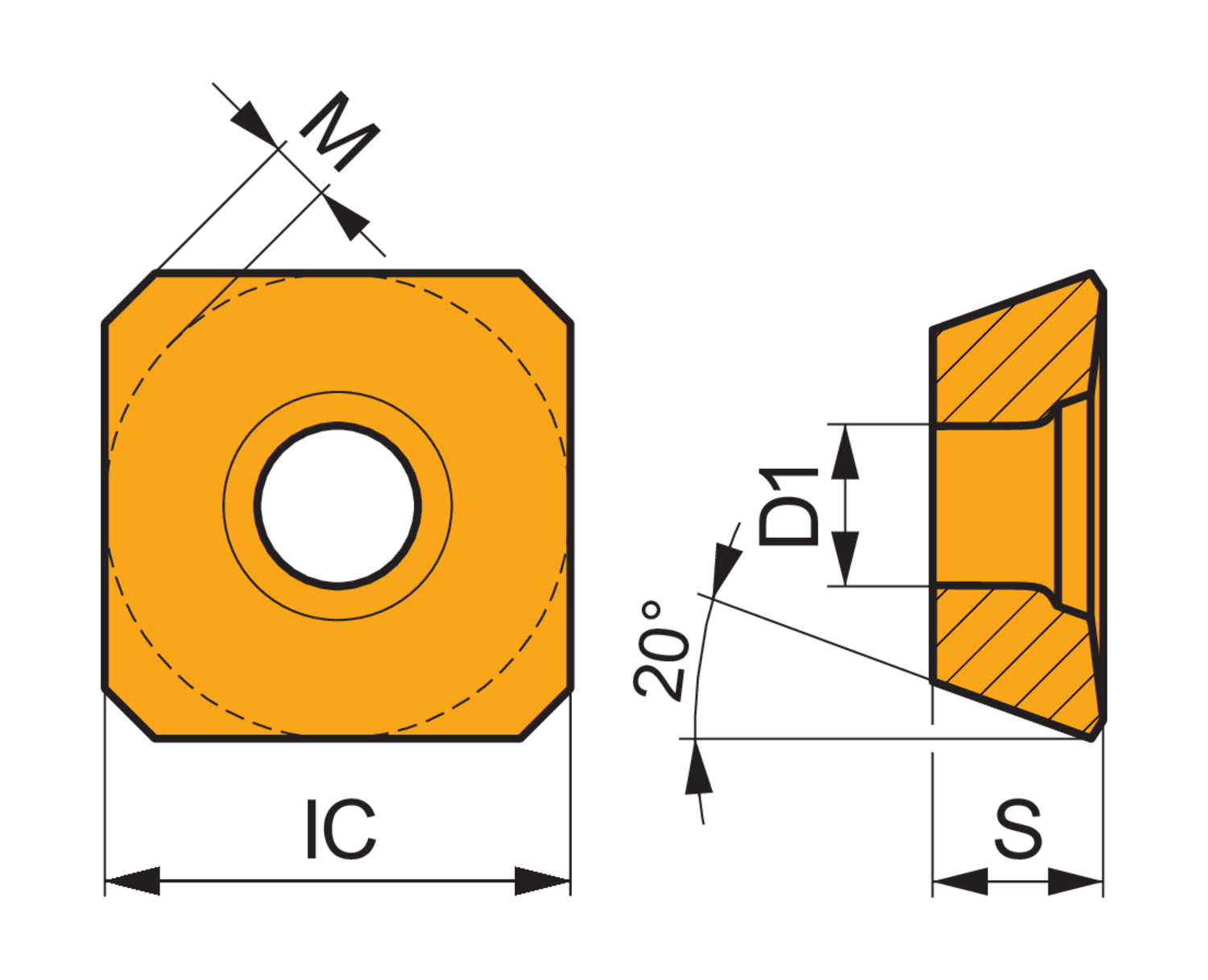

Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
m-dimension - inch (M)
0.063
m-dimension - millimeter (M)
1.6
Single-sided milling insert SEET 1204 with chip-breakers, square for a maximum depth of cut of 6.5mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel
