Pramet SNHQ 1204AZEN:8215 negative slotting disc mill insert — SNHQ 1204AZEN, 90° square, 0° clearance, 1/2 in (12.7 mm) IC, 0.177 in (4.5 mm) width, 8215 PVD grade for steel and cast iron. Article 6753413.
MODEL 6753413
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$23.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
8215
Coating process
PVD
Coating property (CTP)
1
Cutting edge length - inch (L)
0.5
Cutting edge length - millimeter (L)
12.7
Feed maximal - millimeter
0.5
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.02
Feed_MIN_IMP_NUM
0.008

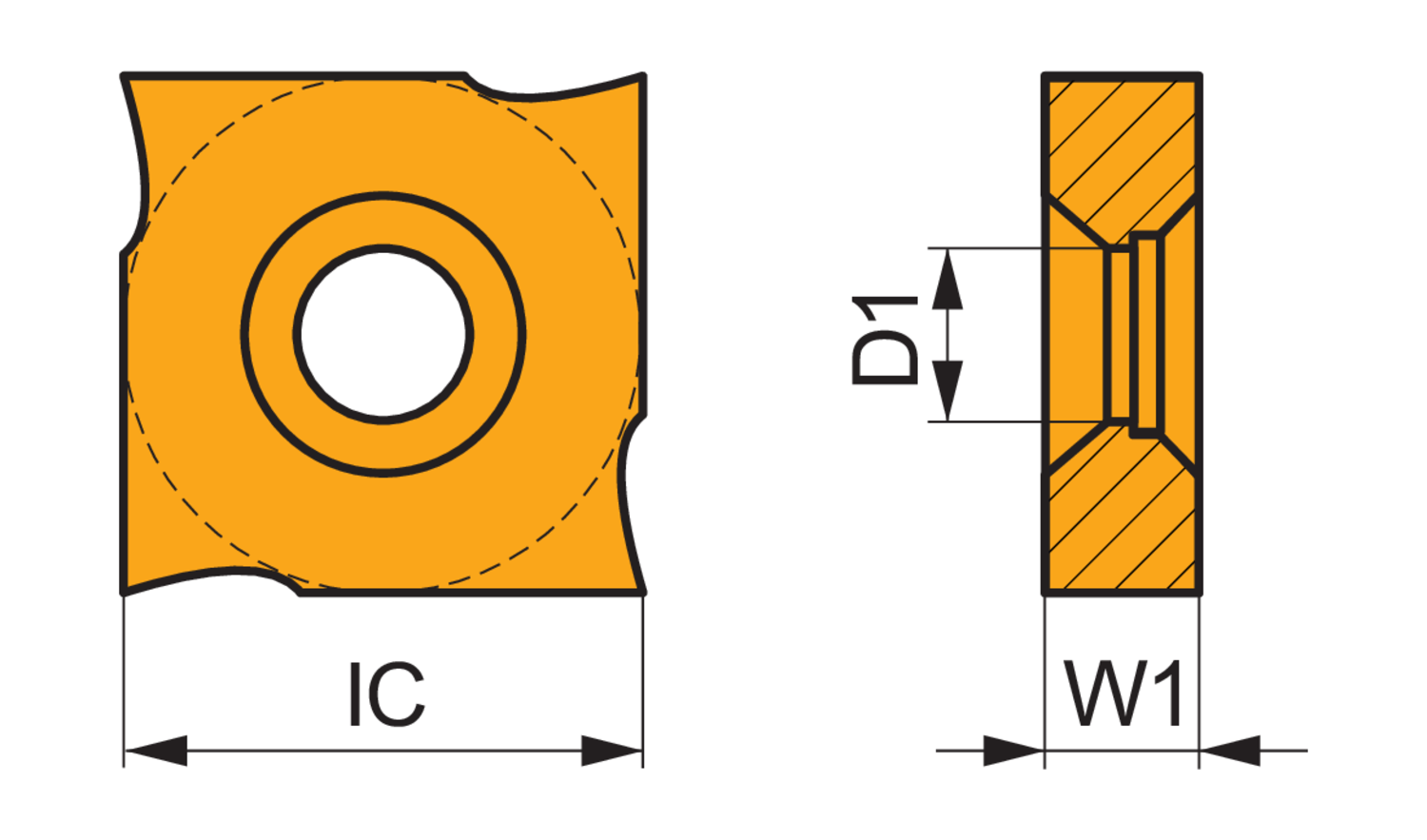

Fixing hole diameter - inch (D1)
0.197
Fixing hole diameter - millimeter (D1)
5
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
S - square
Insert width - inch (W1)
0.177
Insert width - millimeter (W1)
4.5
Double-sided disc milling insert, for a cutting width of 8.0mm with rounded cutting edges, 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10-P20 and K10-K25 for machining of steel and cast-iron with disc mills S90SN
