Pramet SNKT 1205AZSR-M:M8340 6800884 Milling Insert - Face
MODEL 6800884
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.71 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
M
Coating
M8340
Coating process
PVD
Coating property (CTP)
1
Cutting edge length - inch (L)
0.5
Cutting edge length - millimeter (L)
12.7
Depth of cut maximum - inch (APMX)
0.256
Depth of cut maximum - millimeter (APMX)
6.5
Depth of cut minimum - inch (APMN)
0.039
Depth of cut minimum - millimeter (APMN)
1
Feed maximal - millimeter
0.5
Feed minimal - millimeter
0.15
Feed_MAX_IMP_NUM
0.02
Feed_MIN_IMP_NUM
0.006

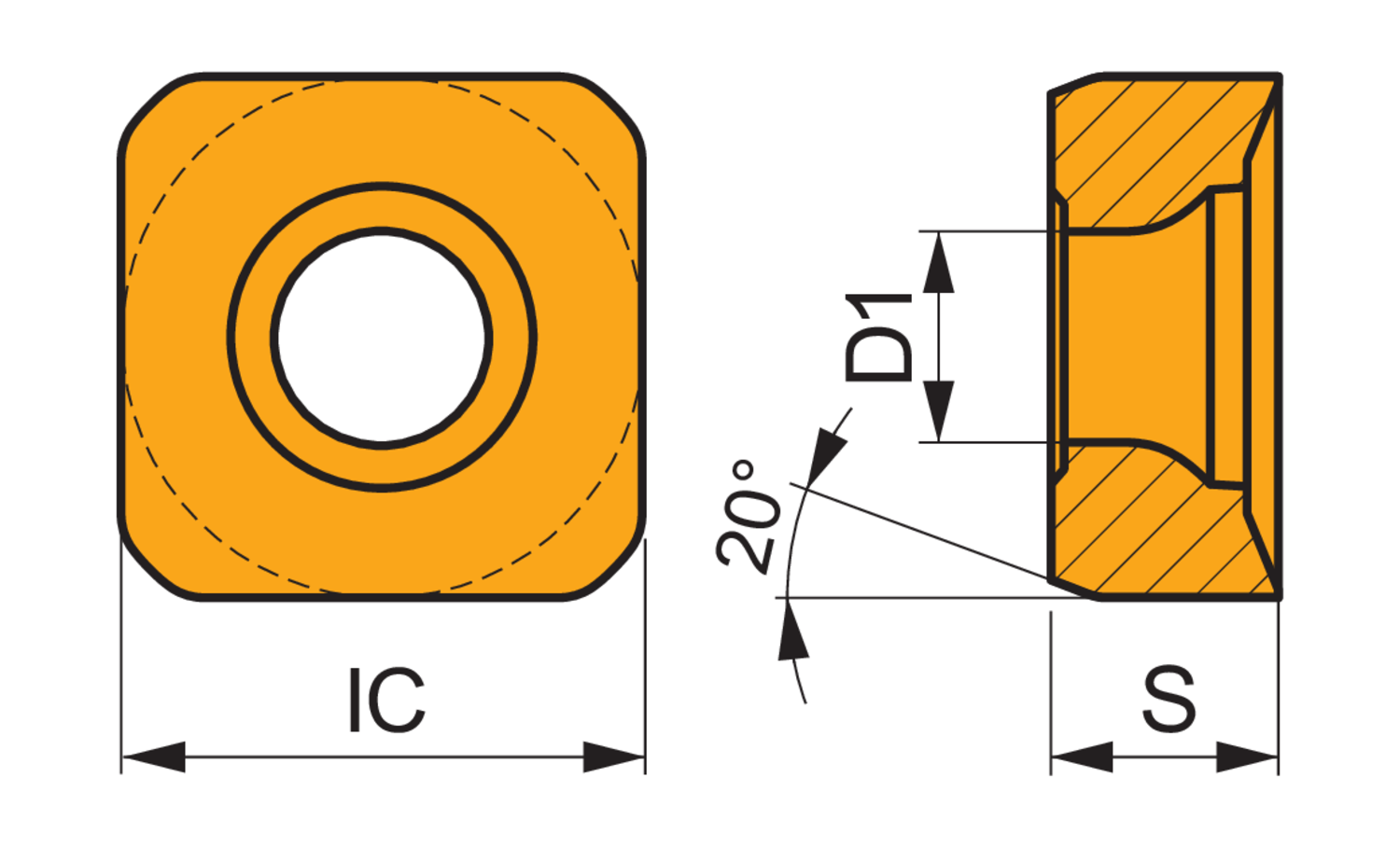

Fixing hole diameter - inch (D1)
0.205
Fixing hole diameter - millimeter (D1)
5.2
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.219
Insert thickness - millimeter (S)
5.56
Single-sided milling insert SNKT 1205 with chip-breakers, square for a maximum depth of cut of 6.5mm, with an indexing accuracy according to ISO-tolerance class-K and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with face mills SSN12Z
