Pramet SPET 120408S:M8330 7451034 Milling Insert - Square Shoulder
MODEL 7451034
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$15.64 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Coating
0.016
Coating process
0.007
Coating property (CTP)
1
Cooling effect
With chipbreaker -no designation
Corner radius - inch (RE)
M8330
Corner radius - millimeter (RE)
PVD
Cutting edge effective length - inch (LE)
0.5
Cutting edge effective length - millimeter (LE)
12.7
Cutting edge length - inch (L)
0.5
Cutting edge length - millimeter (L)
12.7
Depth of cut maximum - inch (APMX)
0.472
Depth of cut maximum - millimeter (APMX)
12
Feed maximal - millimeter
0.4
Feed minimal - millimeter
0.17
Feed_MAX_IMP_NUM
0.039
Feed_MIN_IMP_NUM
1

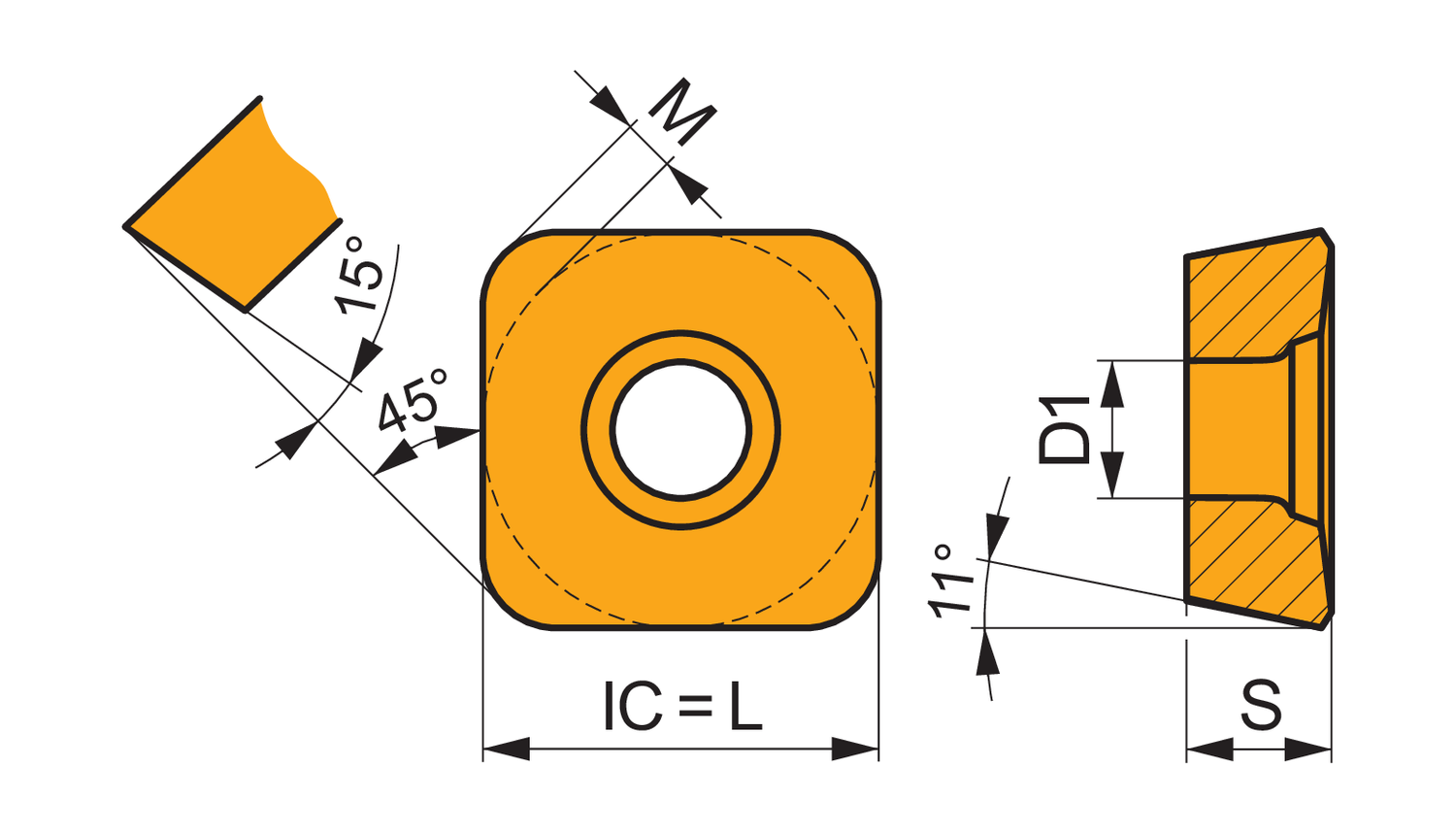

Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.075
Inscribed circle diameter - millimeter (IC)
1.9
Insert cutting diameter - millimeter (CDI)
4.76
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.8
Insert thickness - millimeter (S)
4.76
m-dimension - inch (M)
0.075
m-dimension - millimeter (M)
1.9
Major cutting edge angle (KRINS)
0.031
Wiper edge length - inch (BS)
Slightly negative effect on tool life
Single-sided milling insert SPET 1204 with chip-breakers, square for a maximum depth of cut of 12.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills with extended flute J(T)-SSAP
| Brand | Pramet |
| Model | 6753642 |
