Pramet TNGX 100408SR-F:M9340 7178556 Milling Insert - Square Shoulder
MODEL 7178556
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Coating
0.004
Coating process
0.001
Coating property (CTP)
1
Cooling effect
F

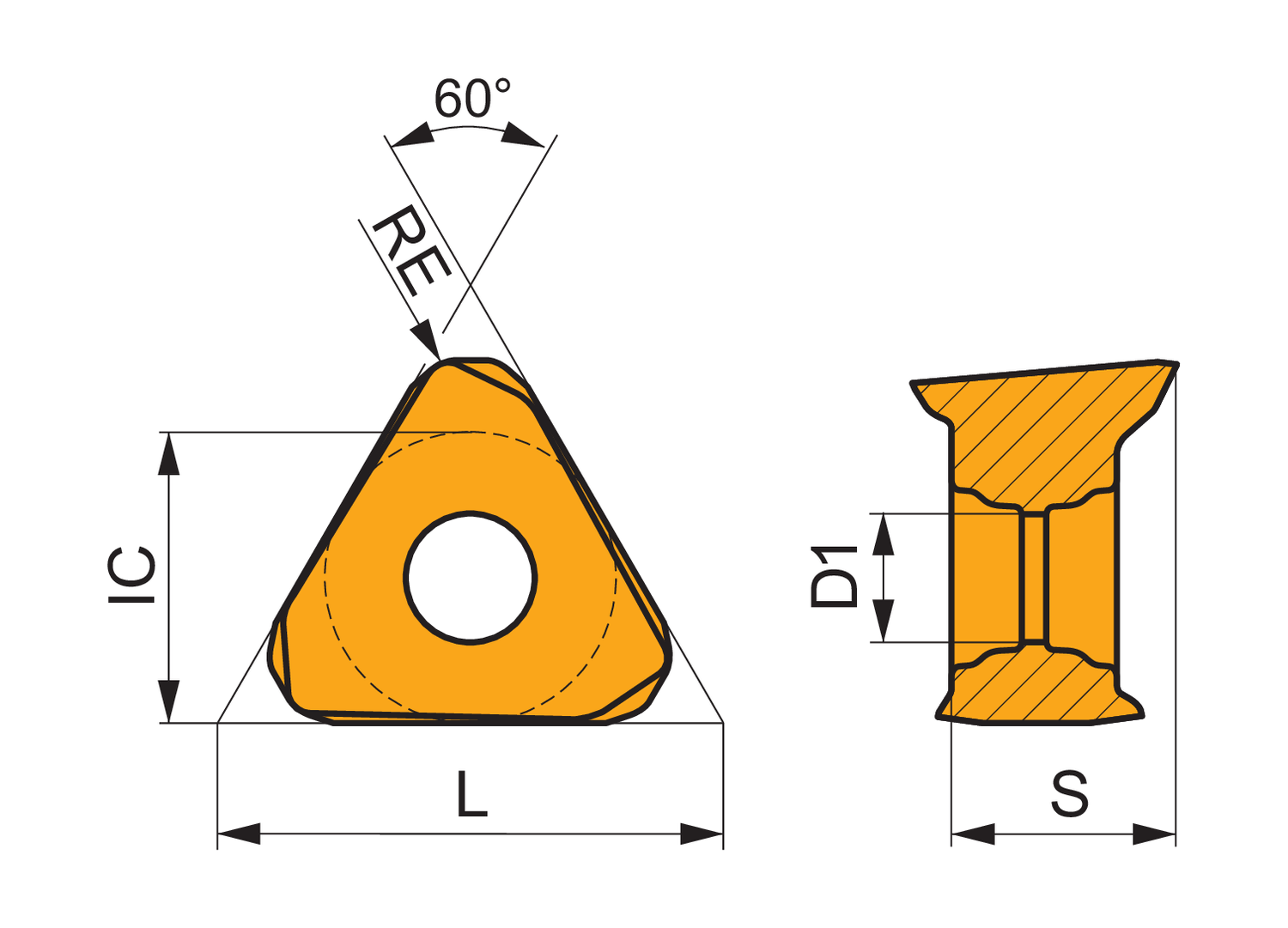

Corner radius - inch (RE)
M9340
Corner radius - millimeter (RE)
MT-CVD
Cutting edge effective length - inch (LE)
0.236
Cutting edge effective length - millimeter (LE)
6
Cutting edge length - inch (L)
0.409
Cutting edge length - millimeter (L)
10.39
Depth of cut maximum - inch (APMX)
0.197
Depth of cut maximum - millimeter (APMX)
5
Feed maximal - millimeter
0.09
Feed minimal - millimeter
0.03
Feed_MAX_IMP_NUM
0.004
Feed_MIN_IMP_NUM
0.1
Fixing hole diameter - inch (D1)
0.11
Fixing hole diameter - millimeter (D1)
2.8
Inscribed circle diameter - inch (IC)
0.236
Inscribed circle diameter - millimeter (IC)
6
Insert cutting diameter - millimeter (CDI)
4.69
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.8
Insert thickness - millimeter (S)
4.69
Major cutting edge angle (KRINS)
0.031
Wiper edge length - inch (BS)
Very negative effect on tool life - cooling is not recommended
Double-sided milling insert TNGX 1004, triangular for a maximum depth of cut of 5.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and F geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel with shoulder face mills STN10
