Pramet SNGX 110416SR-M:M9325 7799791 Milling Insert - High Feed
MODEL 7799791
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$19.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
M
Coating
M9325
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very negative effect on tool life - cooling is not recommended

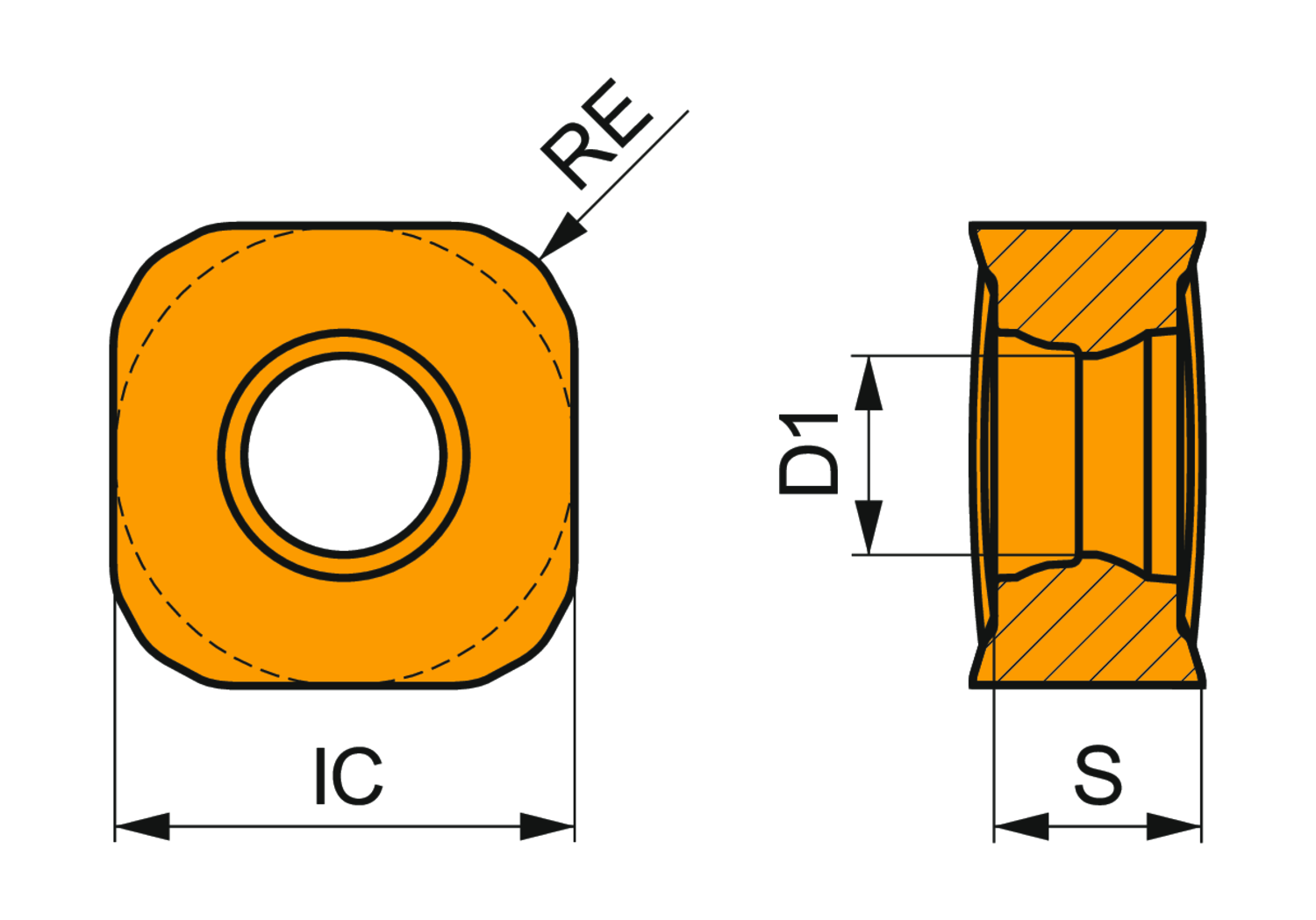

Corner radius - inch (RE)
0.063
Corner radius - millimeter (RE)
1.6
Fixing hole diameter - inch (D1)
0.18
Fixing hole diameter - millimeter (D1)
4.56
Inscribed circle diameter - inch (IC)
0.417
Inscribed circle diameter - millimeter (IC)
10.6
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Double-sided milling insert SNGX 1104, square for a maximum depth of cut of 1.7mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of steel with high feed cutters SSN11
