Pramet ZDCW 09T304:M8310 6756270 Milling Insert - High Feed
MODEL 6756270
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$12.07 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M8310
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

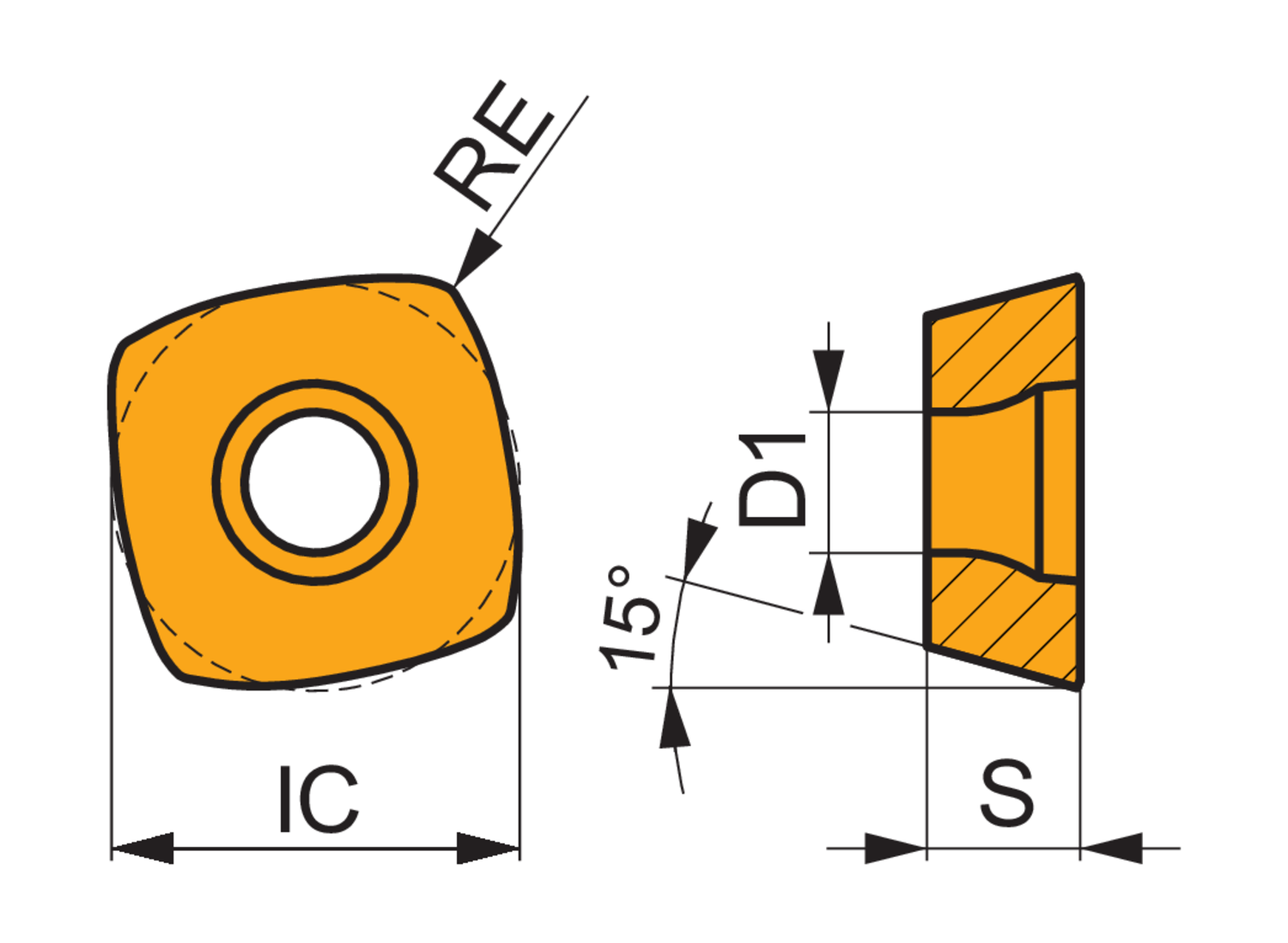

Corner radius - inch (RE)
0.016
Corner radius - millimeter (RE)
0.4
Cutting edge length - inch (L)
0.375
Cutting edge length - millimeter (L)
9.53
Depth of cut maximum - inch (APMX)
0.039
Depth of cut maximum - millimeter (APMX)
1
Feed maximal - millimeter
2
Feed minimal - millimeter
0.3
Feed_MAX_IMP_NUM
0.079
Feed_MIN_IMP_NUM
0.012
Fixing hole diameter - inch (D1)
0.134
Fixing hole diameter - millimeter (D1)
3.4
Inscribed circle diameter - inch (IC)
0.375
Inscribed circle diameter - millimeter (IC)
9.525
Insert shape code (SC)
X - Special design
Insert thickness - inch (S)
0.156
Insert thickness - millimeter (S)
3.97
Single-sided milling insert ZDCW 09T3 with a plane rake surface, special shape and high-feed design for a maximum depth of cut of 1.0mm, with 0.4mm corner radius, an indexing accuracy according to ISO-tolerance class-C, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with high feed cutters SZD09
