Pramet XP 20ER-FM:M8345 6756180 Milling Insert - Copy And Profile
MODEL 6756180
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$32.04 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FM
Coating
M8345
Coating process
PVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.394
Depth of cut maximum - millimeter (APMX)
10
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.17
Feed minimal - millimeter
0.07
Feed_MAX_IMP_NUM
0.007
Feed_MIN_IMP_NUM
0.003
Insert shape code (SC)
X - Special design

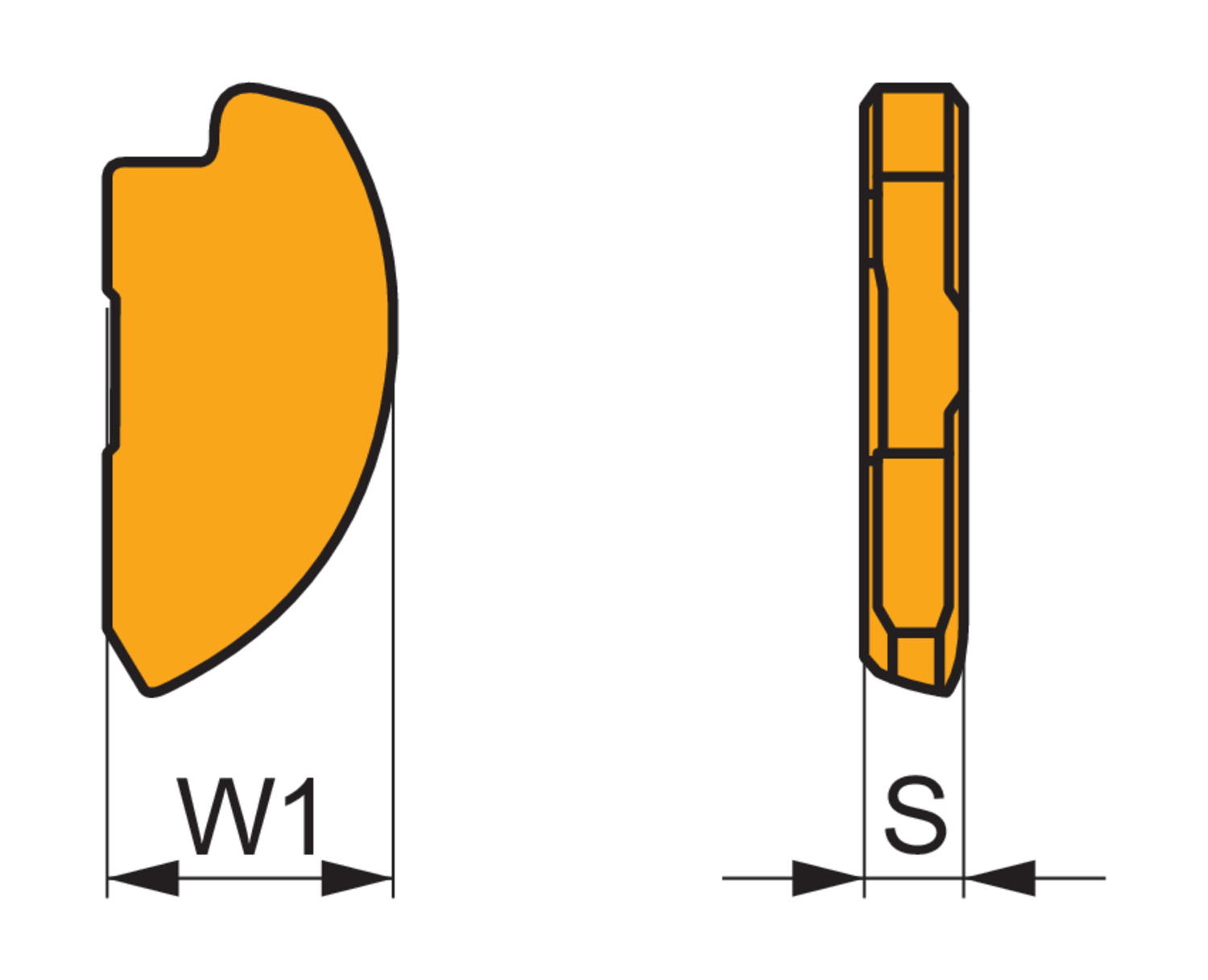

Insert thickness - inch (S)
0.098
Insert thickness - millimeter (S)
2.5
Insert width - inch (W1)
0.787
Insert width - millimeter (W1)
20
Ball nose segment copy milling insert for a diameter of 20mm for a maximum depth of cut of 10.0mm, FM geometry and M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with copy end mills K3-CXP
