Pramet 12L2R060E02-SZP12 6761648 End Milling Cutter - Copy And Profile
MODEL 6761648
$374.27 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

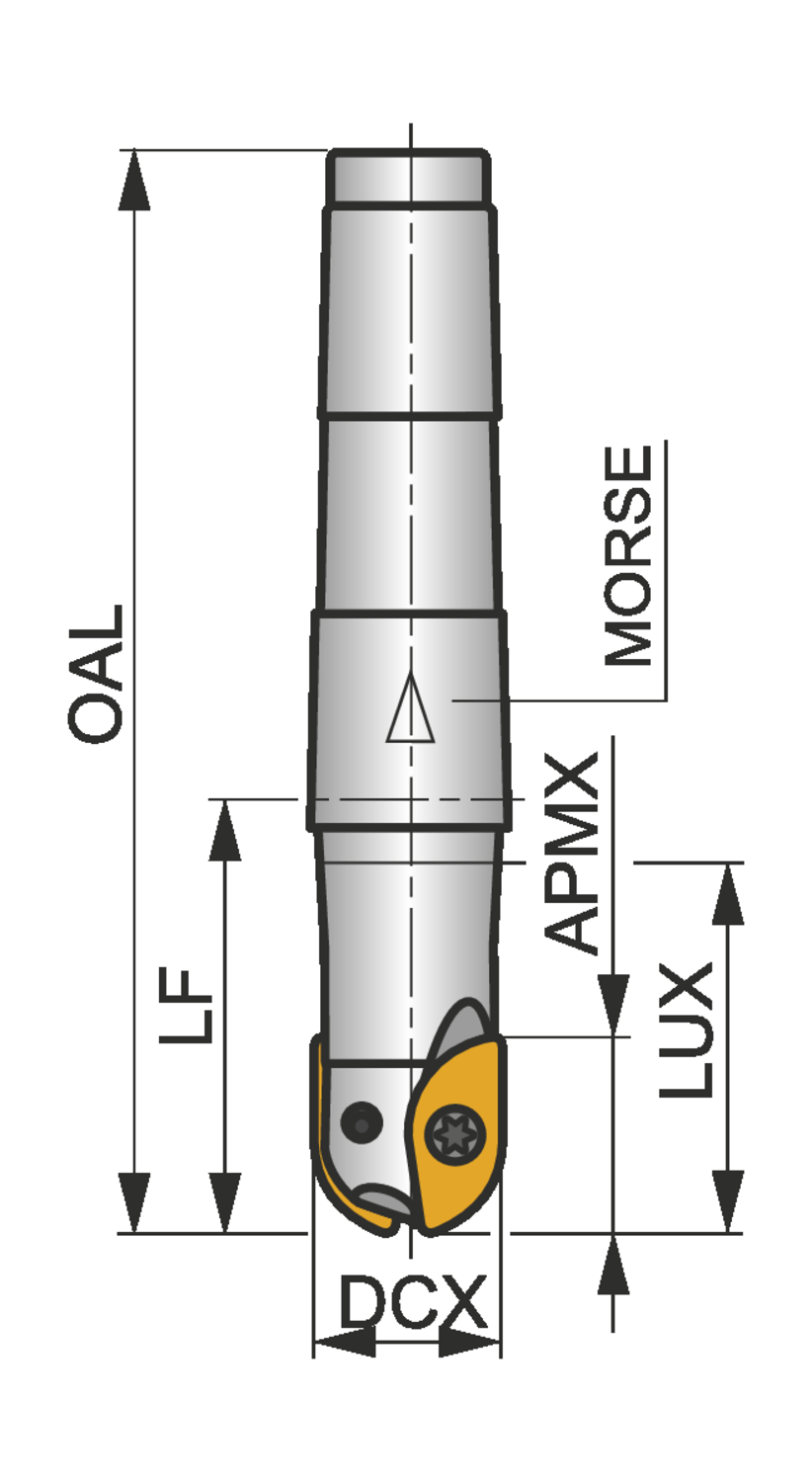

Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
2
Cutting diameter maximum - inch (DCX)
0.472
Cutting diameter maximum - millimeter (DCX)
12
Depth of cut maximum - millimeter (APMX)
10.7
Functional length - millimeter (LF)
60
Hand (Cutting direction)
Right
Insert group used in the tool
ZP 12
Insert index count (NOI)
2
Maximum ramping angle (RMPX)
10.7
Not recomended
Finishing - very good surface quality
Overall length - inch (OAL)
4.882
Overall length - millimeter (OAL)
124
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Medium machining
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
21000
Shank
Morse shank DIN 228-1
Usable Length maximum - millimeter (LUX)
25.8
Copy end mill with double negative geometry which utilises 2 off ZP 12.. single-sided inserts, cutting diameter 12mm with MT 2 morse taper shank according to DIN 228-1A, 124mm overall length for copy milling with a maximum depth of cut of 10,7mm
