Pramet 42E5R042M16-SRD10-CF 8025179 Modular Head For Copy And Profile Milling
MODEL 8025179
$337.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

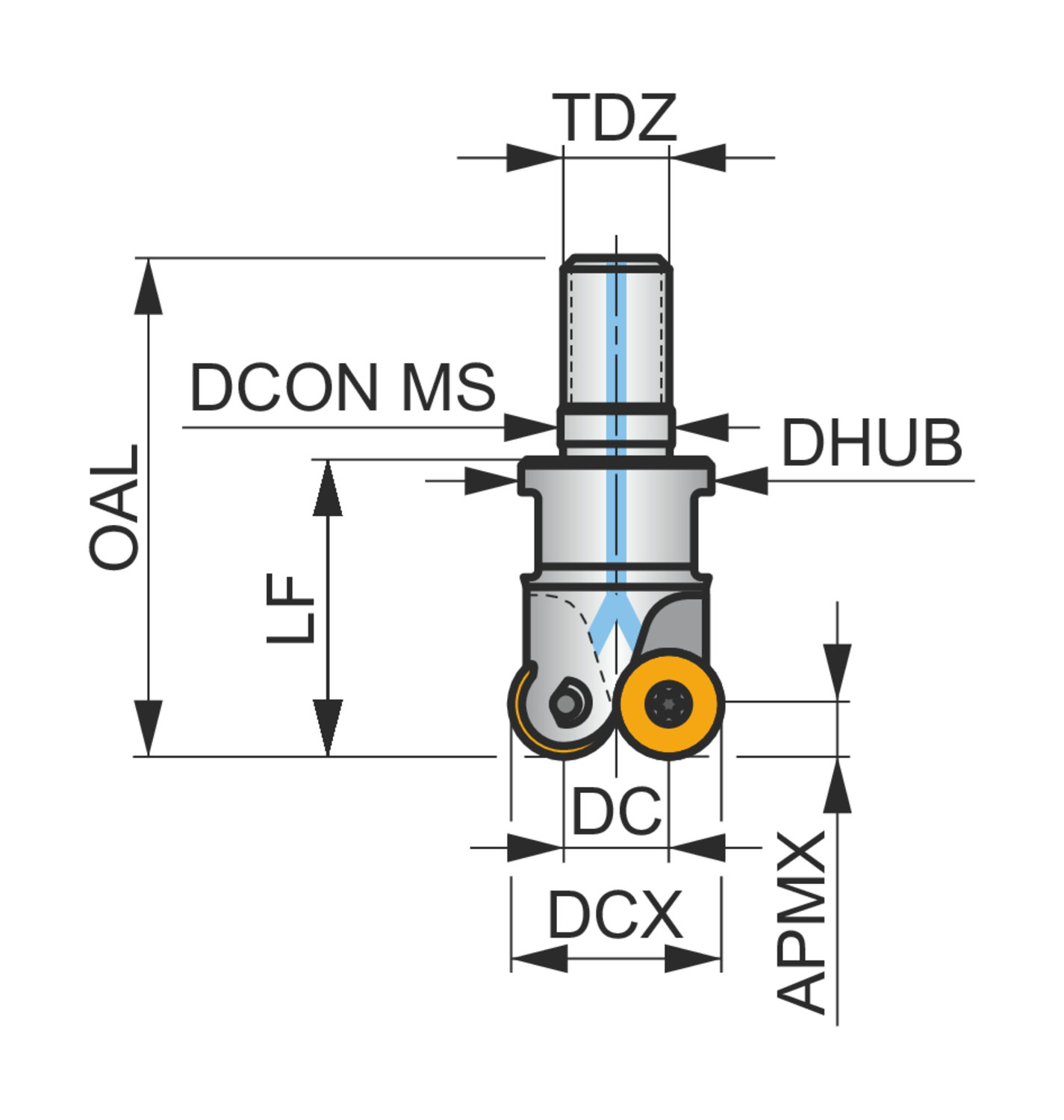

Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.669
Connection diameter - millimeter (DCON MS)
17
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Cutting diameter maximum - inch (DCX)
1.654
Cutting diameter maximum - millimeter (DCX)
42
Cutting pitch differential (CPDF)
0
Depth of cut maximum - millimeter (APMX)
2.5
Functional length - millimeter (LF)
42
Hand (Cutting direction)
Right
Hub diameter - millimeter (DHUB)
29
Insert index count (NOI)
5
Overall length - inch (OAL)
2.559
Overall length - millimeter (OAL)
65
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
21200
Shank
Threaded coupling
Thread diameter size (TDZ)
M16
Copy face mill with double negative geometry which utilises 5 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 42mm with M16 threaded shank for standard modular tool-holders, 42mm functional and 65mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2.5mm
