Pramet 075N2R126W075-ISSE09-C 6789712 End Milling Cutter - Face
MODEL 6789712
$306.41 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
20
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.75
Cutting diameter - millimeter (DC)
19.1
Cutting diameter maximum - inch (DCX)
1.136
Cutting diameter maximum - millimeter (DCX)
28.9
Hand (Cutting direction)
Right
Overall length - inch (OAL)
3.331
Overall length - millimeter (OAL)
85
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
24600
Shank
Weldon shank DIN 1835B
Usable Length - inch (LU)
1.26

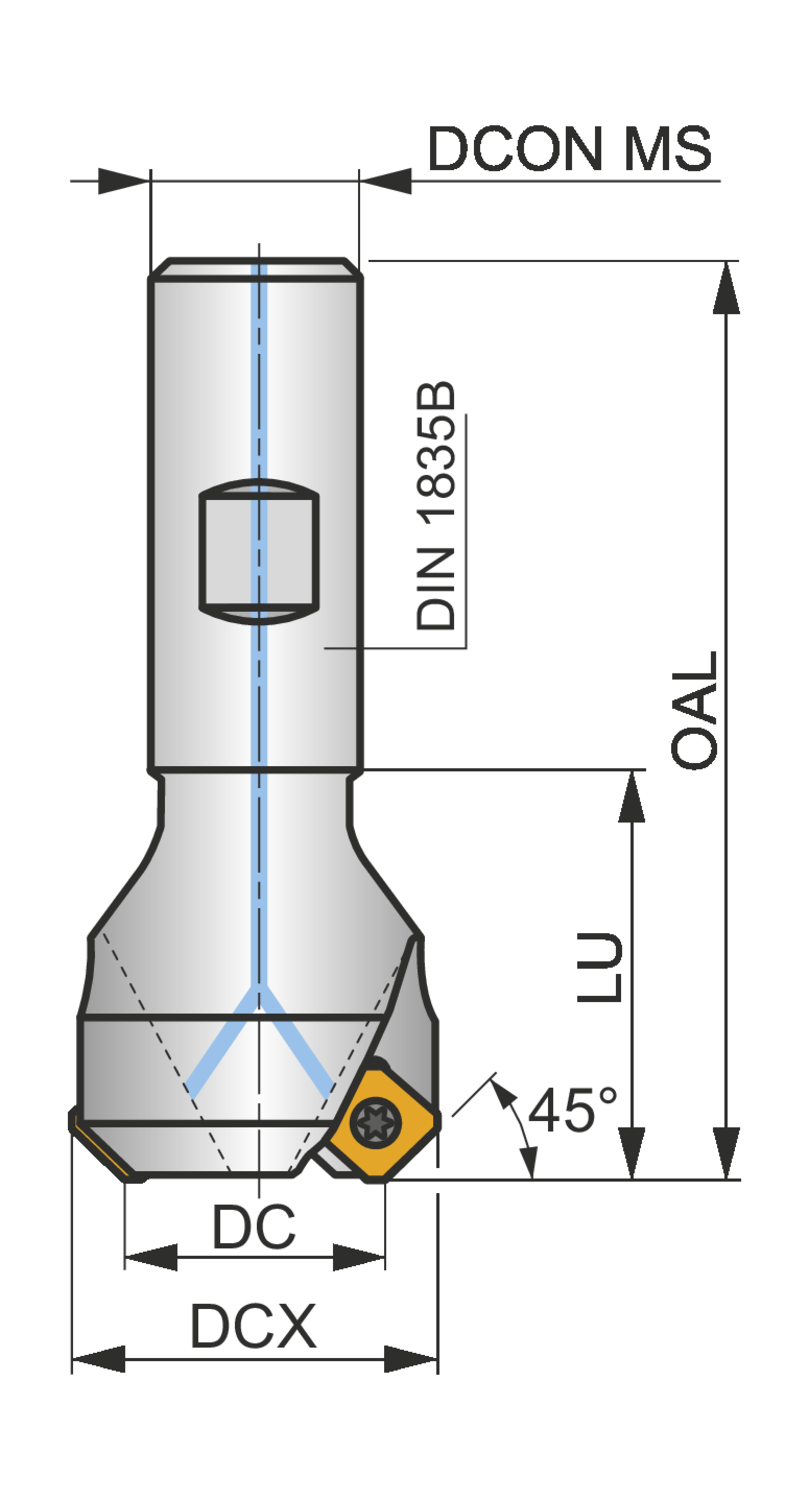

Face mill with positve/negative geometry which utilises 2 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter .750'' with 45° approach angle and .750'' Weldon shank according to DIN 1835B, 3.331'' overall length, through coolant for face milling and chamfering with a maximum depth of cut of .177''
