Pramet 1000C12R-IS57PN13 6792993 Shell Milling Cutter - Heavy Duty
MODEL 6792993
$2,231.24 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

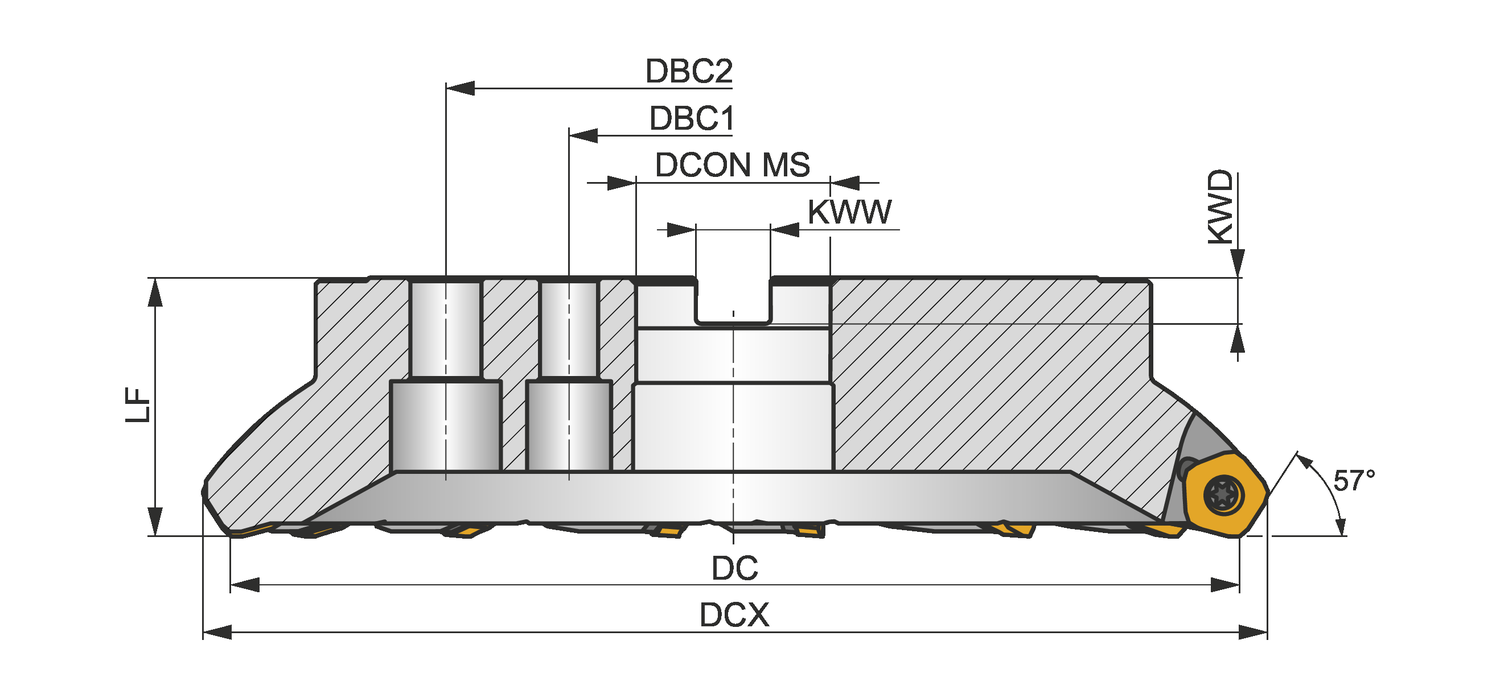

Axial rake angle (GAMP)
-4
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
2.5
Connection diameter - millimeter (DCON MS)
63.5
Cutting diameter - inch (DC)
10
Cutting diameter - millimeter (DC)
254
Cutting diameter maximum - inch (DCX)
10.627
Cutting diameter maximum - millimeter (DCX)
269.9
Diameter bolt circle 1 - inch (DBC1)
4
Functional length - inch (LF)
2.48
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.559
Keyway width - inch (KWW)
1
Peripheral effective cutting edge count (ZEFP)
12
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
2200
Shank
Shell mill DIN 8030 C
Face mill with double negative geometry which utilises 12 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 10.000 to maximum 10.627'' with 57° approach angle and 2.500'' connection bore according to DIN 8030-C, 2.480'' protrusion length for face milling with a maximum depth of cut of .394''
