Pramet 100N3R128C100-ISSD09 chamfer milling cutter body with double negative geometry, 1 in cutting diameter, 0.177 in maximum depth of cut, 45° approach angle, 3 SD..09 inserts, 1 in cylindrical shank DIN 1835A, 7.874 in overall length. Article 6789709.
MODEL 6789709
$326.97 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

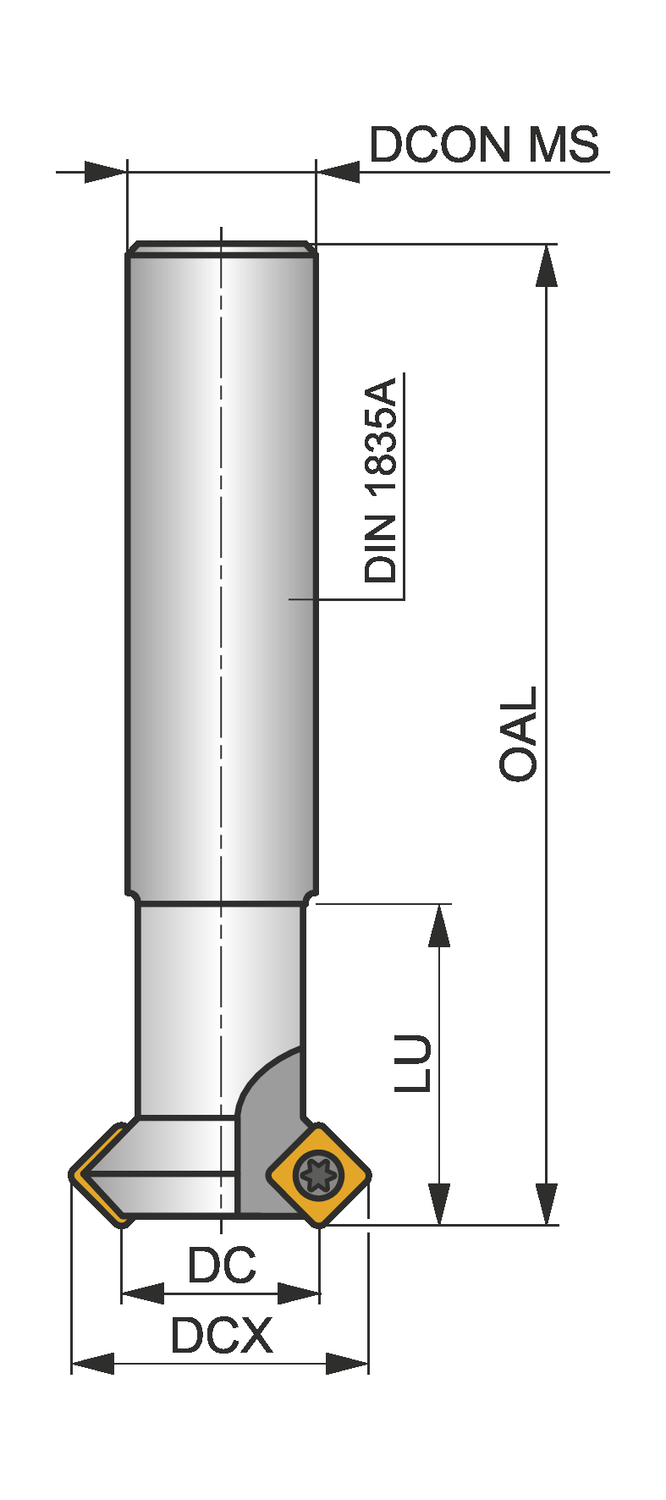

Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1
Connection diameter - millimeter (DCON MS)
25.4
Cutting diameter - inch (DC)
1
Cutting diameter - millimeter (DC)
25.4
Cutting diameter maximum - inch (DCX)
1.472
Cutting diameter maximum - millimeter (DCX)
37.4
Hand (Cutting direction)
Right
Overall length - inch (OAL)
7.874
Overall length - millimeter (OAL)
200
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
25800
Shank
Cylindrical shank DIN 1835A
Usable Length - inch (LU)
1.28
Chamfer mill with double negative geometry which utilises 3 off SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 1.000 to maximum 1.472'' with 45° approach angle and 1.000'' parallel shank according to DIN 1835A, 7.874'' overall length for chamfering with a maximum depth of cut of .177''
