Pramet 10A1R020B16-SAP10D-C end milling cutter, square shoulder, 0.394 in cutting diameter, 0.354 in maximum depth of cut, 1 insert, Weldon shank DIN 1835B, 16 mm connection diameter, 78 mm overall length, through coolant, right hand. Article 6758361.
MODEL 6758361
$251.91 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
2
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.394
Cutting diameter - millimeter (DC)
10
Hand (Cutting direction)
Right
Insert index count (NOI)
1
Overall length - inch (OAL)
3.071
Overall length - millimeter (OAL)
78
Peripheral effective cutting edge count (ZEFP)
1
Radial rake angle (GAMF)
12
Rotational speed maximum (RPMX)
39000
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
30
Usable Length maximum - millimeter (LUX)
20

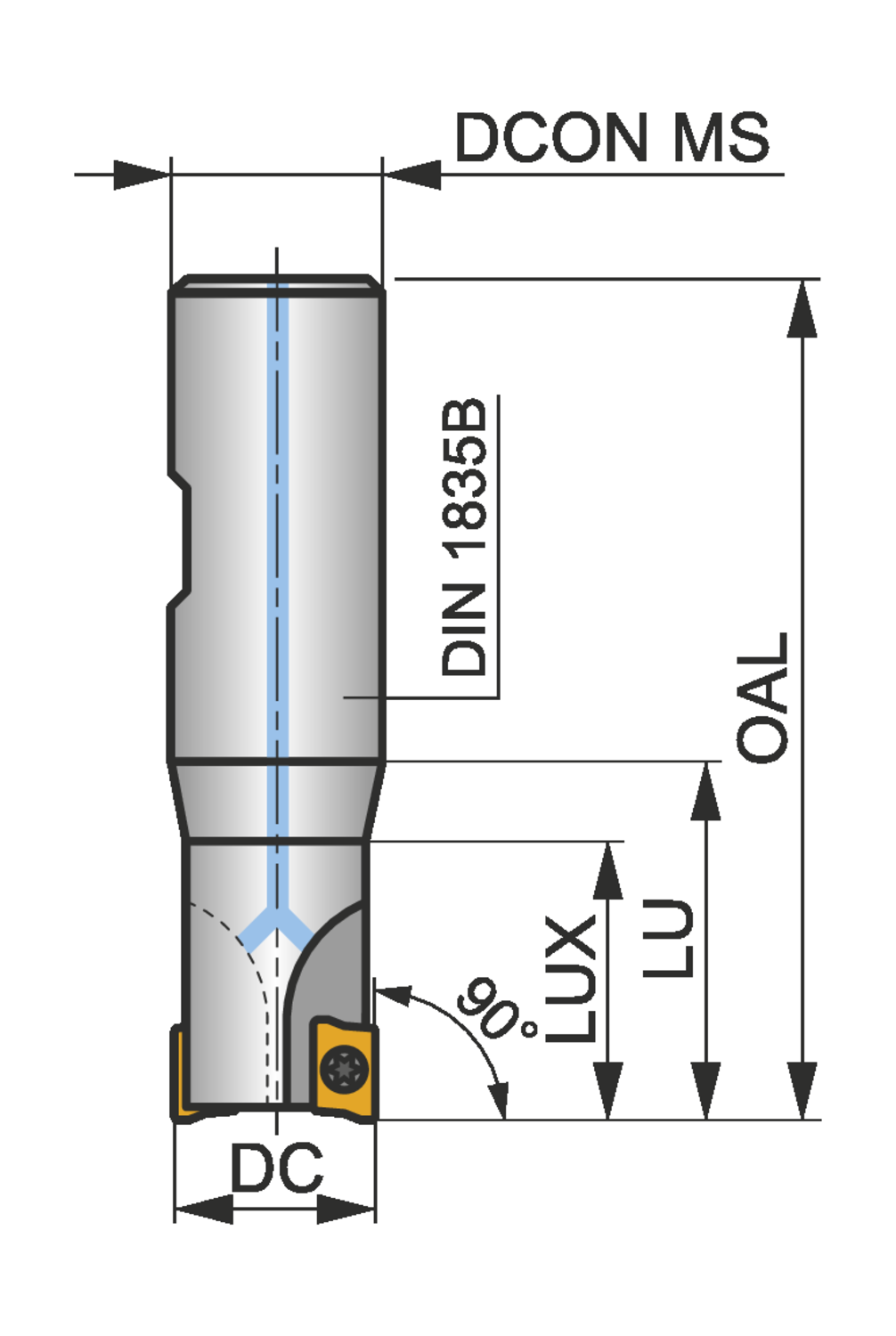

Shoulder mill with double positive geometry which utilises 1 off APKT 1003.. single-sided insert, cutting diameter 10mm with 90° approach angle and 16mm Weldon shank according to DIN 1835B, 20mm functional and 78mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm
#6064208
Brand
Pramet
Model
6793020
