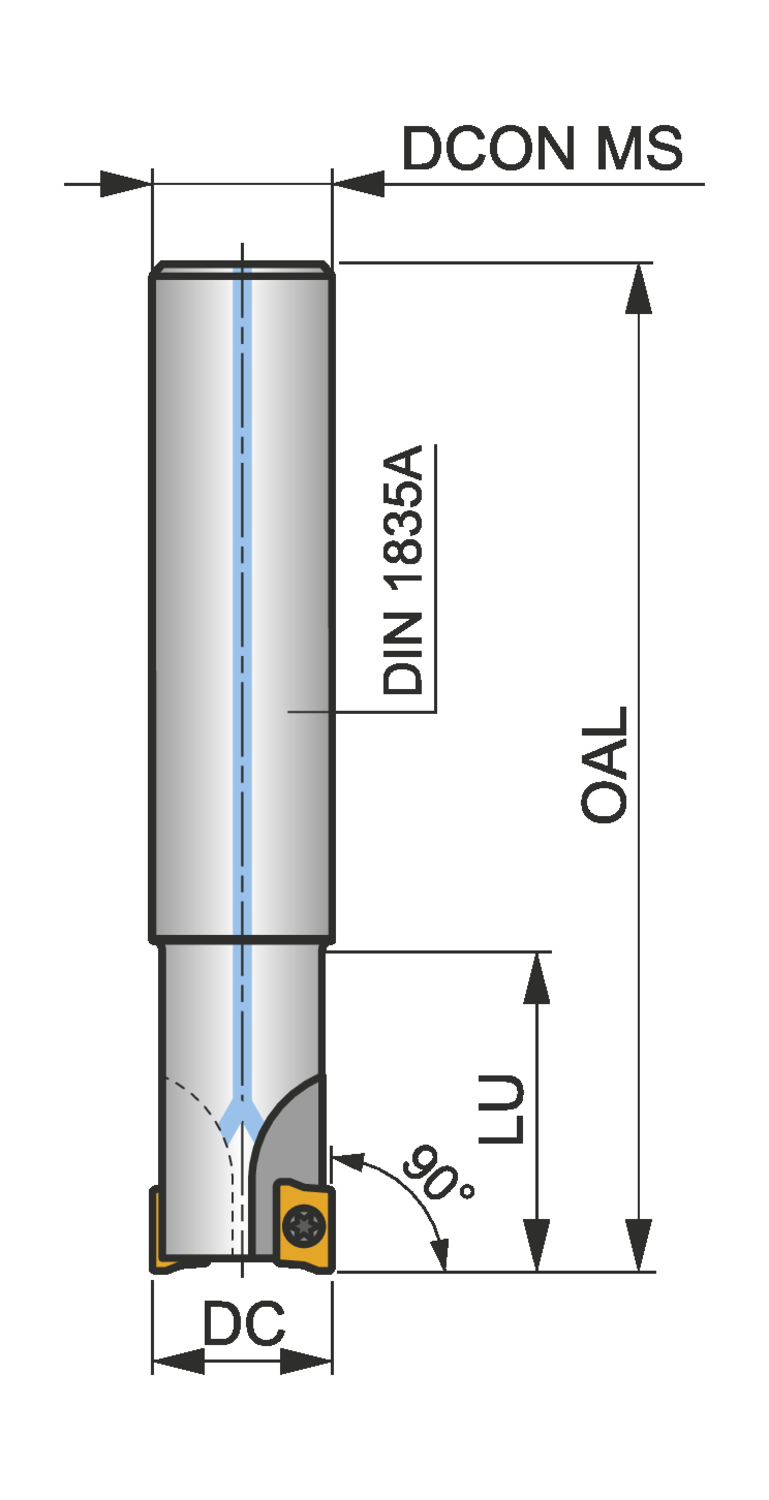

Pramet 32A3R090A32-SAD11E-C square shoulder milling cutter body, 1.26 in (32 mm) cutting diameter, 90° approach angle, 3 AD.. 11.... single-sided inserts, 32 mm cylindrical shank DIN 1835A, 90 mm usable length, 195 mm overall length, through coolant, right hand. Article 6759685.
MODEL 6759685
$387.64 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
7.677
Overall length - millimeter (OAL)
195
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-9
Rotational speed maximum (RPMX)
21300
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
90
Shoulder mill with positve/negative geometry which utilises 3 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm parallel shank according to DIN 1835A, 90mm functional and 195mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm
