Pramet 160C10R-S90AD16E-C shell milling cutter body, square shoulder, 6.299 in (160 mm) cutting diameter, 90° approach angle, 10 AD..16 inserts, 40 mm connection bore per DIN 8030-C, 63 mm protrusion, through coolant, differential pitch. Article 7155929.
MODEL 7155929
$1,371.65 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
10
Clamping Type Code (MTP)
Screw clamping through hole

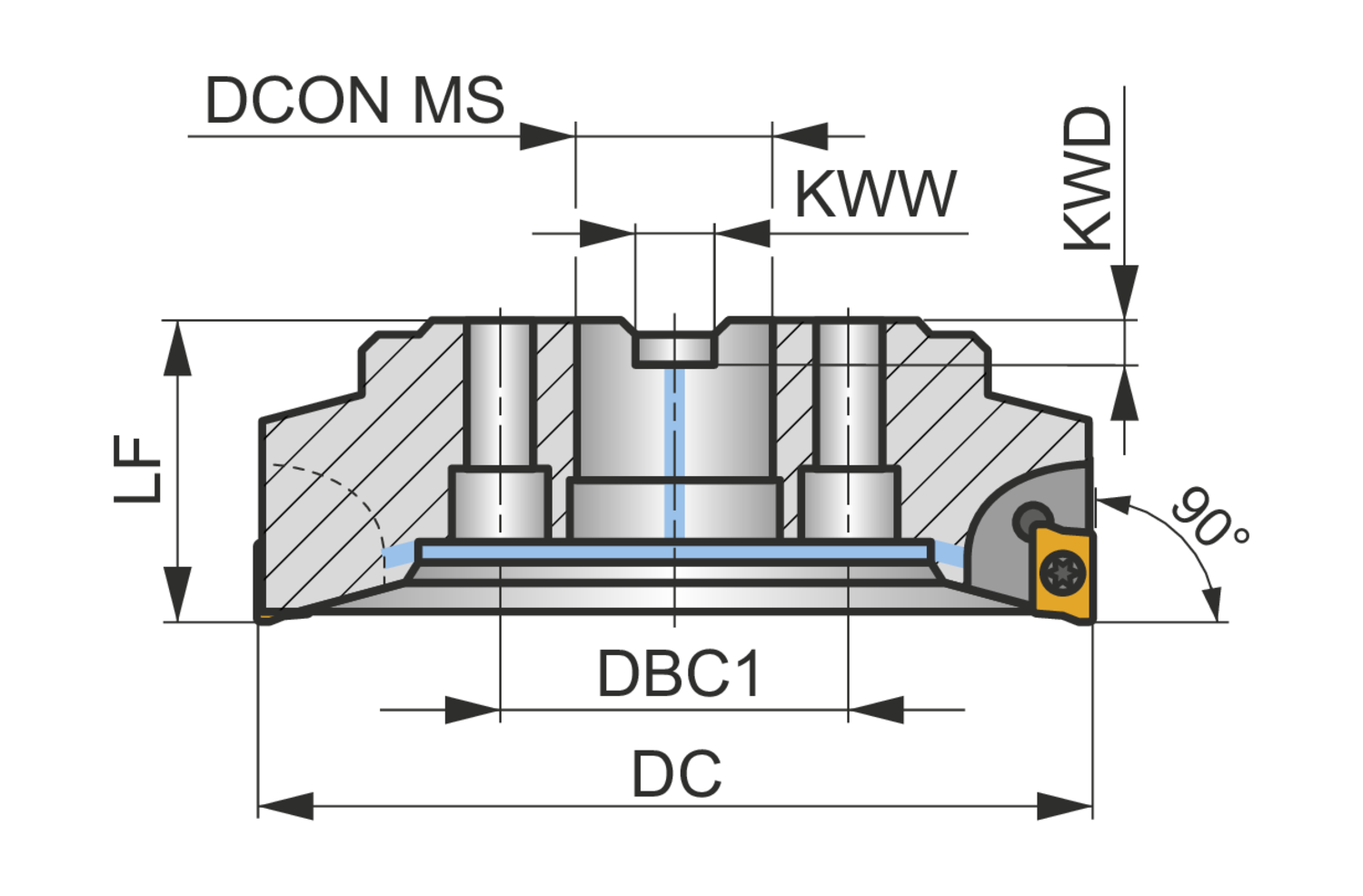

Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
6.299
Cutting diameter - millimeter (DC)
160
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
10
Keyway depth - millimeter (KWD)
9.2
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
10
Radial rake angle (GAMF)
-3.8
Rotational speed maximum (RPMX)
7300
Shank
Shell mill DIN 8030 C
Shoulder mill with positve/negative geometry which utilises 10 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 160mm with 90° approach angle and 40mm connection bore according to DIN 8030-C, 63mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm
