Pramet 10N1R027B16-SSD09-A 6757762 End Milling Cutter - Chamfering
MODEL 6757762
$198.45 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole

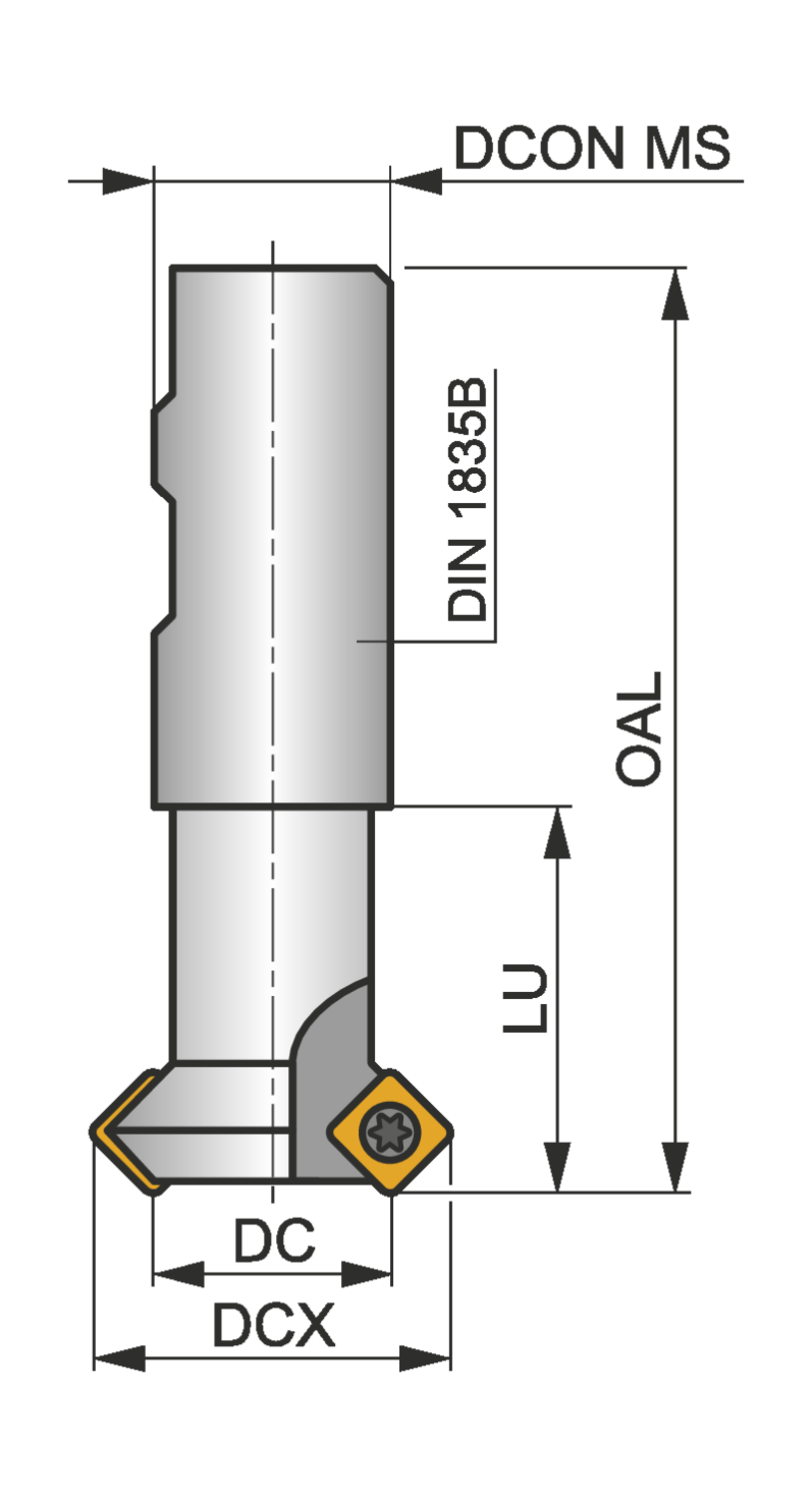

Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Connection size code machine side (CZC MS)
-
Cutting diameter - inch (DC)
0.394
Cutting diameter - millimeter (DC)
10
Cutting diameter maximum - inch (DCX)
0.866
Cutting diameter maximum - millimeter (DCX)
22
Hand (Cutting direction)
Right
Insert index count (NOI)
1
Overall length - inch (OAL)
2.953
Overall length - millimeter (OAL)
75
Peripheral effective cutting edge count (ZEFP)
1
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
40700
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
27
Chamfer mill with double negative geometry which utilises 1 off SDEW 0903.. or SDEX 0903.. single-sided insert, cutting diameter 10 to maximum 22mm with 45° approach angle and 16mm Weldon shank according to DIN 1835B, 75mm overall length for chamfering with a maximum depth of cut of 8.0mm
