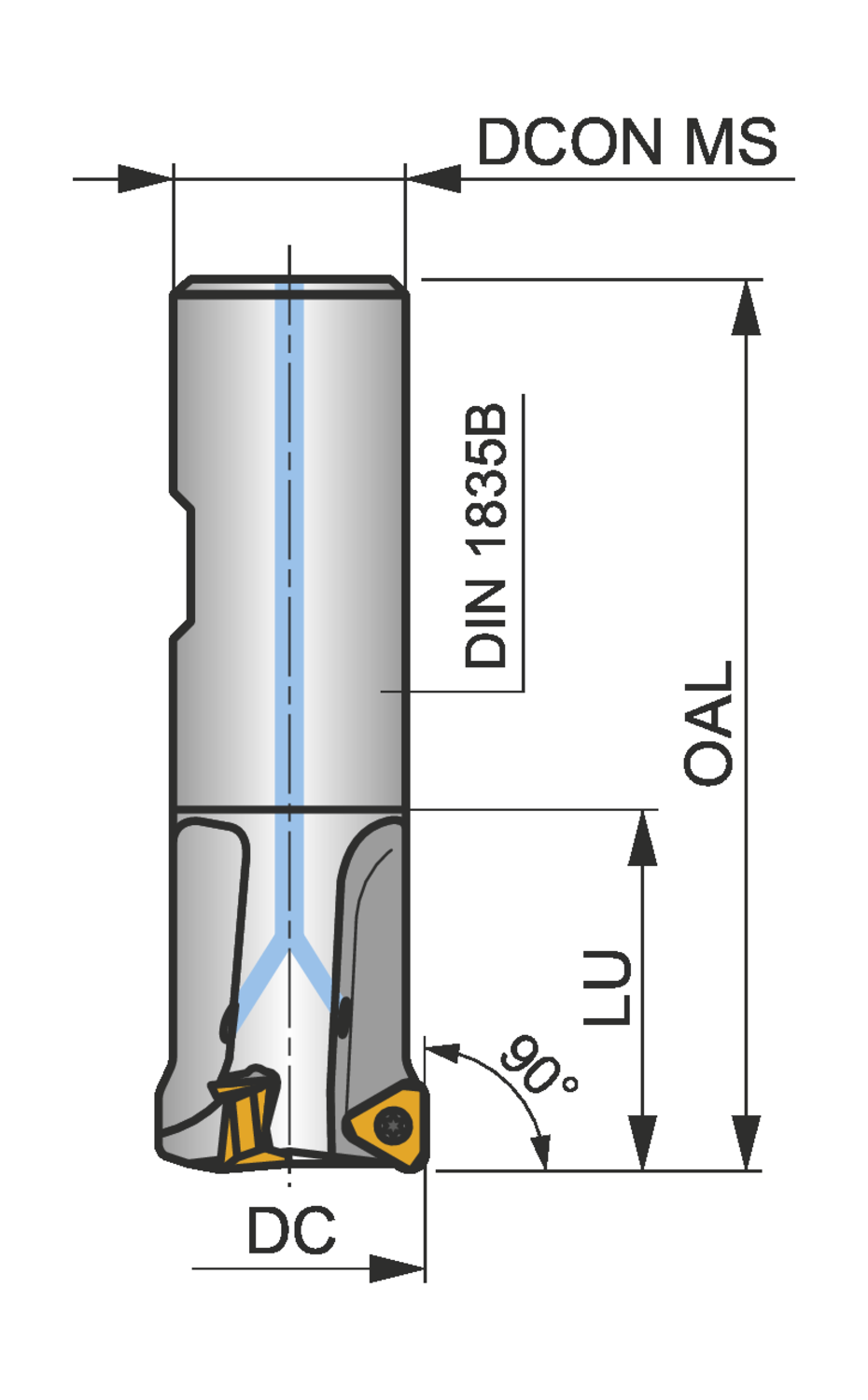

Pramet 125A3R165W125-ISTN16-C shoulder face mill with double negative geometry, 3 TN.. 16.... double-sided inserts, 1.25 in cutting diameter, 90° approach angle, Weldon shank DIN 1835B, through coolant. For face milling, shallow shoulder milling, shallow slot milling, and helical milling in pre-machined holes. Article 8021689.

Axial rake angle (GAMP)

-9.5

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

1.26

Connection diameter - millimeter (DCON MS)

31.75

Coolant supply property (CSP)

1

Cutting diameter - inch (DC)

1.25

Cutting diameter - millimeter (DC)

31.75

Cutting pitch differential (CPDF)

0

Hand (Cutting direction)

Right

Overall length - inch (OAL)

4.331

Overall length - millimeter (OAL)

110

Peripheral effective cutting edge count (ZEFP)

3

Radial rake angle (GAMF)

-16

Shank

Weldon shank DIN 1835B

Usable Length - inch (LU)

1.654
