Pramet 125A3R169M16-ISTN16-C 8021722 Modular Head For Square Shoulder Milling
MODEL 8021722
$370.16 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

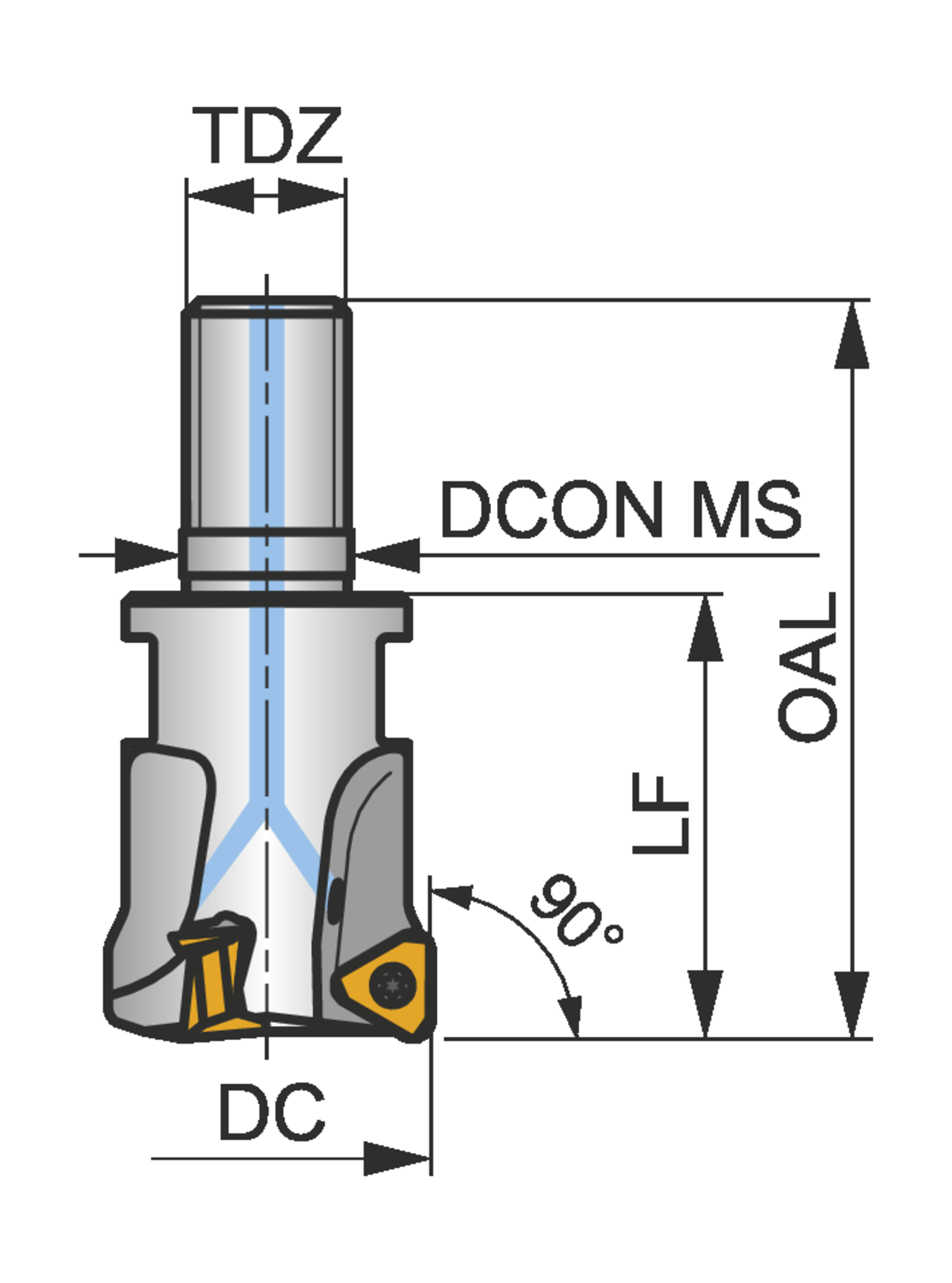

Axial rake angle (GAMP)
-9.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.669
Connection diameter - millimeter (DCON MS)
17
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.25
Cutting diameter - millimeter (DC)
31.75
Cutting pitch differential (CPDF)
0
Functional length - inch (LF)
1.693
Hand (Cutting direction)
Right
Overall length - inch (OAL)
2.598
Overall length - millimeter (OAL)
66
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-16
Shank
Threaded coupling
Thread diameter size (TDZ)
M16
Shoulder face mill with double negative geometry which utilises 3 of TNGX 1606.. double-sided inserts, cutting diameter 1.250" with 90° approach angle and M16 threaded shank for standard modular tool-holders, through coolant for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
