Pramet 125N4R150W125-ISSE09-C 6789714 End Milling Cutter - Face
MODEL 6789714
$360.91 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
20
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.25
Connection diameter - millimeter (DCON MS)
31.8
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.25
Cutting diameter - millimeter (DC)
31.8
Cutting diameter maximum - inch (DCX)
1.644
Cutting diameter maximum - millimeter (DCX)
41.8
Hand (Cutting direction)
Right
Overall length - inch (OAL)
4.039
Overall length - millimeter (OAL)
103
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
19400
Shank
Weldon shank DIN 1835B
Usable Length - inch (LU)
1.5

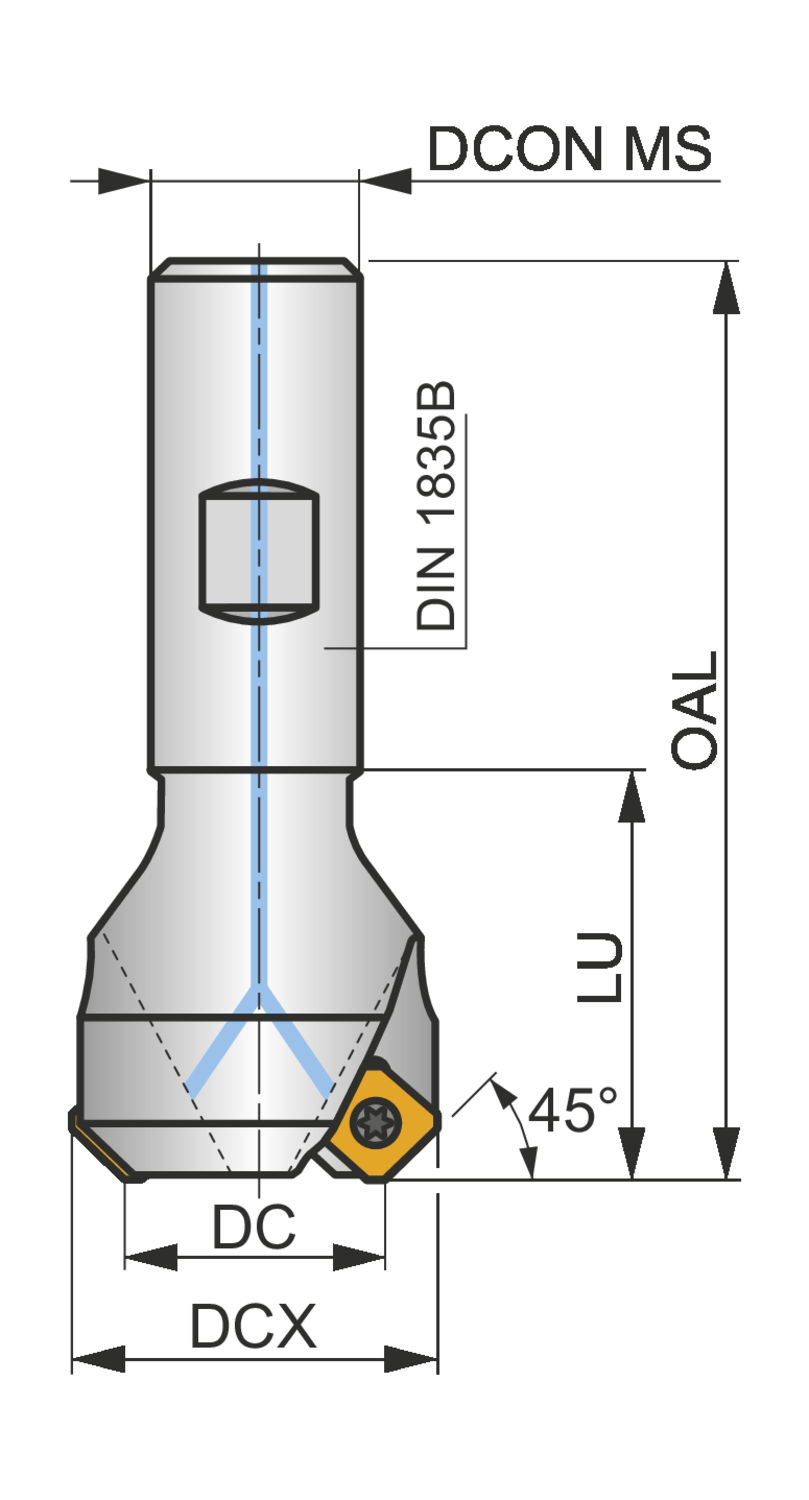

Face mill with positve/negative geometry which utilises 4 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 1.250 to maximum 1.644'' with 45° approach angle and 1.250'' Weldon shank according to DIN 1835B, 4.039'' overall length, through coolant for face milling and chamfering with a maximum depth of cut of .177''
