Pramet 160C09R-S45OE06Z-C 6931703 Shell Milling Cutter - Face
MODEL 6931703
$1,301.73 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

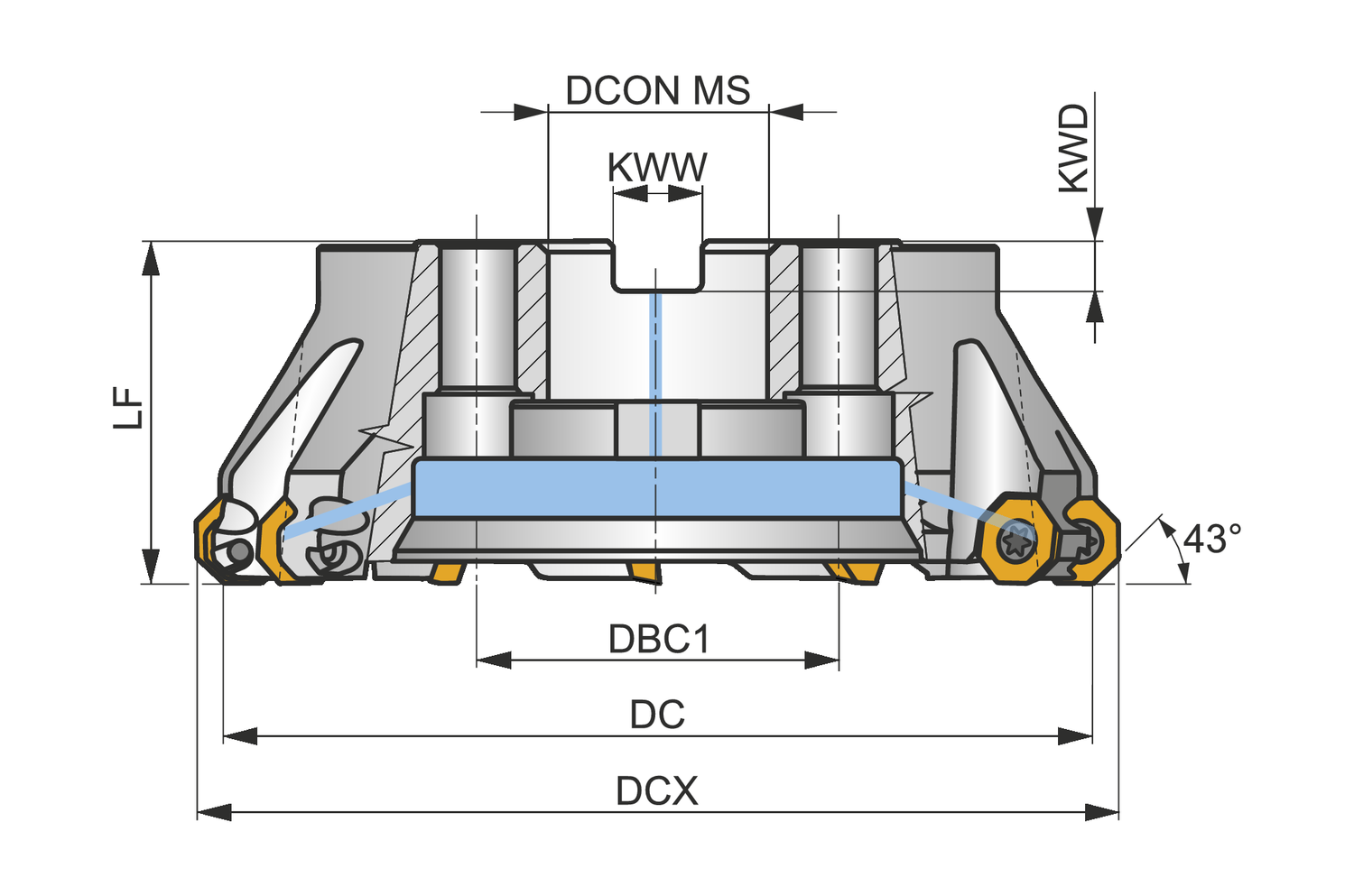

Axial rake angle (GAMP)
10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
6.299
Cutting diameter - millimeter (DC)
160
Cutting diameter maximum - inch (DCX)
6.701
Cutting diameter maximum - millimeter (DCX)
170.2
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
9
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
9
Radial rake angle (GAMF)
6
Rotational speed maximum (RPMX)
6000
Shank
Shell mill DIN 8030 C
Face mill with double positive geometry which utilises 9 off OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 160 to maximum 170.2mm with 43° approach angle and 40mm connection bore according to DIN 8030-C, 63mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm
