Pramet 16N2R027A16-SSD09 6757771 End Milling Cutter - Chamfering
MODEL 6757771
$258.08 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole

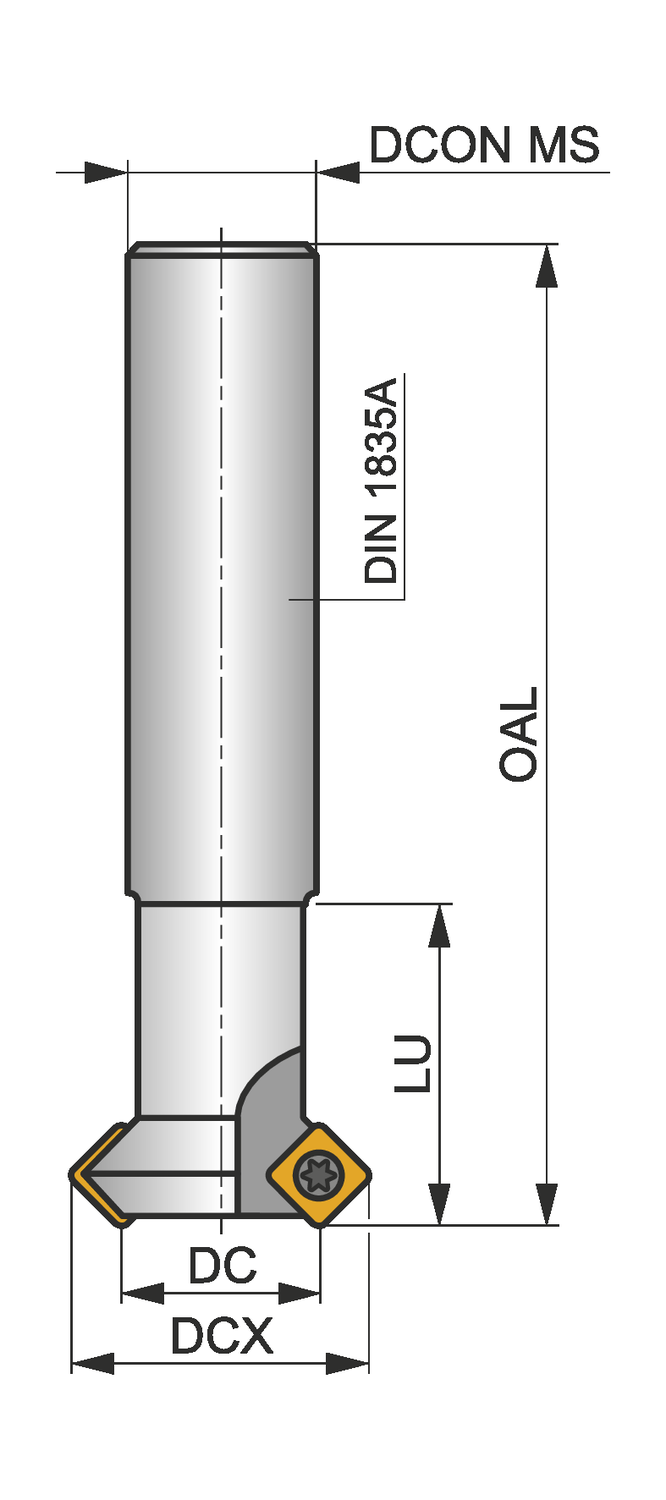

Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Connection size code machine side (CZC MS)
-
Cutting diameter - inch (DC)
0.63
Cutting diameter - millimeter (DC)
16
Cutting diameter maximum - inch (DCX)
1.102
Cutting diameter maximum - millimeter (DCX)
28
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
7.874
Overall length - millimeter (OAL)
200
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
32200
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
27
Chamfer mill with double negative geometry which utilises 2 off SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 16 to maximum 28mm with 45° approach angle and 16mm parallel shank according to DIN 1835A, 200mm overall length for chamfering with a maximum depth of cut of 8.0mm
