Image for Illustration purposes only. Actual product may vary
Pramet 16N2R030E02-SSD09-A 6757798 End Milling Cutter - Chamfering
MODEL 6757798
$244.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

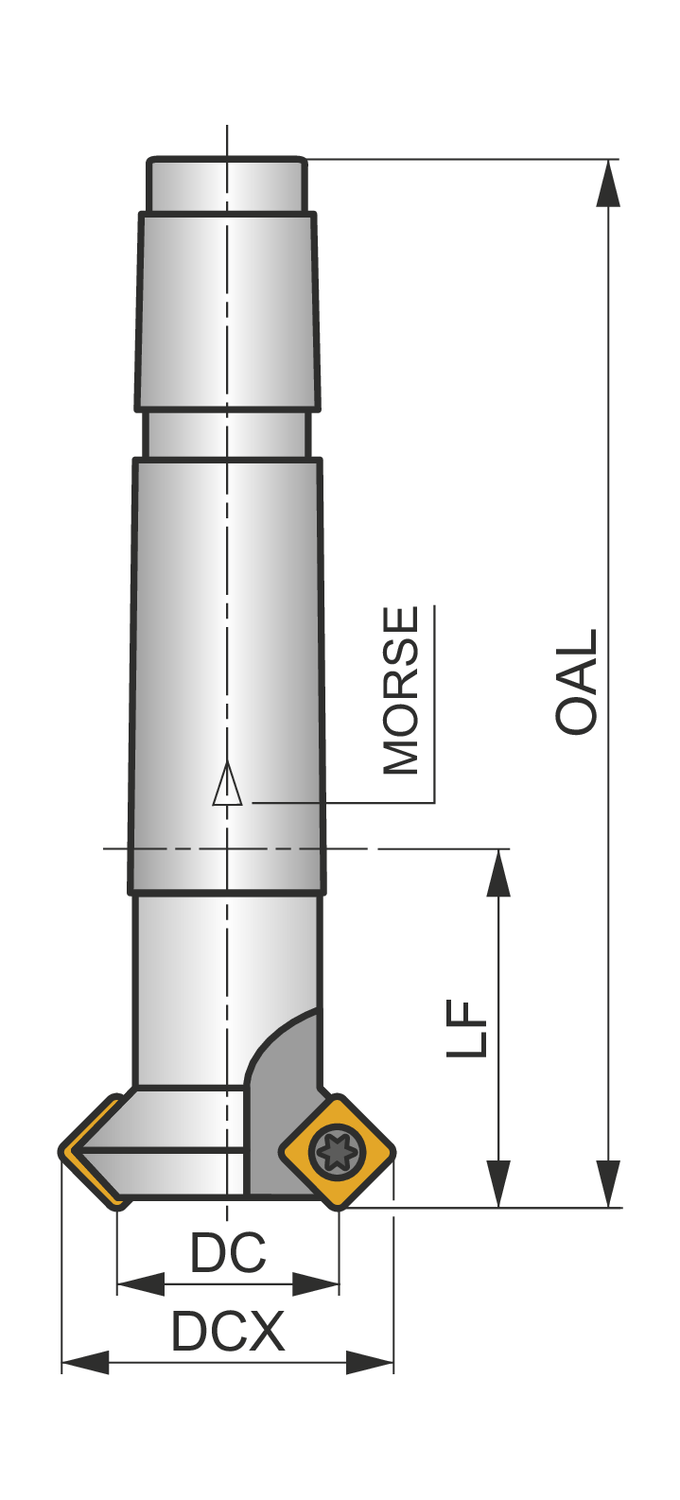

Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
2
Cutting diameter - inch (DC)
0.63
Cutting diameter - millimeter (DC)
16
Cutting diameter maximum - inch (DCX)
1.102
Cutting diameter maximum - millimeter (DCX)
28
Functional length - millimeter (LF)
30
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
3.701
Overall length - millimeter (OAL)
94
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
32200
Shank
Morse shank DIN 228-1
Chamfer mill with double negative geometry which utilises 2 off SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 16 to maximum 28mm with 45° approach angle and MT 2 morse taper shank according to DIN 228-1A, 94mm overall length for chamfering with a maximum depth of cut of 8.0mm
