Pramet 200A04R-IS45OE06Z-C 7216301 Shell Milling Cutter - Face
MODEL 7216301
$515.14 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

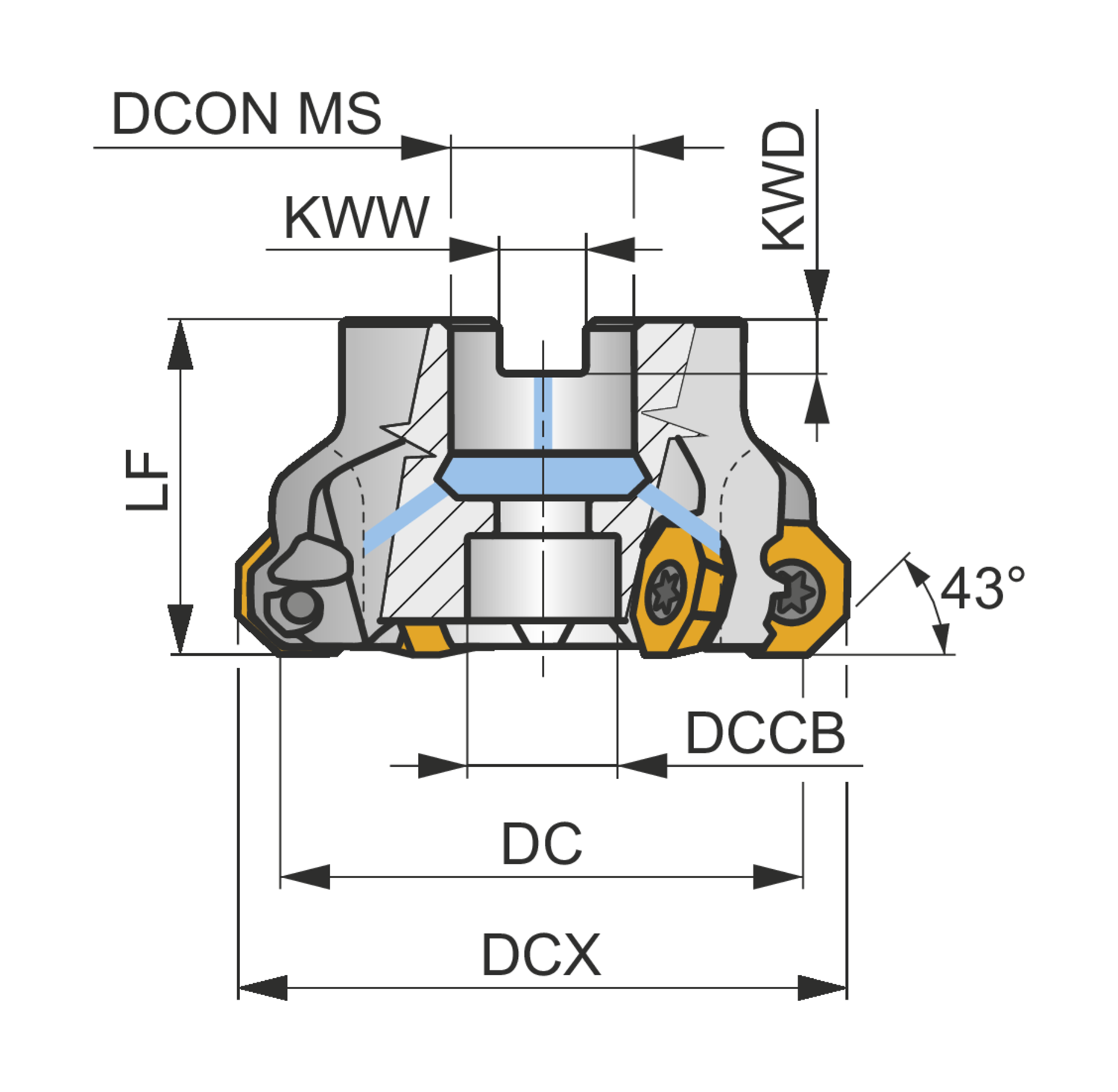

Axial rake angle (GAMP)
6
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.63
Counterbore diameter connection bore - millimeter (DCCB)
16
Cutting diameter - inch (DC)
2
Cutting diameter - millimeter (DC)
50.8
Cutting diameter maximum - inch (DCX)
2.402
Cutting diameter maximum - millimeter (DCX)
61
Cutting pitch differential (CPDF)
1
Functional length - inch (LF)
1.575
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.193
Keyway width - inch (KWW)
0.321
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
10
Rotational speed maximum (RPMX)
10700
Shank
Shell mill DIN 8030 A
Face mill with double positive geometry which utilises 4 off OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 2.000 to maximum 2.402'' with 43° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of .130 (.390)''
