Pramet 250A06R-IS90LN12-C shell milling cutter body, square shoulder, 2.5 in cutting diameter, 6 inserts, 90° approach angle, 0.75 in connection bore, DIN 8030-A, right hand, through coolant, 0.354 in max depth of cut. Article 6793020.
MODEL 6793020
$656.01 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-6
Clamping Type Code (MTP)
Screw clamping through hole

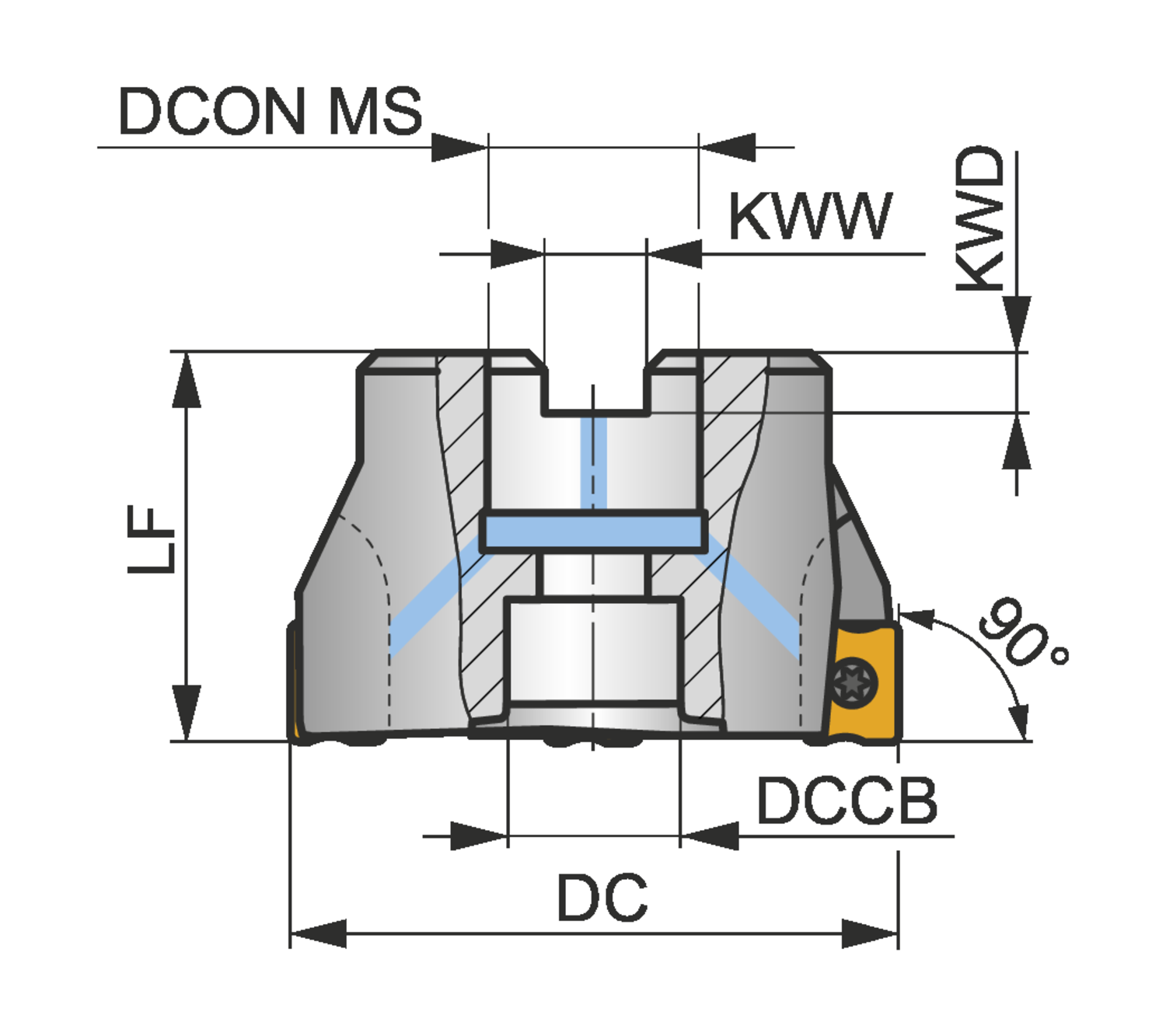

Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.63
Counterbore diameter connection bore - millimeter (DCCB)
16
Cutting diameter - inch (DC)
2.5
Cutting diameter - millimeter (DC)
63.5
Cutting pitch differential (CPDF)
1
Functional length - inch (LF)
1.575
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.193
Keyway width - inch (KWW)
0.321
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-14
Rotational speed maximum (RPMX)
12300
Shank
Shell mill DIN 8030 A
Shoulder mill with double negative geometry which utilises 6 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 2.500'' with 90° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .354''
