Pramet 25A2R043E03-SAD16E-C end milling cutter, square shoulder, 0.984 in cutting diameter, 0.512 in maximum depth of cut, 2 inserts, Morse shank DIN 228-1, right hand, through coolant. Article 6758505.
MODEL 6758505
$349.60 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

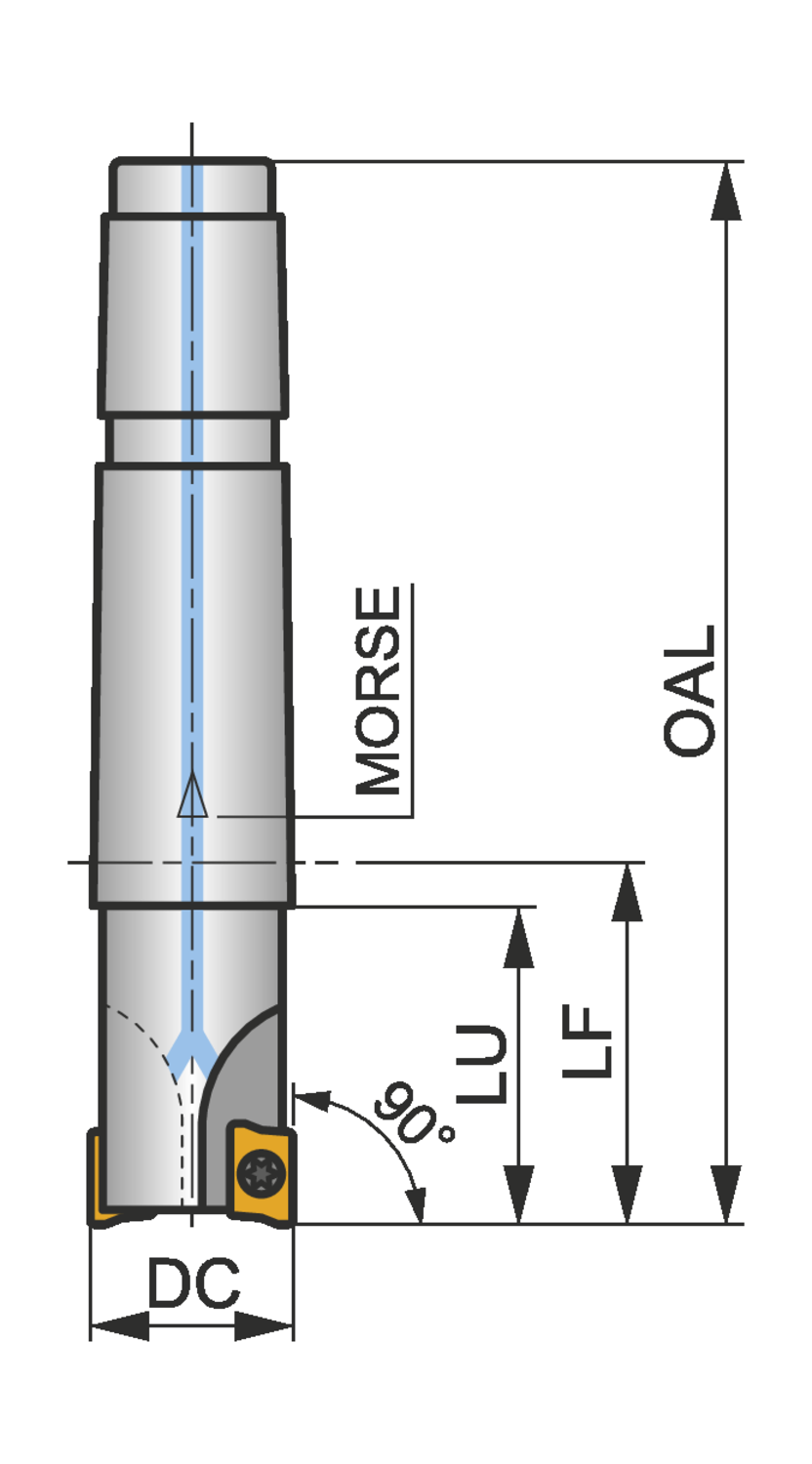

Axial rake angle (GAMP)
5
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
3
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.984
Cutting diameter - millimeter (DC)
25
Functional length - millimeter (LF)
43
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
3.858
Overall length - millimeter (OAL)
98
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-13
Rotational speed maximum (RPMX)
18600
Shank
Morse shank DIN 228-1
Usable Length - millimeter (LU)
38
Shoulder mill with positve/negative geometry which utilises 2 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 25mm with 90° approach angle and MT 3 morse taper shank according to DIN 228-1A, 38mm functional and 98mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm
