Pramet 800C10R-IS45HN09CF 6790772 Shell Milling Cutter - Face
MODEL 6790772
$1,705.82 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

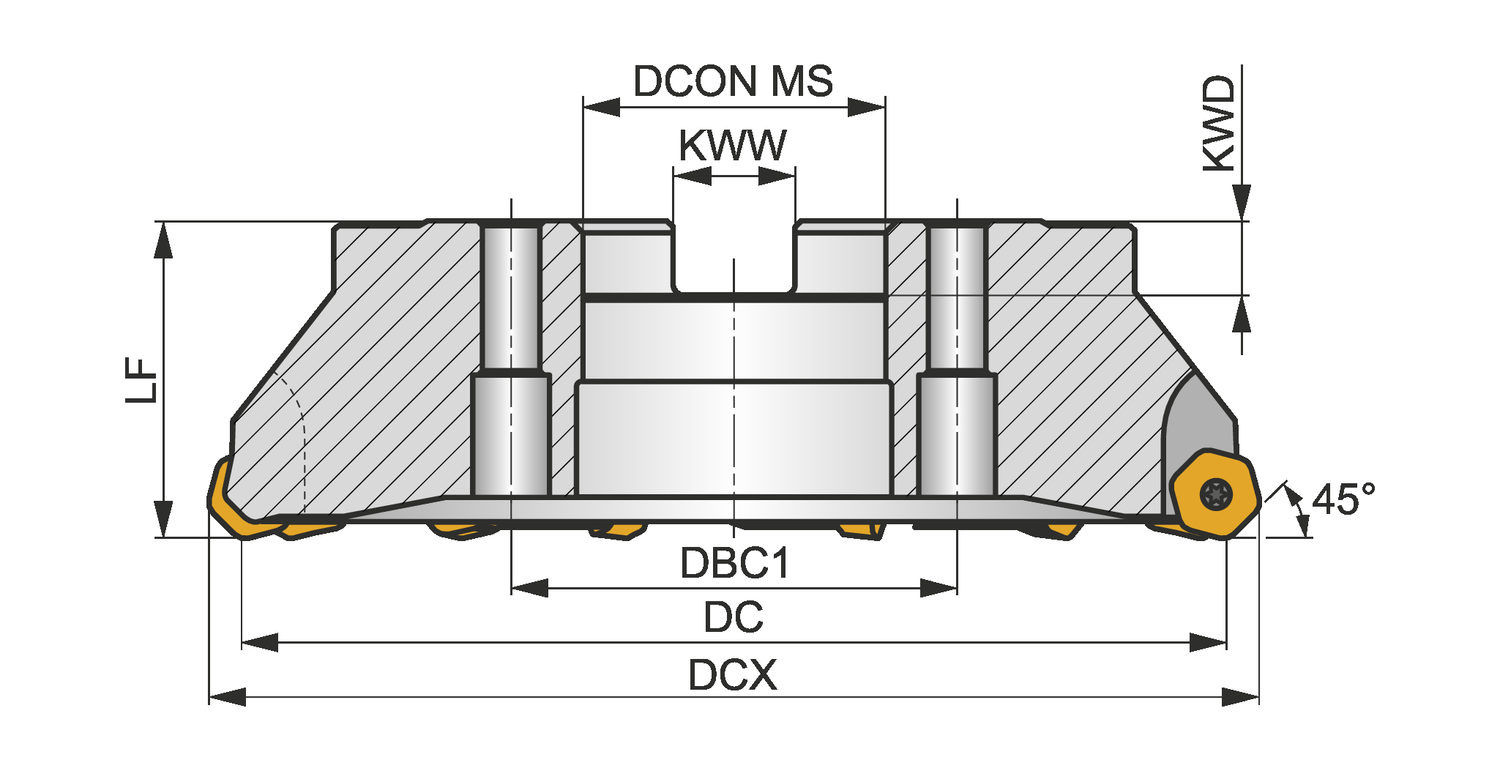

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection bore diameter - inch (DCB)
2.5
Coolant supply property (CSP)
0
Cutting diameter - inch (DC)
8
Cutting diameter - millimeter (DC)
203.2
Cutting diameter maximum - inch (DCX)
8.461
Cutting diameter maximum - millimeter (DCX)
214.9
Cutting pitch differential (CPDF)
1
Diameter bolt circle 1 - inch (DBC1)
4
Functional length - inch (LF)
2.48
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.559
Keyway width - inch (KWW)
1
Peripheral effective cutting edge count (ZEFP)
10
Radial rake angle (GAMF)
-7
Rotational speed maximum (RPMX)
3900
Shank
Shell mill DIN 8030 C
Face mill with double negative geometry which utilises 10 off HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 8.000 to maximum 8.461'' with 45° approach angle and 2.500'' connection bore according to DIN 8030-C, 2.480'' protrusion length, through coolant for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of .197''
