Pramet 80A10R-S90AD11E-C shell milling cutter body, square shoulder, 3.15 in (80 mm) cutting diameter, 0.354 in maximum depth of cut, 10 inserts, 90° cutting edge angle, right hand, screw clamping through hole, DIN 8030 A connection, through coolant, differential pitch. Article 6760204.
MODEL 6760204
$762.94 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

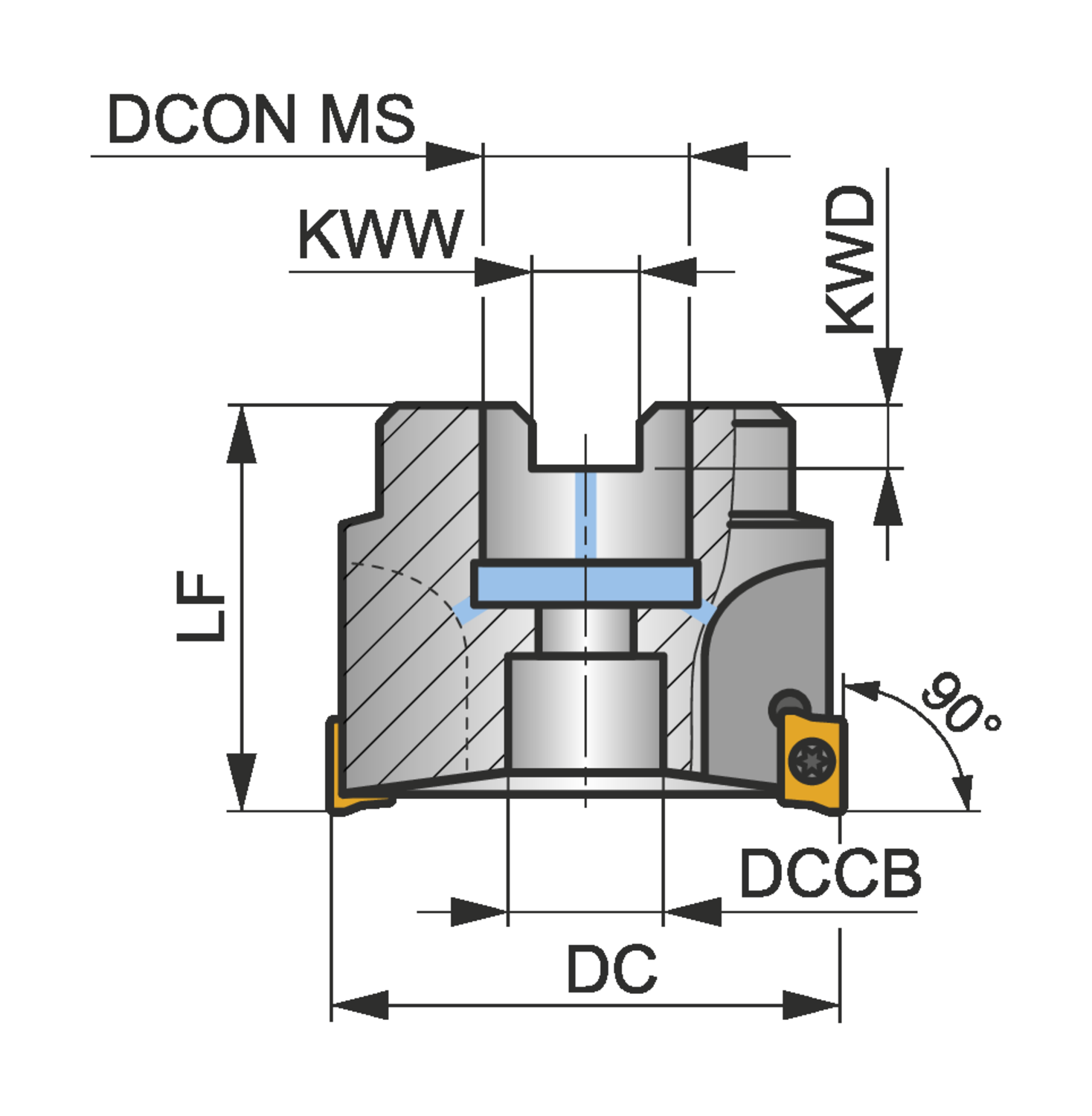

Axial rake angle (GAMP)
12
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.496
Counterbore diameter connection bore - millimeter (DCCB)
38
Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
10
Keyway depth - millimeter (KWD)
7
Keyway width - millimeter (KWW)
12.4
Peripheral effective cutting edge count (ZEFP)
10
Radial rake angle (GAMF)
-6
Rotational speed maximum (RPMX)
13500
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 10 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 80mm with 90° approach angle and 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm
