Pramet 80J2R190H50-SLSN134-C 6760431 Helical End Milling Cutter - Heavy Duty
MODEL 6760431
$2,717.59 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
50
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Depth of cut maximum - millimeter (APMX)
134
Flute count (NOF)
4
Functional length - millimeter (LF)
190
Hand (Cutting direction)
Right
Insert index count (NOI)
28
Overall length - inch (OAL)
11.496
Overall length - millimeter (OAL)
292
Radial rake angle (GAMF)
-9
Rotational speed maximum (RPMX)
7500
Shank
Arbor DIN 69871-1

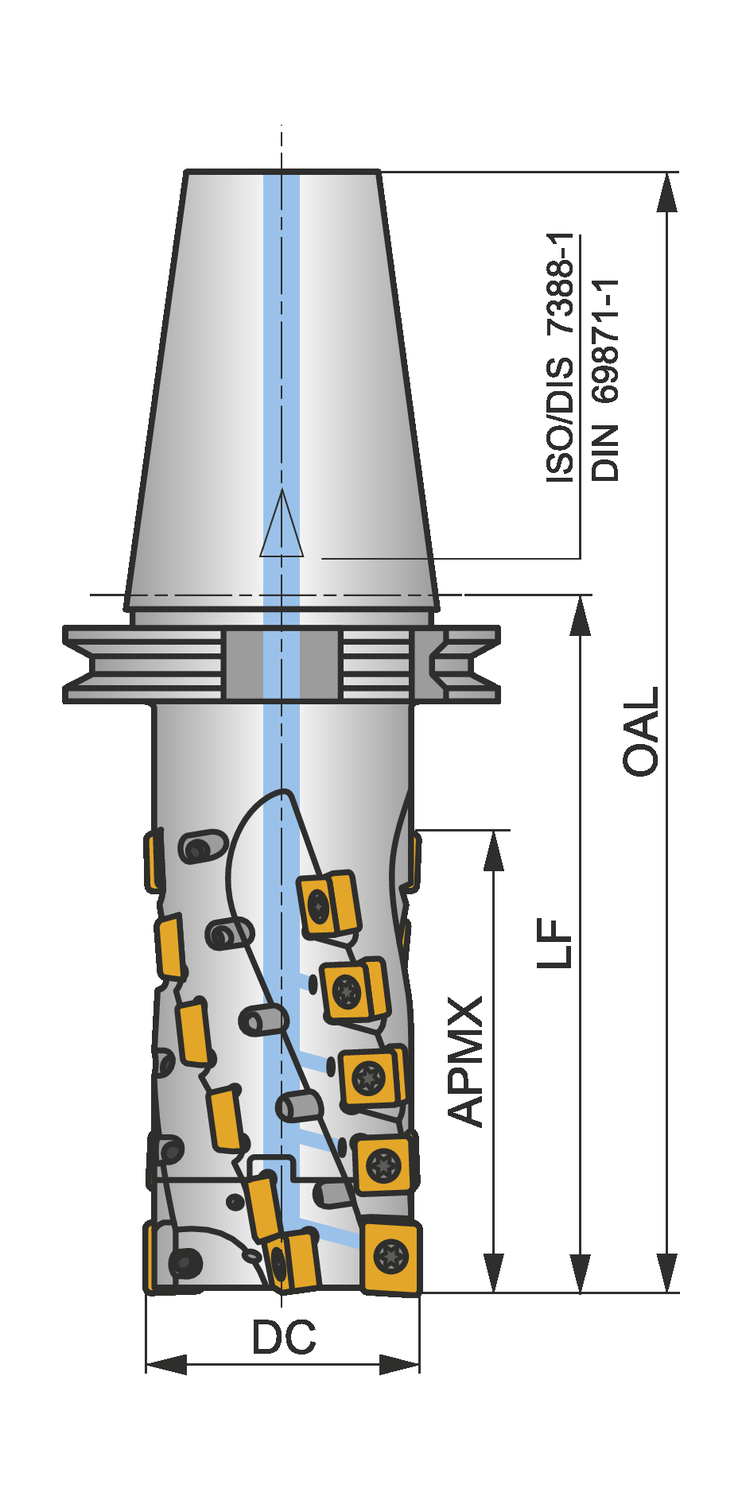

Shoulder mill with extended flute with double negative geometry which utilises 2 off LNET 1606.. and 26 SN.. 1305.. double-sided inserts, cutting diameter 80mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 134mm functional and 292mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 134mm
