Pramet 075E3R157C075-ISBN10-C 7455291 End Milling Cutter - High Feed
MODEL 7455291
$338.29 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

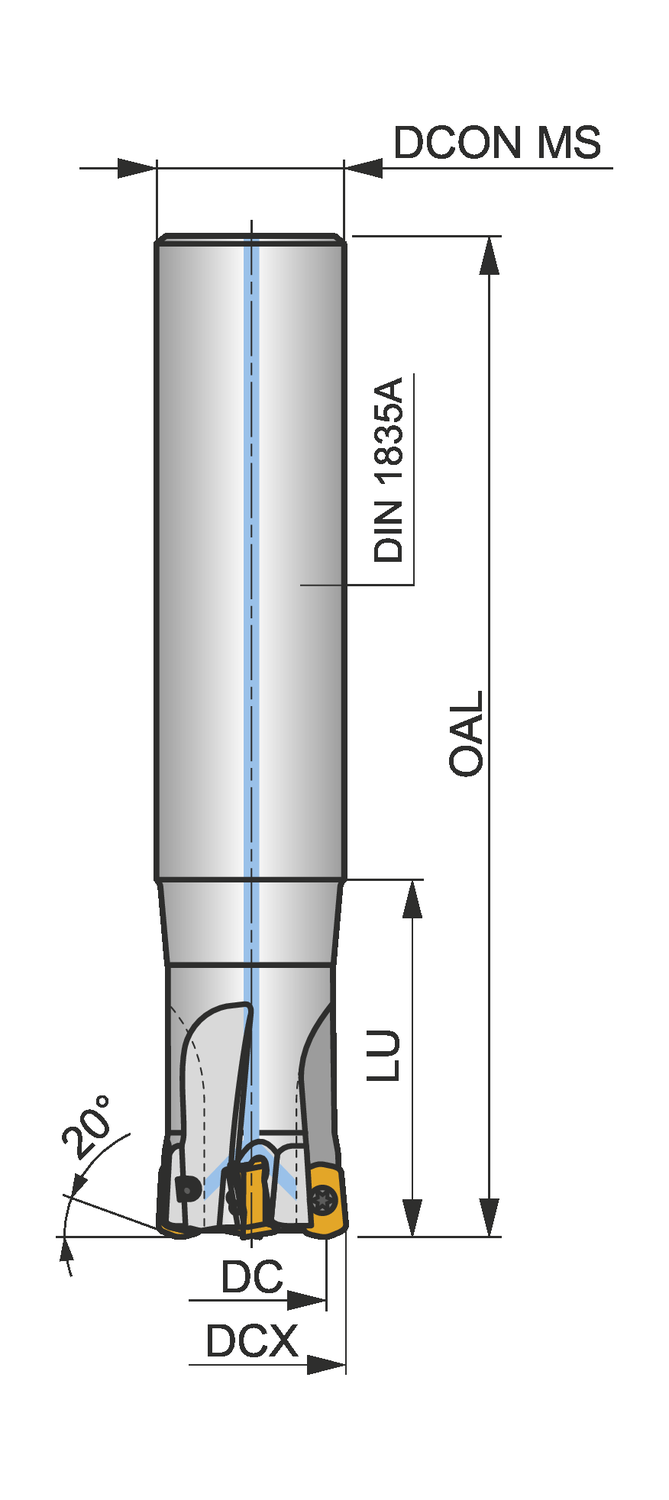

Axial rake angle (GAMP)
-10.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.49
Cutting diameter - millimeter (DC)
12.4
Cutting diameter maximum - inch (DCX)
0.75
Cutting diameter maximum - millimeter (DCX)
19.1
Hand (Cutting direction)
Right
Overall length - inch (OAL)
5.118
Overall length - millimeter (OAL)
130
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-10
Rotational speed maximum (RPMX)
28400
Shank
Cylindrical shank DIN 1835A
Tool cutting edge angle (KAPR)
20
Usable Length - inch (LU)
1.575
High feed cutter with double negative geometry which utilises 3 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter .75'' with 20° approach angle and .75'' parallel shank according to DIN 1835A, 1.575'' functional and 5.118'' overall length, through coolant for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039''
