Pramet 802D-17-34-S25 6820736 Indexable Drill 2 x D
MODEL 6820736
$432.88 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

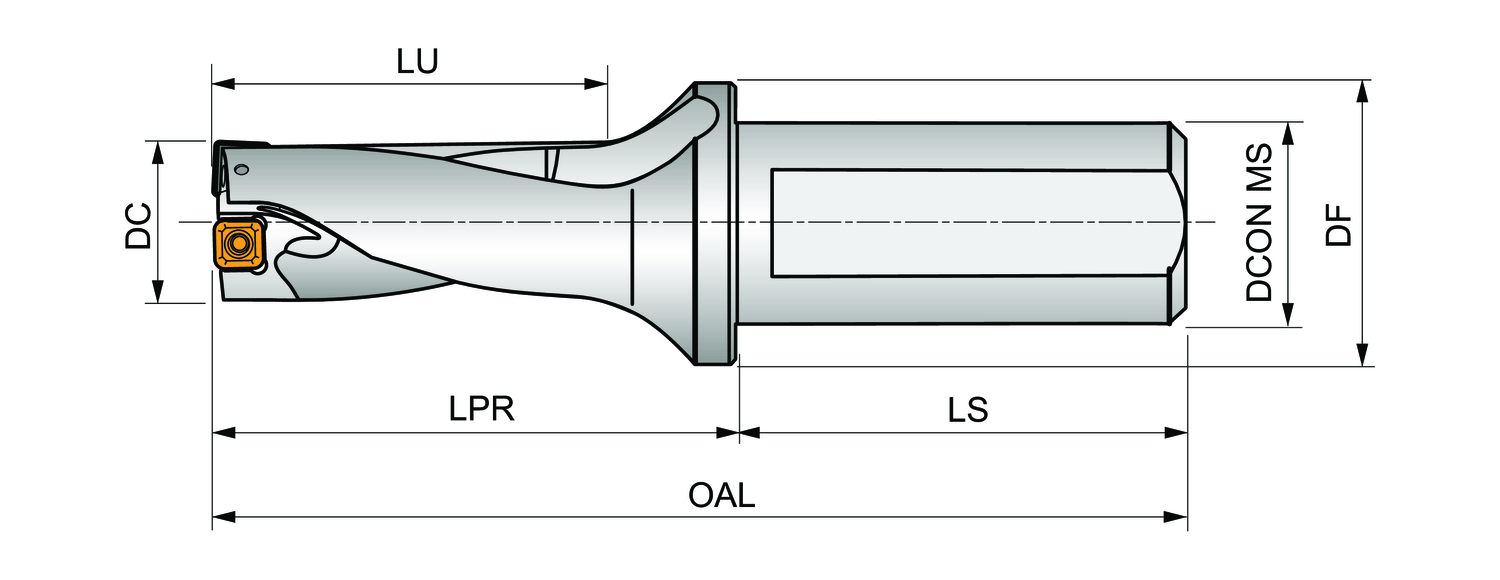

Adjustment limit maximum - millimeter (ADJLX)
0.5
Adjustment limit minimum - millimeter (ADJLN)
0.1
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Connection diameter tolerance machine side (TCDCONMS)
h6
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.669
Cutting diameter - millimeter (DC)
17
Cutting edge count (CEDC)
1
Depth of cut maximum - inch (APMX)
1.3386
Depth of cut maximum - millimeter (APMX)
34
Flange diameter - millimeter (DF)
35
Overall length - inch (OAL)
4.921
Overall length - millimeter (OAL)
125
Protruding length - inch (LPR)
2.7165
Protruding length - millimeter (LPR)
69
Shank
Cylindrical Shank ISO 9766
Shank length - inch (LS)
2.2047
Shank length - millimeter (LS)
56
Usable length (ULDR)
2
Usable Length - inch (LU)
1.5551
Usable Length - millimeter (LU)
395
Indexable insert drill which utilises an XPET 0502.. insert in the central pocket and a SCET 0502.. insert in the peripheral pocket, cutting diameter 17mm in combination with EP253253, suited for a radial adjustment of -0.10 to +0.50mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D
