Pramet 803D-0656-196-S100 6801122 Indexable Drill 3 x D
MODEL 6801122
$439.05 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

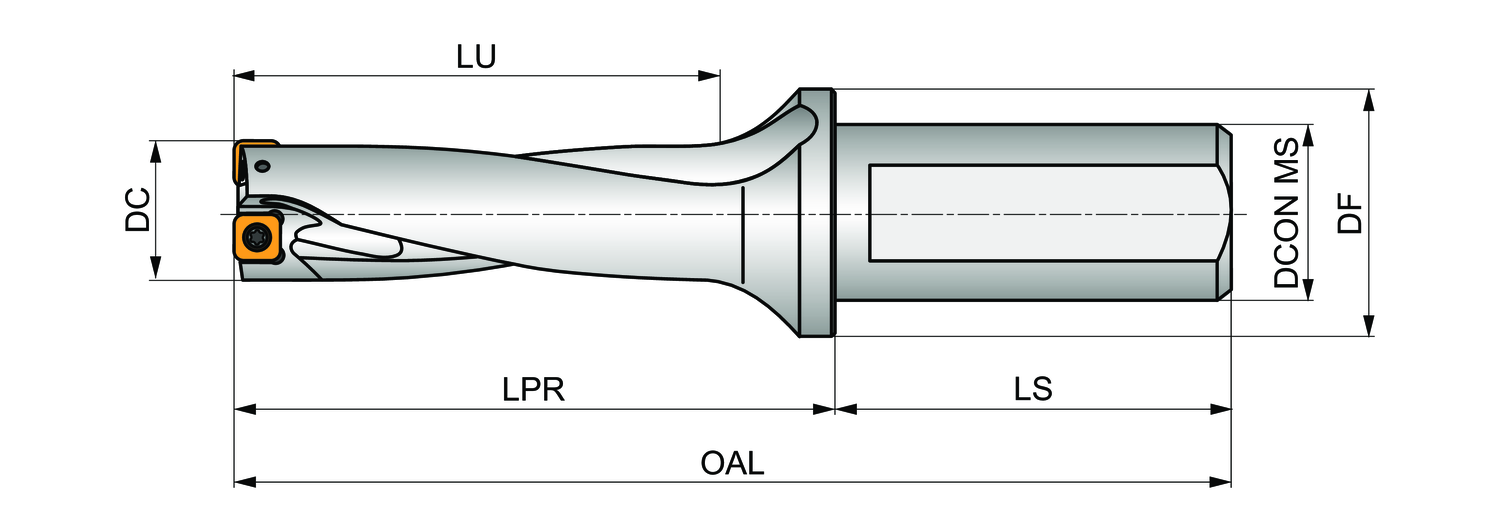

Adjustment limit maximum - inch (ADJLX)
0.016
Adjustment limit minimum - inch (ADJLN)
0.006
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1
Connection diameter - millimeter (DCON MS)
25.4
Connection diameter tolerance machine side (TCDCONMS)
h6
Cooling (CSP)
1
Cutting diameter - inch (DC)
0.656
Cutting diameter - millimeter (DC)
16.7
Depth of cut maximum - inch (APMX)
1.969
Overall length - inch (OAL)
5.197
Overall length - millimeter (OAL)
132
Protruding length - inch (LPR)
2.953
Shank
Cylindrical Shank ISO 9766
Shank length - inch (LS)
2.244
Usable length (ULDR)
3
Usable Length - inch (LU)
2.157
Indexable insert drill which utilises an XPET 0502.. insert in the central pocket and a SCET 0502.. insert in the peripheral pocket, cutting diameter 0.656'', with a 1.000'' cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D
