Pramet 805D-24-120-S25 6759014 Indexable Drill 5 x D
MODEL 6759014
$584.03 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

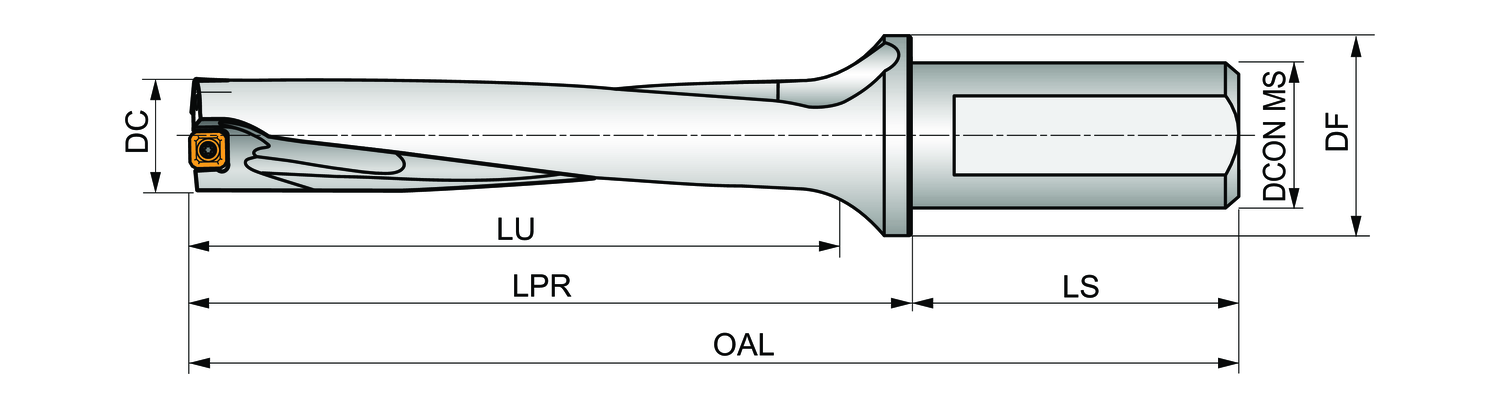

Adjustment limit maximum - millimeter (ADJLX)
0.5
Adjustment limit minimum - millimeter (ADJLN)
0.15
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Connection diameter tolerance machine side (TCDCONMS)
h6
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.945
Cutting diameter - millimeter (DC)
24
Cutting edge count (CEDC)
1
Depth of cut maximum - inch (APMX)
4.7244
Depth of cut maximum - millimeter (APMX)
120
Flange diameter - millimeter (DF)
35
Overall length - inch (OAL)
7.913
Overall length - millimeter (OAL)
201
Protruding length - inch (LPR)
5.7087
Protruding length - millimeter (LPR)
145
Shank
Cylindrical Shank ISO 9766
Shank length - inch (LS)
2.2047
Shank length - millimeter (LS)
56
Usable length (ULDR)
5
Usable Length - inch (LU)
5
Usable Length - millimeter (LU)
127
Indexable insert drill which utilises an XPET 0703.. insert in the central pocket and a SCET 0703.. insert in the peripheral pocket, cutting diameter 24mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 5 x D
