Image for Illustration purposes only. Actual product may vary
Pramet SCET 150512-UD:D9335 6754585 Indexable Drill Insert
MODEL 6754585
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.52 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
UD
Coating
D9335
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended

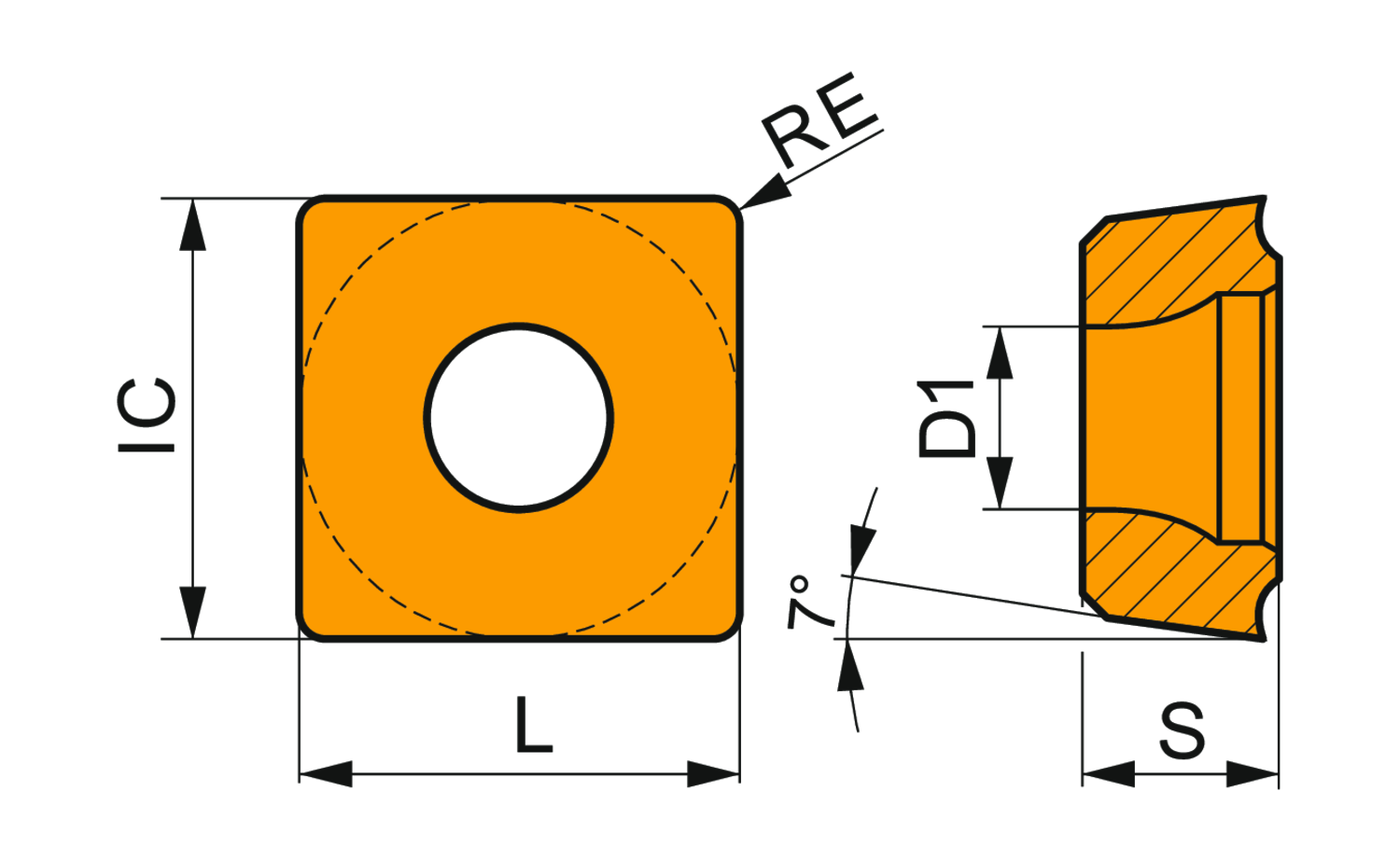

Corner radius - inch (RE)
0.047
Corner radius - millimeter (RE)
1.2
Cutting edge length - inch (L)
0.625
Cutting edge length - millimeter (L)
15.875
Feed maximal - millimeter
0.25
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.01
Feed_MIN_IMP_NUM
0.004
Fixing hole diameter - inch (D1)
0.22
Fixing hole diameter - millimeter (D1)
5.6
Inscribed circle diameter - inch (IC)
0.625
Inscribed circle diameter - millimeter (IC)
15.875
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.219
Insert thickness - millimeter (S)
5.56
Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 45 up to 58mm, D9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P35 and K15-K35 with UD geometry for machining of steel and cast-iron
